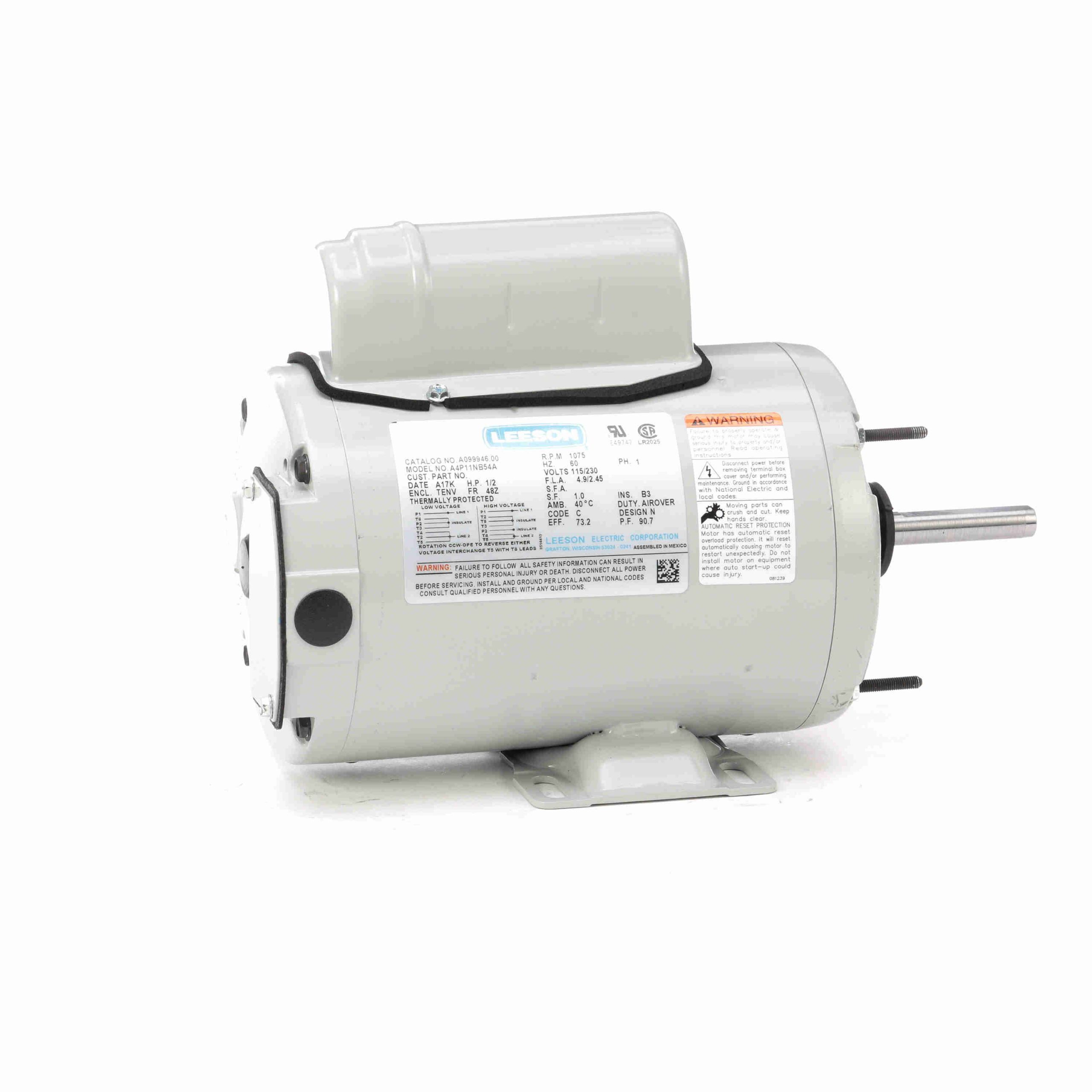

A099946.00 – Leeson 0.50 HP Agricultural Motor, 1 phase, 1200 RPM, 115/230 V, 48Z Frame, TEAO – A099946.00
A099946.00 Leeson Agricultural Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720102947 |
Weight: |
26.00 LB |
| Packaged Length: |
15.82 IN |
Packaged Width: |
12.56 IN |
| Packaged Height: |
9.38 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
4.9/2.5 A |
Speed: |
1075 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
73.2 % |
Power Factor: |
90.7 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
C |
| Frame: |
48Z |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic Lock Rotor Only |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Mounting: |
Rigid base |
Motor Orientation: |
HORIZONTAL |
| Drive End Bearing: |
BALL |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Single Special Extension |
| Overall Length: |
11.90 in |
Frame Length: |
6.75 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
2.24 in |
| Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
5.65 |
|
68.50 |
|
893 |
1.13 |
|
0.50 |
| Locked-Rotor |
8.40 |
|
20.20 |
|
0 |
1.48 |
|
0.50 |
| Pull-Up |
8.35 |
|
19.60 |
|
30 |
1.48 |
|
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
1.11 |
1.29 |
1.59 |
1.97 |
2.45 |
3.06 |
4.15 |
| Rated Output (KW) |
0.13 |
0.22 |
0.30 |
0.40 |
0.51 |
0.64 |
0.86 |
| Efficiency (%) |
0.0 |
43.7 |
61.6 |
69.9 |
73.2 |
72.8 |
65.1 |
| Power Factor (%) |
52.1 |
72.8 |
83.1 |
88.3 |
90.7 |
91.2 |
90.1 |
| Speed (RPM) |
1,200 |
1,182 |
1,165 |
1,146 |
1,121 |
1,090 |
1,021 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
9.00 |
18.10 |
27.50 |
37.60 |
48.30 |
61.80 |
