Description

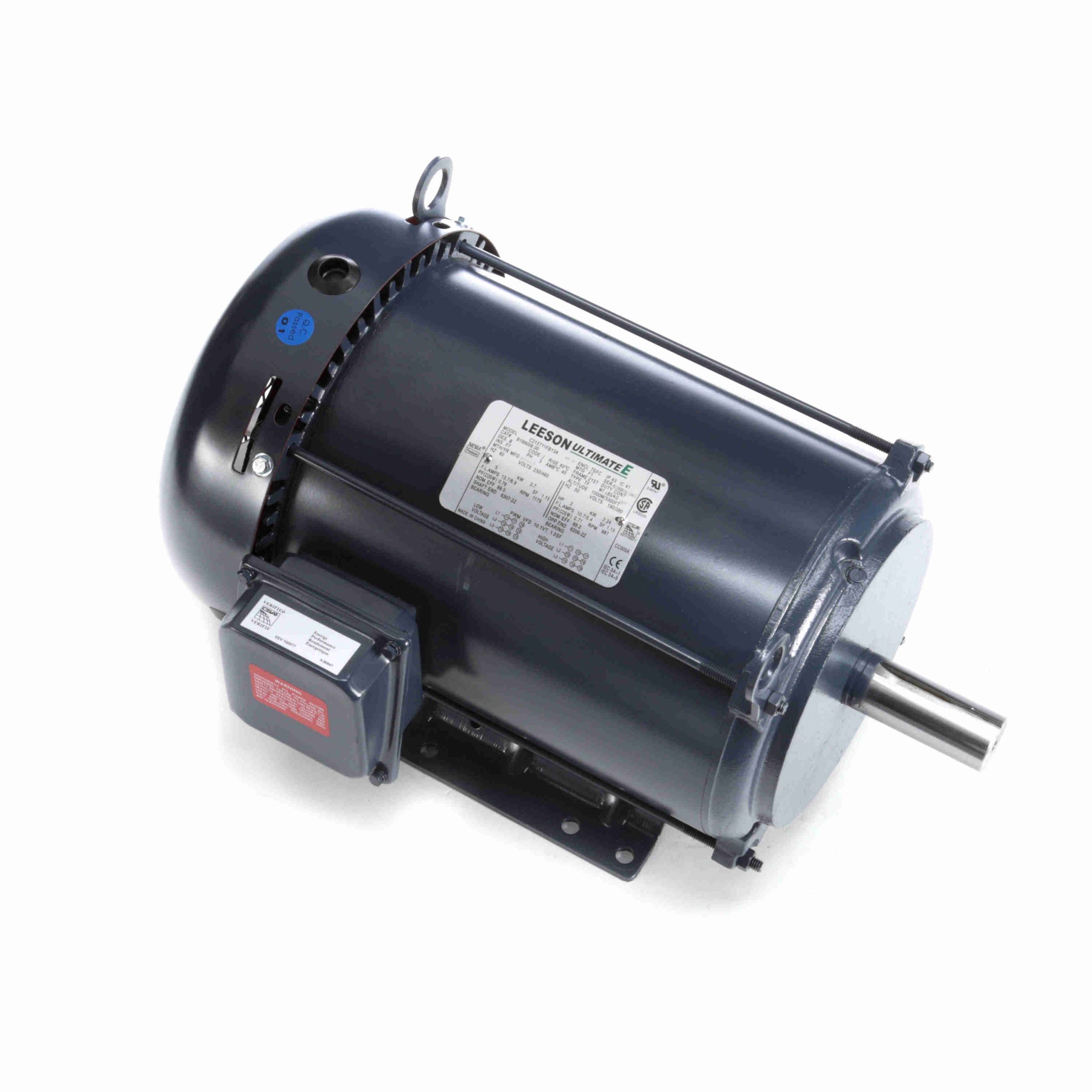

B199008.00 – Leeson 5 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 215T Frame, TEFC – B199008.00
B199008.00 Leeson Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720044469 |
Weight: |
185 LB |
| Packaged Length: |
22.63 IN |
Packaged Width: |
16.13 IN |
| Packaged Height: |
14.25 IN |
Nameplate Specifications
| Output HP: |
5 Hp |
Output KW: |
3.7 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
13.7/6.9 A |
Speed: |
1179 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
89.5 % |
Power Factor: |
76 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
J |
| Frame: |
215T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
2.656 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
19.95 in |
| Frame Length: |
11.15 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
3.20 |
47.0 |
0.00 |
0.0 |
1,200 |
0.00 |
6.0 |
5.00 |
| Full Load |
6.80 |
100.0 |
22.30 |
100.0 |
1,180 |
0.00 |
77.0 |
5.00 |
| Pull-Up |
41.00 |
603.0 |
35.00 |
157.0 |
600 |
0.00 |
0.0 |
5.00 |
| 2/3 |
37.00 |
544.0 |
43.00 |
193.0 |
800 |
0.00 |
0.0 |
5.00 |
| Break-Down |
23.00 |
338.0 |
62.50 |
280.0 |
1,075 |
0.00 |
65.0 |
5.00 |
| Locked-Rotor |
48.00 |
706.0 |
41.00 |
184.0 |
0 |
0.00 |
45.0 |
5.00 |
| 1/3 |
44.00 |
647.0 |
34.00 |
152.0 |
400 |
0.00 |
0.0 |
5.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
3.20 |
3.50 |
4.30 |
5.40 |
6.80 |
7.70 |
8.40 |
| Rated Output (KW) |
0.30 |
1.10 |
2.10 |
3.10 |
4.20 |
4.80 |
5.30 |
| Efficiency (%) |
0.0 |
84.9 |
88.5 |
90.1 |
89.0 |
89.4 |
88.1 |
| Power Factor (%) |
11.8 |
39.4 |
61.3 |
72.1 |
77.5 |
78.2 |
79.2 |
| Speed (RPM) |
1,200 |
1,195 |
1,190 |
1,185 |
1,180 |
1,175 |
1,170 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
45.0 |
60.0 |
75.0 |
| Torque (ft-lbs) |
0.00 |
5.50 |
11.00 |
16.60 |
22.30 |
25.70 |
28.10 |
