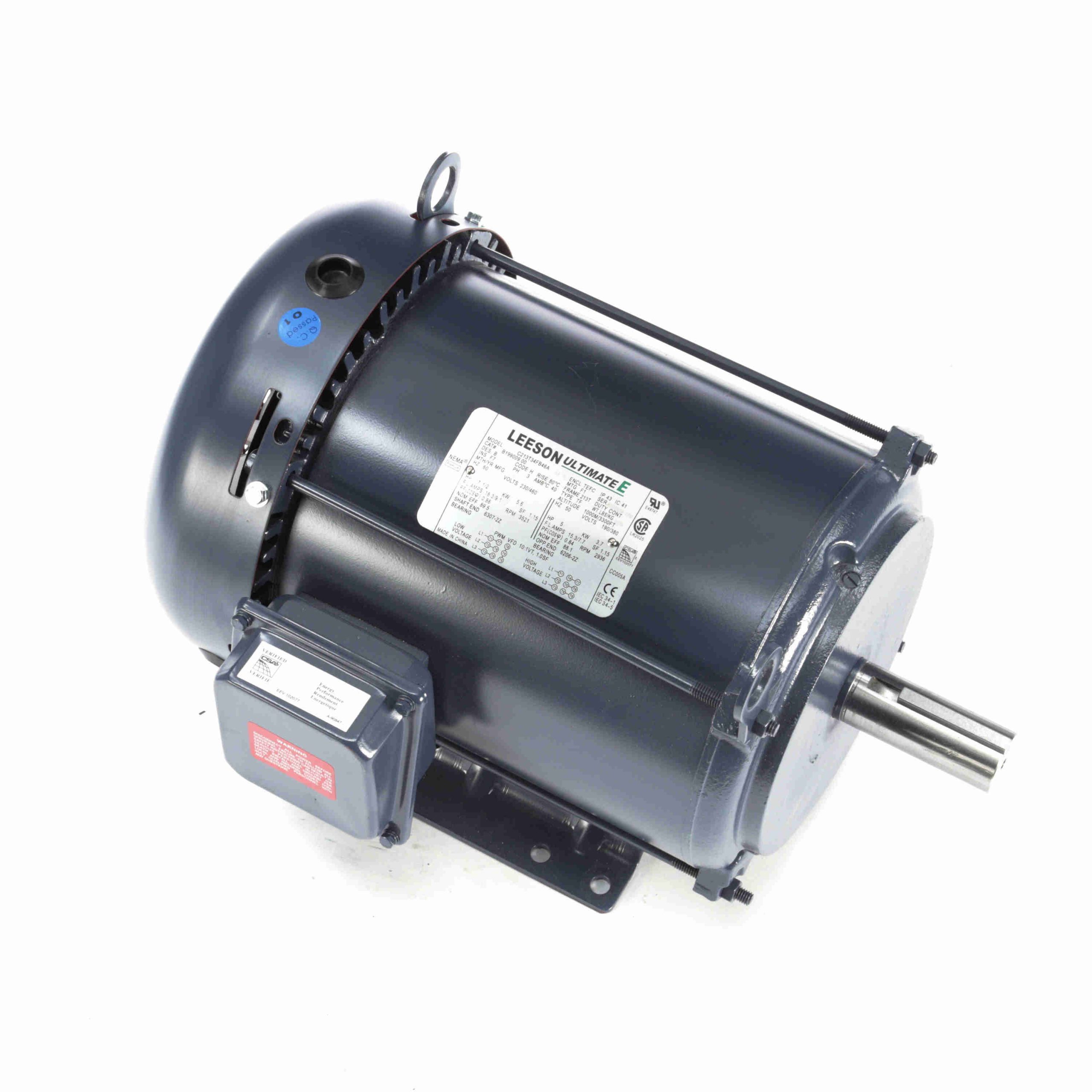

B199009.00 – Leeson 7.50 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 213T Frame, TEFC – B199009.00
B199009.00 Leeson Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720044476 |
Weight: |
136 LB |
| Packaged Length: |
22.19 IN |
Packaged Width: |
16.5 IN |
| Packaged Height: |
14 IN |
Nameplate Specifications
| Output HP: |
7.50 Hp |
Output KW: |
5.6 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
18.4/9.2 A |
Speed: |
3520 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
89.5 % |
Power Factor: |
84.6 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
H |
| Frame: |
213T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
1.635 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
18.35 in |
| Frame Length: |
9.65 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
3.60 |
39.0 |
0.00 |
0.0 |
3,600 |
0.00 |
11.0 |
7.50 |
| 1/3 |
55.00 |
598.0 |
17.00 |
152.0 |
1,200 |
0.00 |
0.0 |
7.50 |
| Locked-Rotor |
60.00 |
652.0 |
20.00 |
179.0 |
0 |
0.00 |
44.0 |
7.50 |
| 2/3 |
46.00 |
500.0 |
22.00 |
196.0 |
2,400 |
0.00 |
0.0 |
7.50 |
| Pull-Up |
51.00 |
554.0 |
17.50 |
156.0 |
1,800 |
0.00 |
0.0 |
7.50 |
| Full Load |
9.20 |
100.0 |
11.20 |
100.0 |
3,520 |
0.00 |
86.5 |
7.50 |
| Break-Down |
34.00 |
370.0 |
32.00 |
286.0 |
3,145 |
0.00 |
74.0 |
7.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
3.60 |
4.20 |
5.50 |
7.20 |
9.20 |
10.40 |
11.30 |
| Rated Output (KW) |
0.35 |
1.70 |
3.20 |
4.70 |
6.20 |
7.20 |
7.90 |
| Efficiency (%) |
0.0 |
83.8 |
86.9 |
89.9 |
90.3 |
89.3 |
88.7 |
| Power Factor (%) |
12.2 |
50.8 |
73.0 |
81.9 |
84.6 |
86.9 |
87.7 |
| Speed (RPM) |
3,600 |
3,580 |
3,560 |
3,542 |
3,520 |
3,508 |
3,498 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
60.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
2.80 |
5.50 |
8.40 |
11.20 |
12.90 |
14.10 |
