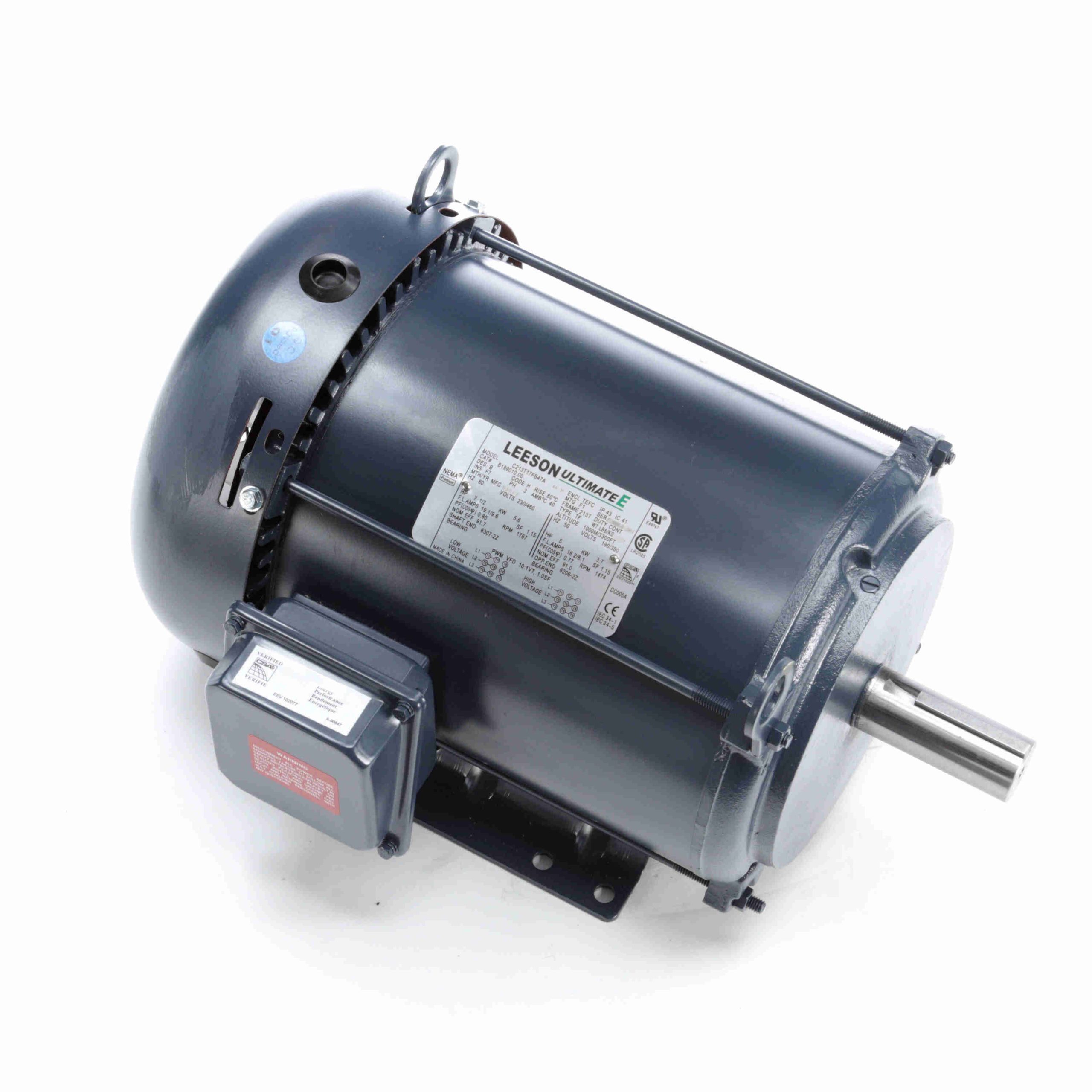

B199010.00 – Leeson 7.50 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 213T Frame, TEFC – B199010.00
B199010.00 Leeson Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720044483 |
Weight: |
158 LB |
| Packaged Length: |
22.19 IN |
Packaged Width: |
16.5 IN |
| Packaged Height: |
14 IN |
Nameplate Specifications
| Output HP: |
7.50 Hp |
Output KW: |
5.6 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
19.0/9.5 A |
Speed: |
1768 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
91.7 % |
Power Factor: |
80 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
H |
| Frame: |
213T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
1.473 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
18.35 in |
| Frame Length: |
9.65 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
4.60 |
48.0 |
0.00 |
0.0 |
1,800 |
0.00 |
6.0 |
7.50 |
| Break-Down |
35.00 |
368.0 |
59.00 |
265.0 |
1,580 |
0.00 |
68.0 |
7.50 |
| 1/3 |
59.00 |
621.0 |
37.50 |
168.0 |
600 |
0.00 |
0.0 |
7.50 |
| Pull-Up |
56.00 |
589.0 |
38.00 |
170.0 |
900 |
0.00 |
0.0 |
7.50 |
| 2/3 |
51.00 |
537.0 |
47.00 |
211.0 |
1,200 |
0.00 |
0.0 |
7.50 |
| Full Load |
9.50 |
100.0 |
22.30 |
100.0 |
1,768 |
0.00 |
80.0 |
7.50 |
| Locked-Rotor |
62.00 |
653.0 |
45.00 |
202.0 |
0 |
0.00 |
43.0 |
7.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
4.60 |
5.00 |
6.10 |
7.70 |
9.50 |
10.80 |
11.60 |
| Rated Output (KW) |
0.45 |
1.60 |
3.10 |
4.50 |
6.00 |
7.10 |
7.60 |
| Efficiency (%) |
0.0 |
87.5 |
90.0 |
93.0 |
93.3 |
90.2 |
92.0 |
| Power Factor (%) |
12.3 |
40.2 |
63.8 |
73.4 |
79.3 |
82.5 |
82.2 |
| Speed (RPM) |
1,800 |
1,792 |
1,785 |
1,775 |
1,768 |
1,762 |
1,758 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
50.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
5.50 |
11.00 |
16.60 |
22.30 |
25.60 |
28.00 |
