Description

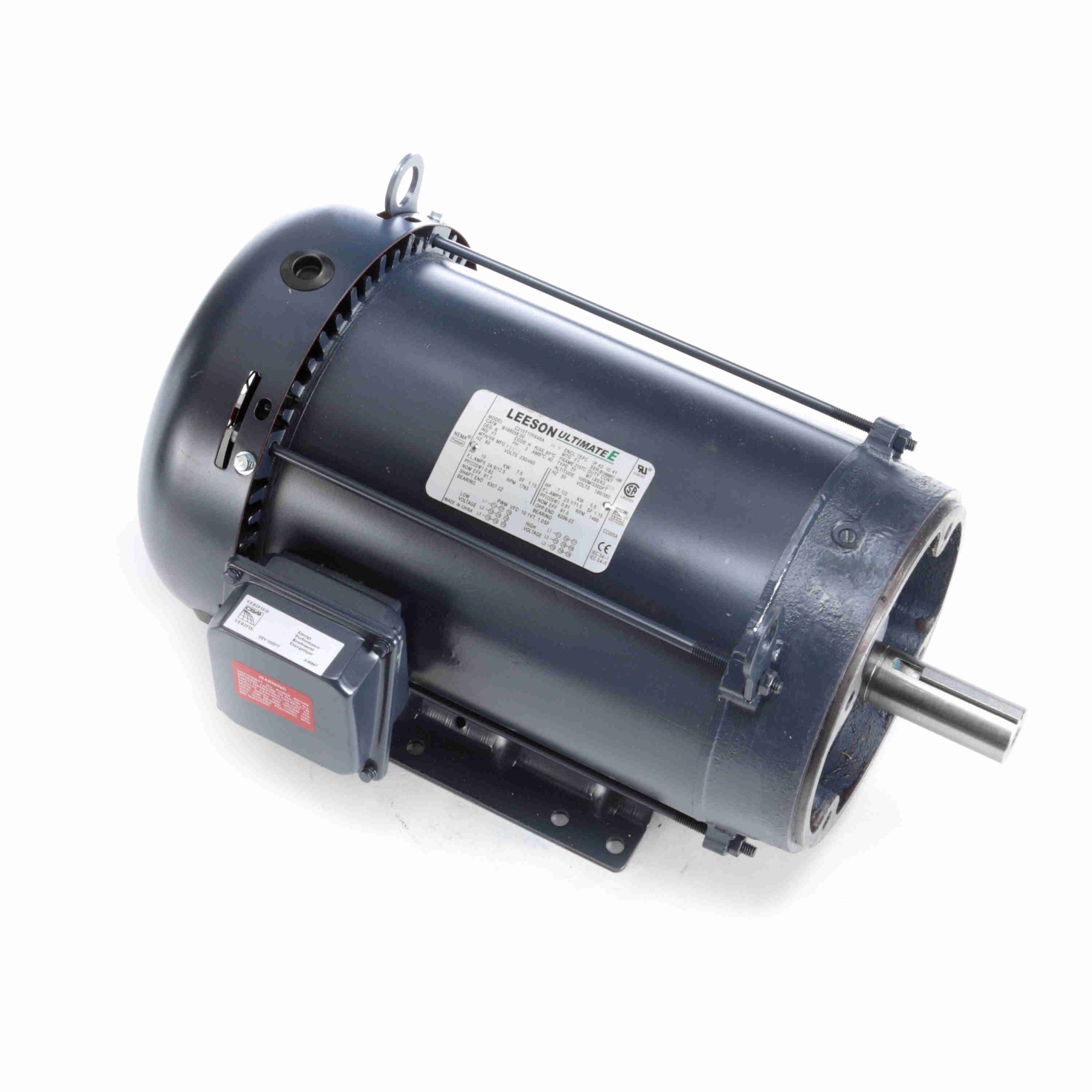

B199058.00 – Leeson 10 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 215TC Frame, TEFC – B199058.00
B199058.00 Leeson Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720044711 |
Weight: |
165 LB |
| Packaged Length: |
22.63 IN |
Packaged Width: |
16.13 IN |
| Packaged Height: |
14.25 IN |
Nameplate Specifications
| Output HP: |
10 Hp |
Output KW: |
7.5 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
25.0/12.5 A |
Speed: |
1762 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
91.7 % |
Power Factor: |
81.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
H |
| Frame: |
215TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
1.155 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
20.70 in |
| Frame Length: |
11.15 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
12.50 |
100.0 |
29.80 |
100.0 |
1,762 |
0.00 |
81.5 |
10.00 |
| Locked-Rotor |
79.00 |
632.0 |
59.00 |
198.0 |
0 |
0.00 |
44.0 |
10.00 |
| Break-Down |
45.00 |
360.0 |
74.00 |
248.0 |
1,565 |
0.00 |
68.0 |
10.00 |
| No Load |
6.00 |
48.0 |
0.00 |
0.0 |
1,800 |
0.00 |
6.0 |
10.00 |
| 2/3 |
65.00 |
520.0 |
62.00 |
208.0 |
1,200 |
0.00 |
0.0 |
10.00 |
| Pull-Up |
73.00 |
584.0 |
51.00 |
171.0 |
900 |
0.00 |
0.0 |
10.00 |
| 1/3 |
76.00 |
608.0 |
49.00 |
164.0 |
600 |
0.00 |
0.0 |
10.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
5.60 |
6.20 |
7.80 |
10.00 |
12.50 |
14.30 |
15.50 |
| Rated Output (KW) |
0.40 |
2.10 |
4.10 |
6.10 |
8.10 |
9.50 |
10.40 |
| Efficiency (%) |
0.0 |
88.5 |
90.8 |
91.6 |
92.1 |
90.3 |
89.5 |
| Power Factor (%) |
9.0 |
42.5 |
66.0 |
76.6 |
81.3 |
83.4 |
84.2 |
| Speed (RPM) |
1,800 |
1,792 |
1,782 |
1,772 |
1,762 |
1,756 |
1,752 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
70.0 |
90.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
7.30 |
14.70 |
22.20 |
29.80 |
34.40 |
37.40 |
