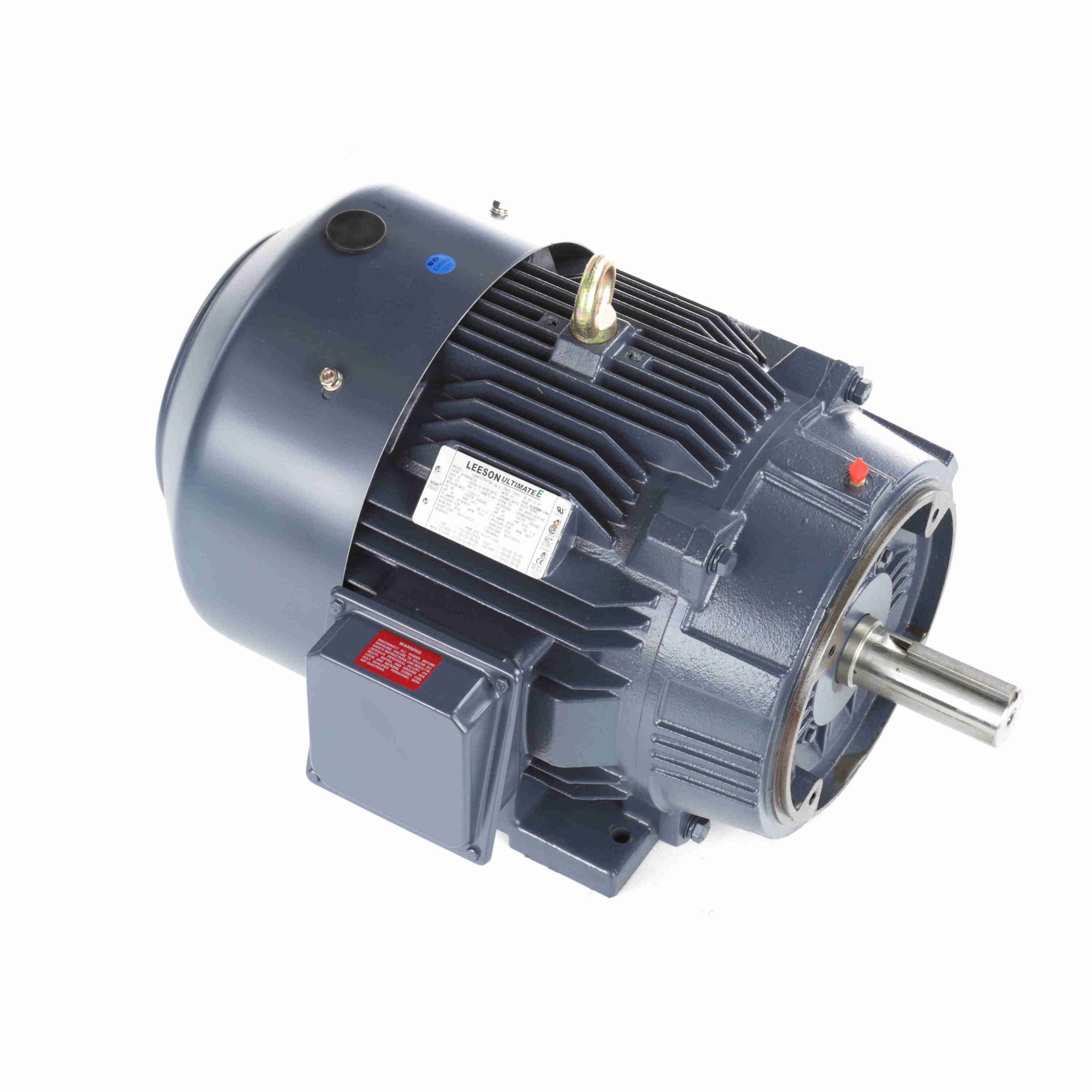

| UPC: | 691720044773 | Weight: | 413 LB |
| Packaged Length: | 28.5 IN | Packaged Width: | 26.4 IN |
| Packaged Height: | 17.5 IN |
| Output HP: | 25 Hp | Output KW: | 18.7 kW |
| Frequency: | 60/50 Hz | Voltage: | 230/460 V |
| Current: | 61.0/30.5 A | Speed: | 1775 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 93.6 % | Power Factor: | 83 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Frame: | 284TC | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6311 | Opp Drive End Bearing Size: | 6211 |
| UL: | Listed | CSA: | Y |
| CE: | Y | IP Code: | 55 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Wye Start Delta Run Or Inverter |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | .2988 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 26.65 in |
| Frame Length: | 11.41 in | Shaft Diameter: | 1.875 in |
| Shaft Extension: | 4 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 150.00 | 493.0 | 122.00 | 165.0 | 900 | 25.00 | ||
| 2/3 | 138.00 | 454.0 | 152.00 | 205.0 | 1,200 | 25.00 | ||
| Full Load | 30.40 | 100.0 | 74.00 | 100.0 | 1,772 | 83.0 | 25.00 | |
| Locked-Rotor | 182.00 | 599.0 | 144.00 | 195.0 | 0 | 36.0 | 25.00 | |
| No Load | 13.60 | 45.0 | 0.00 | 0.0 | 1,800 | 5.0 | 25.00 | |
| 1/3 | 162.00 | 533.0 | 119.00 | 161.0 | 600 | 25.00 | ||
| Break-Down | 110.00 | 362.0 | 192.00 | 260.0 | 1,630 | 68.0 | 25.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 13.60 | 15.20 | 19.10 | 24.30 | 30.40 | 34.30 | 37.10 |
| Rated Output (KW) | 0.65 | 5.20 | 10.00 | 15.00 | 19.70 | 23.00 | 25.10 |
| Efficiency (%) | 0.0 | 90.2 | 93.0 | 93.6 | 93.6 | 93.3 | 92.4 |
| Power Factor (%) | 5.0 | 43.5 | 66.5 | 77.5 | 83.0 | 84.5 | 85.0 |
| Speed (RPM) | 1,800 | 1,795 | 1,788 | 1,782 | 1,775 | 1,772 | 1,770 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 55.0 | 75.0 | 85.0 |
| Torque (ft-lbs) | 0.00 | 18.30 | 36.70 | 55.20 | 74.00 | 85.20 | 93.00 |
