Description

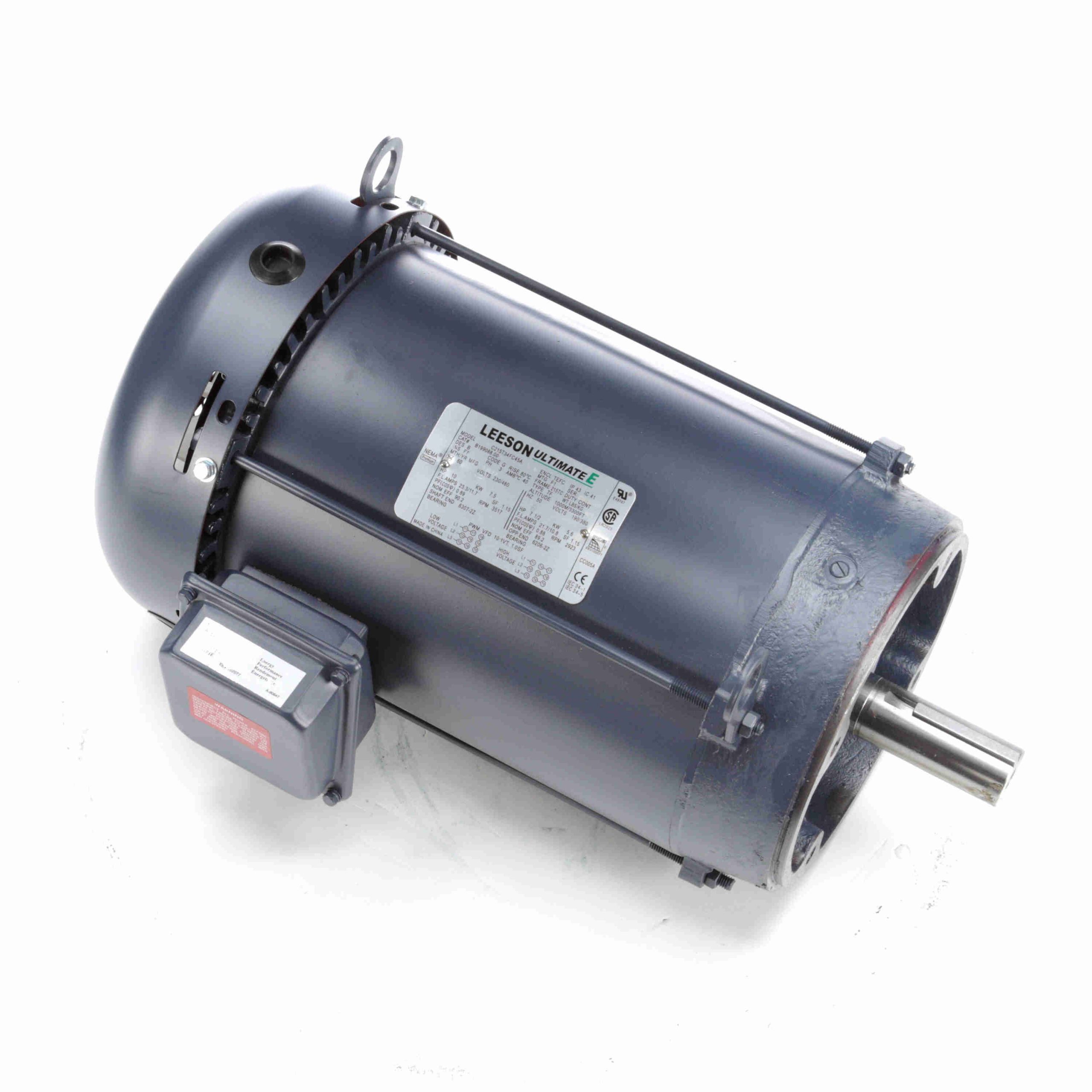

B199088.00 – Leeson 10 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 215TC Frame, TEFC – B199088.00
B199088.00 Leeson Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720044650 |
Weight: |
155 LB |
| Packaged Length: |
22.63 IN |
Packaged Width: |
16.13 IN |
| Packaged Height: |
14.25 IN |
Nameplate Specifications
| Output HP: |
10 Hp |
Output KW: |
7.5 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
23.6/11.8 A |
Speed: |
3518 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
90.2 % |
Power Factor: |
89 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
H |
| Frame: |
215TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
1.218 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
20.70 in |
| Frame Length: |
11.15 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
11.80 |
100.0 |
14.90 |
100.0 |
3,518 |
0.00 |
89.0 |
10.00 |
| 2/3 |
60.00 |
508.0 |
30.00 |
201.0 |
2,400 |
0.00 |
0.0 |
10.00 |
| No Load |
3.90 |
33.0 |
0.00 |
0.0 |
3,600 |
0.00 |
10.5 |
10.00 |
| Pull-Up |
67.00 |
568.0 |
24.00 |
161.0 |
1,800 |
0.00 |
0.0 |
10.00 |
| Break-Down |
44.00 |
373.0 |
41.00 |
275.0 |
3,125 |
0.00 |
74.0 |
10.00 |
| Locked-Rotor |
79.00 |
669.0 |
28.00 |
188.0 |
0 |
0.00 |
45.0 |
10.00 |
| 1/3 |
72.00 |
610.0 |
23.00 |
154.0 |
1,200 |
0.00 |
0.0 |
10.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
3.90 |
4.80 |
6.80 |
9.20 |
11.80 |
13.50 |
14.70 |
| Rated Output (KW) |
0.40 |
2.20 |
4.10 |
6.20 |
8.30 |
9.50 |
10.40 |
| Efficiency (%) |
0.0 |
85.5 |
91.4 |
89.9 |
90.2 |
89.9 |
89.9 |
| Power Factor (%) |
12.9 |
57.5 |
76.0 |
84.5 |
88.0 |
88.0 |
88.5 |
| Speed (RPM) |
3,600 |
3,580 |
3,560 |
3,540 |
3,518 |
3,502 |
3,492 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
55.0 |
75.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
3.70 |
7.40 |
11.10 |
14.90 |
17.30 |
18.90 |
