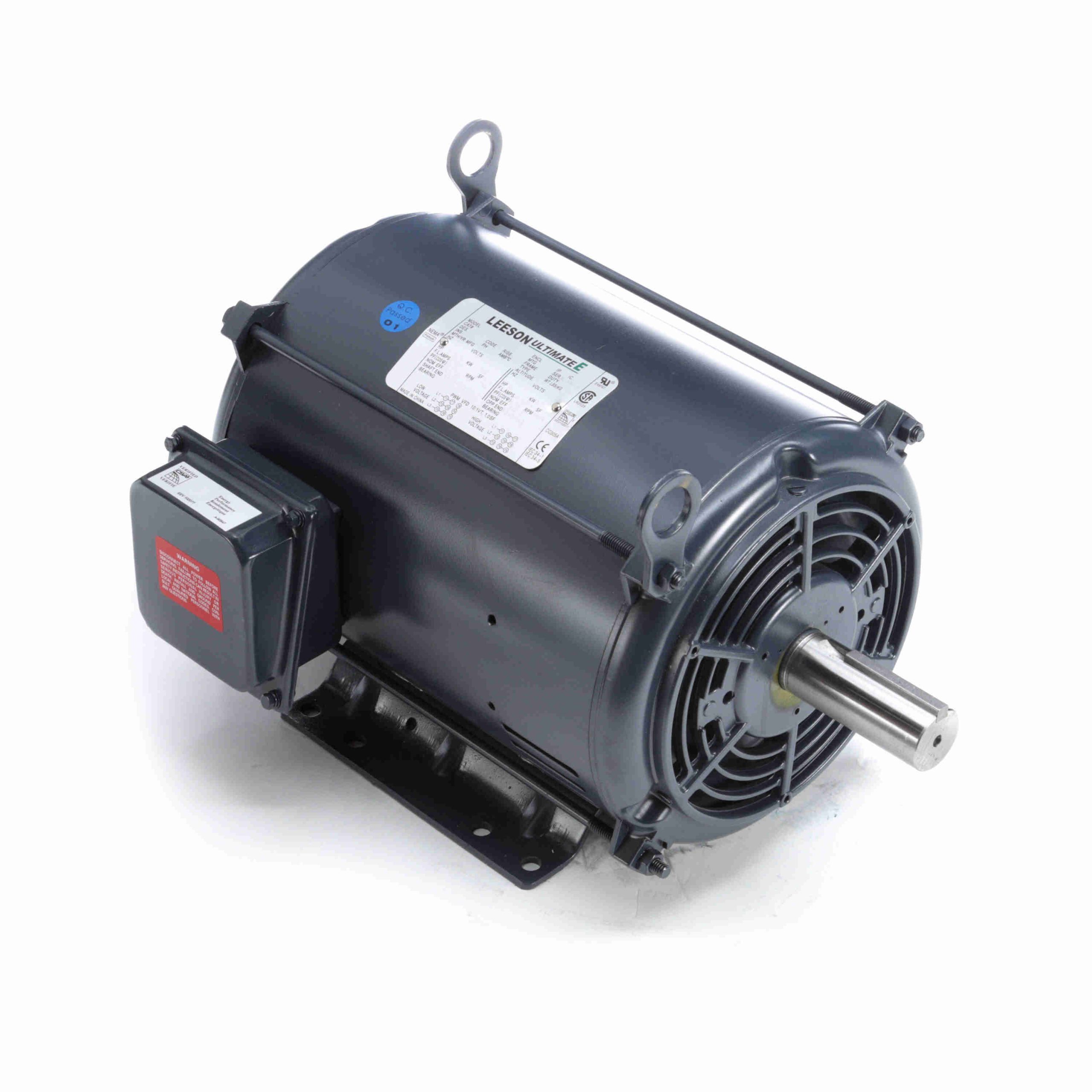

B199688.00 – Leeson 3 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 213T Frame, ODP – B199688.00
B199688.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720042687 |
Weight: |
120 LB |
| Packaged Length: |
18.89 IN |
Packaged Width: |
13.55 IN |
| Packaged Height: |
16.82 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
8.4/4.2 A |
Speed: |
1183 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
88.5 % |
Power Factor: |
75 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
K |
| Frame: |
213T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
3.66 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
17.52 in |
| Frame Length: |
11.15 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
2.20 |
52.0 |
0.00 |
0.0 |
1,200 |
0.00 |
7.5 |
3.00 |
| Locked-Rotor |
31.00 |
738.0 |
23.00 |
173.0 |
0 |
0.00 |
39.0 |
3.00 |
| 2/3 |
23.00 |
548.0 |
24.00 |
180.0 |
800 |
0.00 |
0.0 |
3.00 |
| Break-Down |
17.00 |
405.0 |
38.00 |
286.0 |
1,075 |
0.00 |
65.0 |
3.00 |
| Pull-Up |
25.50 |
607.0 |
19.80 |
149.0 |
600 |
0.00 |
0.0 |
3.00 |
| Full Load |
4.20 |
100.0 |
13.30 |
100.0 |
1,183 |
0.00 |
75.0 |
3.00 |
| 1/3 |
27.50 |
655.0 |
19.20 |
144.0 |
400 |
0.00 |
0.0 |
3.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
2.20 |
2.40 |
2.80 |
3.40 |
4.20 |
4.70 |
5.10 |
| Rated Output (KW) |
0.25 |
0.70 |
1.30 |
1.90 |
2.50 |
2.90 |
3.20 |
| Efficiency (%) |
0.0 |
80.1 |
86.0 |
88.7 |
88.5 |
89.0 |
87.8 |
| Power Factor (%) |
14.3 |
36.6 |
58.3 |
70.1 |
75.0 |
77.4 |
78.8 |
| Speed (RPM) |
1,200 |
1,196 |
1,192 |
1,187 |
1,183 |
1,180 |
1,178 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
35.0 |
50.0 |
60.0 |
| Torque (ft-lbs) |
0.00 |
3.30 |
6.60 |
10.00 |
13.30 |
15.40 |
16.80 |
