Description

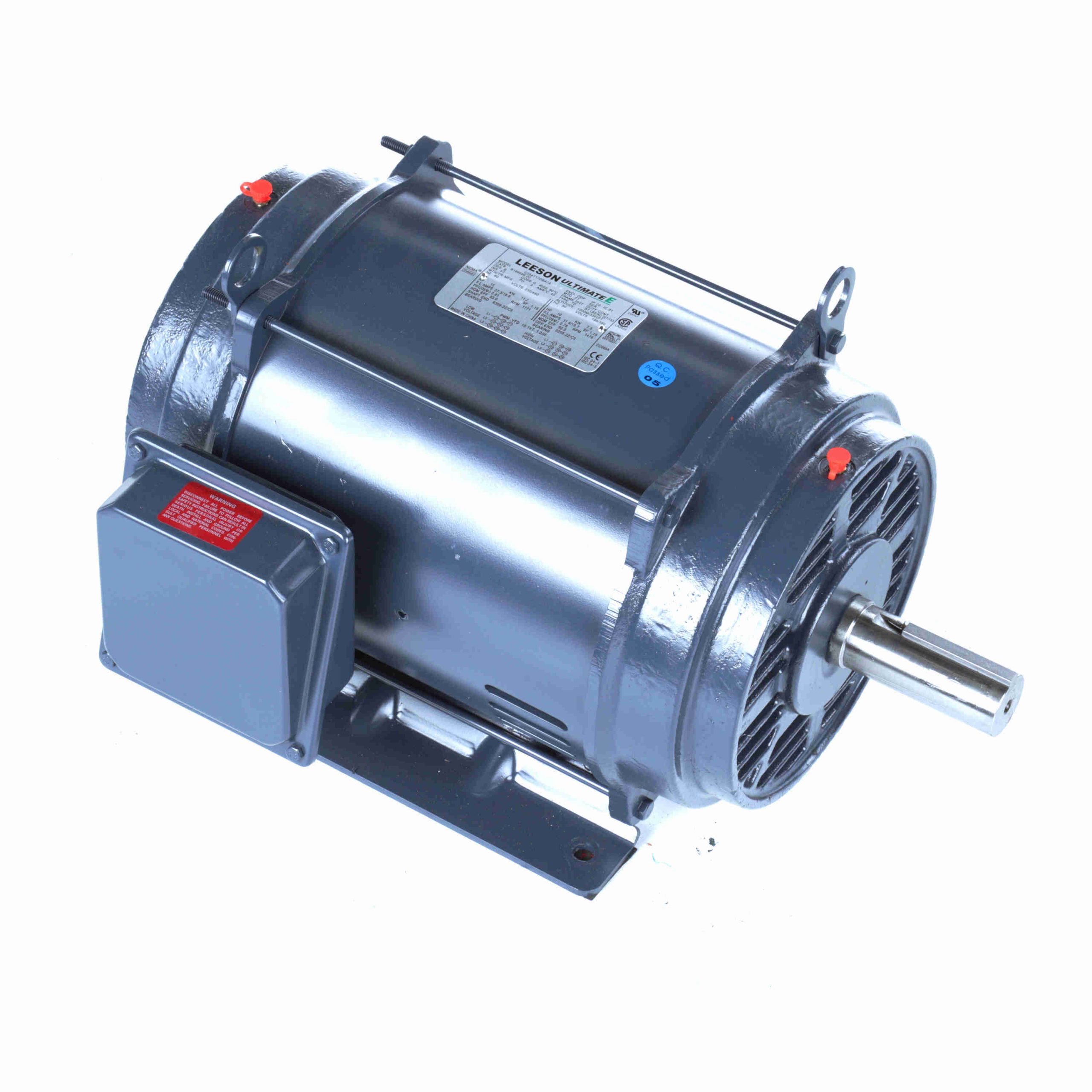

B199699.00 – Leeson 15 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 254T Frame, ODP – B199699.00
B199699.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720042762 |
Weight: |
272 LB |
| Packaged Length: |
26.5 IN |
Packaged Width: |
18 IN |
| Packaged Height: |
14.38 IN |
Nameplate Specifications
| Output HP: |
15 Hp |
Output KW: |
11.2 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
36.5/18.3 A |
Speed: |
1774 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
93 % |
Power Factor: |
81 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
254T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6309 |
Opp Drive End Bearing Size: |
6208 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.6729 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
22.64 in |
| Frame Length: |
10.62 in |
Shaft Diameter: |
1.625 in |
| Shaft Extension: |
4 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
105.00 |
432.0 |
78.00 |
176.0 |
900 |
|
|
15.00 |
| No Load |
9.80 |
40.0 |
0.00 |
0.0 |
1,800 |
|
5.0 |
15.00 |
| Locked-Rotor |
115.00 |
473.0 |
91.00 |
205.0 |
0 |
|
42.0 |
15.00 |
| Break-Down |
73.50 |
302.0 |
119.00 |
268.0 |
1,628 |
|
68.0 |
15.00 |
| Full Load |
24.30 |
100.0 |
44.40 |
100.0 |
1,774 |
|
81.0 |
15.00 |
| 1/3 |
111.00 |
457.0 |
76.00 |
171.0 |
600 |
|
|
15.00 |
| 2/3 |
95.00 |
391.0 |
95.00 |
214.0 |
1,200 |
|
|
15.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
9.00 |
9.80 |
12.00 |
15.10 |
18.80 |
21.20 |
23.00 |
| Rated Output (KW) |
0.50 |
3.20 |
6.10 |
9.00 |
12.00 |
13.80 |
15.10 |
| Efficiency (%) |
0.0 |
89.9 |
92.4 |
93.0 |
93.0 |
92.7 |
91.7 |
| Power Factor (%) |
5.0 |
41.0 |
64.0 |
75.5 |
81.0 |
82.5 |
83.5 |
| Speed (RPM) |
1,800 |
1,792 |
1,788 |
1,780 |
1,774 |
1,768 |
1,765 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
55.0 |
65.0 |
| Torque (ft-lbs) |
0.00 |
11.00 |
22.00 |
33.20 |
44.40 |
51.20 |
55.80 |
