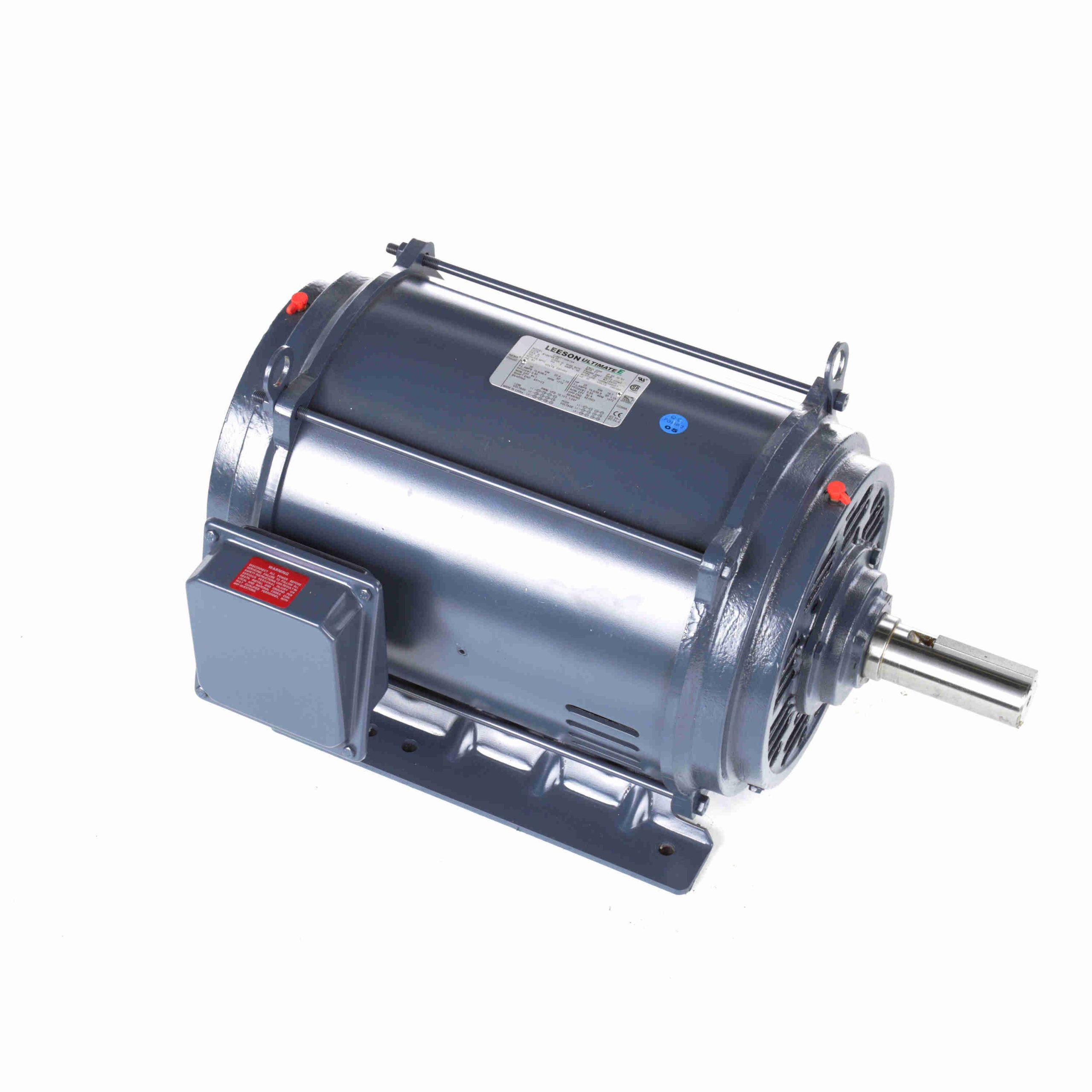

B199710.00 – Leeson 40 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 286TS Frame, ODP – B199710.00
B199710.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720043158 |
Weight: |
348 LB |
| Packaged Length: |
29 IN |
Packaged Width: |
24 IN |
| Packaged Height: |
23.4 IN |
Nameplate Specifications
| Output HP: |
40 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
93.0/46.5 A |
Speed: |
3562 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
92.4 % |
Power Factor: |
87 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
F |
| Frame: |
286TS |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6211 |
Opp Drive End Bearing Size: |
6211 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Wye Start Delta Run Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.2468 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
TS |
Overall Length: |
25.72 in |
| Frame Length: |
2.86 in |
Shaft Diameter: |
1.625 in |
| Shaft Extension: |
3.25 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
17.20 |
37.0 |
0.00 |
0.0 |
3,600 |
|
8.0 |
40.00 |
| 1/3 |
240.00 |
515.0 |
84.00 |
142.0 |
1,200 |
|
|
40.00 |
| Break-Down |
150.00 |
322.0 |
131.00 |
222.0 |
3,385 |
|
71.0 |
40.00 |
| Pull-Up |
228.00 |
489.0 |
85.50 |
145.0 |
1,800 |
|
|
40.00 |
| Locked-Rotor |
251.00 |
539.0 |
101.00 |
171.0 |
0 |
|
35.0 |
40.00 |
| 2/3 |
210.00 |
451.0 |
105.00 |
178.0 |
2,400 |
|
|
40.00 |
| Full Load |
46.60 |
100.0 |
59.00 |
100.0 |
3,562 |
|
87.0 |
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
17.20 |
20.40 |
27.50 |
36.40 |
46.60 |
53.20 |
57.80 |
| Rated Output (KW) |
1.20 |
8.60 |
16.30 |
24.20 |
32.40 |
37.30 |
40.80 |
| Efficiency (%) |
0.0 |
89.5 |
92.1 |
92.4 |
92.4 |
92.1 |
91.4 |
| Power Factor (%) |
8.0 |
53.0 |
74.5 |
83.5 |
87.0 |
88.0 |
88.5 |
| Speed (RPM) |
3,600 |
3,590 |
3,582 |
3,572 |
3,562 |
3,556 |
3,550 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
60.0 |
70.0 |
75.0 |
| Torque (ft-lbs) |
0.00 |
14.60 |
29.40 |
44.20 |
59.00 |
68.00 |
74.00 |
