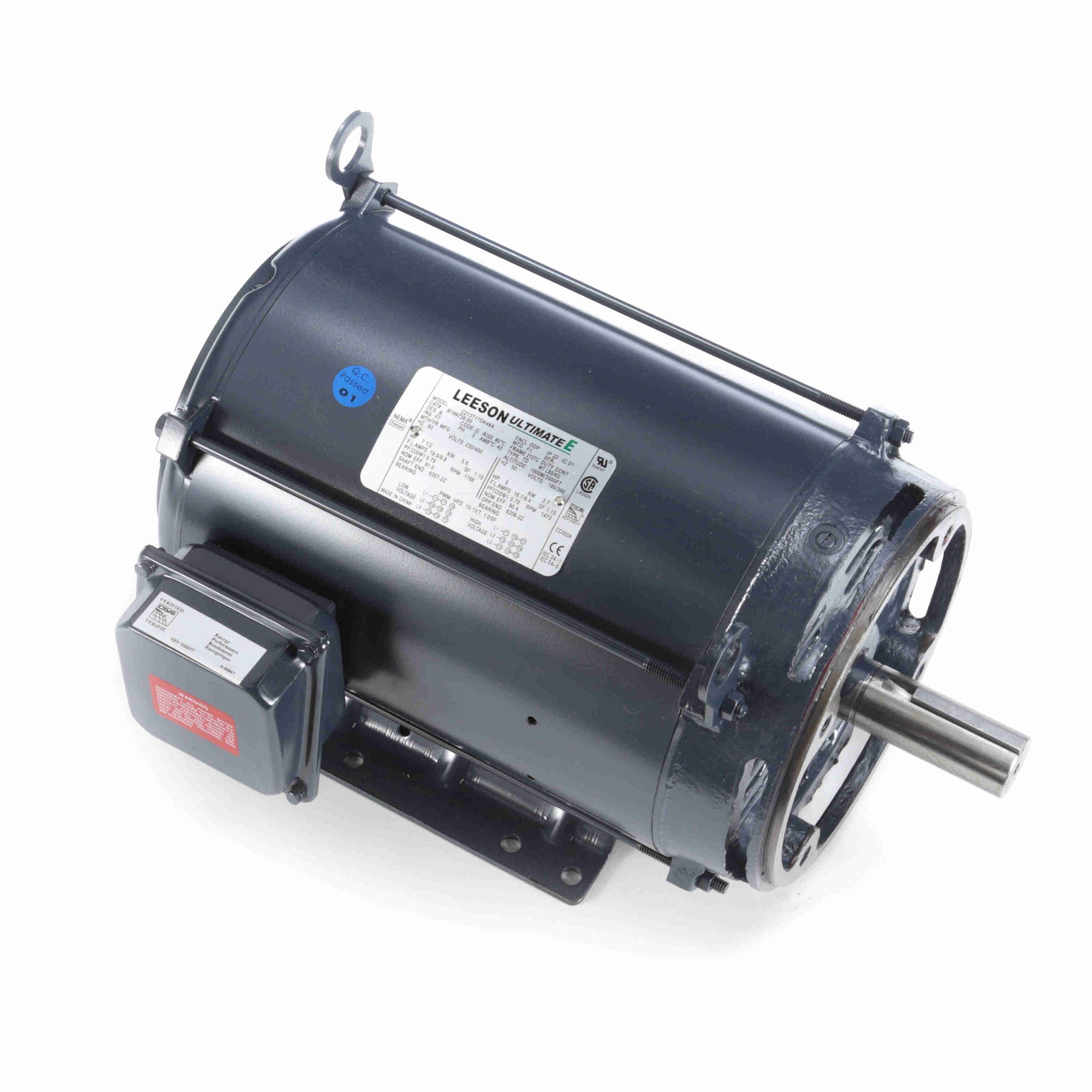

B199739.00 – Leeson 7.50 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 213TC Frame, ODP – B199739.00
B199739.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720043417 |
Weight: |
152 LB |
| Packaged Length: |
19.47 IN |
Packaged Width: |
13.6 IN |
| Packaged Height: |
16.84 IN |
Nameplate Specifications
| Output HP: |
5 Hp |
Output KW: |
5.60 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
19.8/9.9 A |
Speed: |
1472 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
91 % |
Power Factor: |
79 |
| Duty: |
CONTINUOUS |
Insulation Class: |
F3 |
| Design Code: |
B |
KVA Code: |
H |
| Frame: |
213TC |
Enclosure: |
DP |
| Thermal Protection: |
NOT |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Y-(LEESON UL REC) |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
LINE OR INVERTER |
| Poles: |
4 |
Rotation: |
REV |
| Resistance Main: |
1.698 Ohms |
Mounting: |
RIGID |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
ROLLED STEEL |
| Shaft Type: |
T |
Overall Length: |
18.1 in |
| Frame Length: |
11.15 in |
Shaft Diameter: |
1 3/8 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
54.00 |
545.0 |
37.50 |
168.0 |
900 |
0.00 |
0.0 |
7.50 |
| Locked-Rotor |
60.00 |
606.0 |
44.00 |
197.0 |
0 |
0.00 |
45.0 |
7.50 |
| Full Load |
9.90 |
100.0 |
22.30 |
100.0 |
1,766 |
0.00 |
79.0 |
7.50 |
| No Load |
5.00 |
51.0 |
0.00 |
0.0 |
1,800 |
0.00 |
6.0 |
7.50 |
| 2/3 |
49.00 |
495.0 |
46.00 |
206.0 |
1,200 |
0.00 |
0.0 |
7.50 |
| Break-Down |
34.00 |
343.0 |
57.00 |
256.0 |
1,585 |
0.00 |
68.0 |
7.50 |
| 1/3 |
57.00 |
576.0 |
37.00 |
166.0 |
600 |
0.00 |
0.0 |
7.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
5.00 |
5.40 |
6.40 |
8.00 |
9.90 |
11.20 |
12.10 |
| Rated Output (KW) |
0.45 |
1.60 |
3.10 |
4.60 |
6.10 |
7.10 |
7.80 |
| Efficiency (%) |
0.0 |
87.5 |
90.0 |
91.5 |
91.0 |
90.8 |
89.5 |
| Power Factor (%) |
11.3 |
37.2 |
60.8 |
72.2 |
77.3 |
79.6 |
80.9 |
| Speed (RPM) |
1,800 |
1,792 |
1,785 |
1,775 |
1,766 |
1,760 |
1,755 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
55.0 |
65.0 |
| Torque (ft-lbs) |
0.00 |
5.50 |
11.00 |
16.70 |
22.30 |
25.80 |
28.00 |
