Description

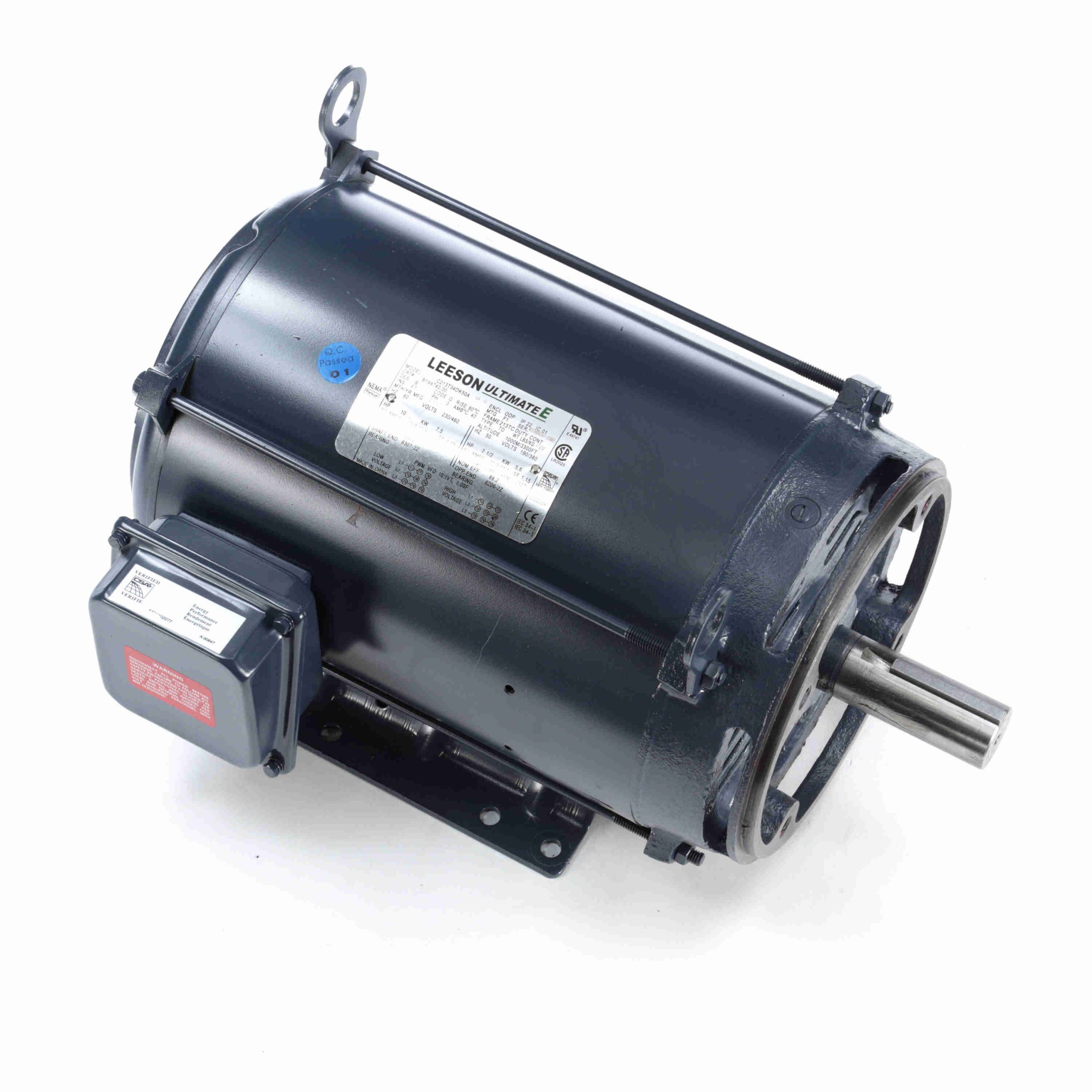

B199740.00 – Leeson 10 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 213TC Frame, ODP – B199740.00
B199740.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720043424 |
Weight: |
140 LB |
| Packaged Length: |
19.47 IN |
Packaged Width: |
13.6 IN |
| Packaged Height: |
16.84 IN |
Nameplate Specifications
| Output HP: |
7 1/2 Hp |
Output KW: |
7.50 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
24.3/12.2 A |
Speed: |
2925 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
89.5 % |
Power Factor: |
86 |
| Duty: |
CONTINUOUS |
Insulation Class: |
F3 |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
213TC |
Enclosure: |
DP |
| Thermal Protection: |
NOT |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Y-(LEESON UL REC) |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
LINE OR INVERTER |
| Poles: |
2 |
Rotation: |
REV |
| Resistance Main: |
1.52 Ohms |
Mounting: |
RIGID |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
ROLLED STEEL |
| Shaft Type: |
T |
Overall Length: |
18.1 in |
| Frame Length: |
11.15 in |
Shaft Diameter: |
1 3/8 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
4.80 |
40.0 |
0.00 |
0.0 |
3,600 |
|
9.0 |
10.00 |
| 1/3 |
68.00 |
562.0 |
20.50 |
138.0 |
1,200 |
|
|
10.00 |
| Pull-Up |
65.00 |
537.0 |
21.30 |
143.0 |
1,800 |
|
|
10.00 |
| 2/3 |
60.00 |
496.0 |
26.50 |
178.0 |
2,400 |
|
|
10.00 |
| Full Load |
12.10 |
100.0 |
14.90 |
100.0 |
3,520 |
|
86.0 |
10.00 |
| Break-Down |
45.00 |
372.0 |
40.00 |
268.0 |
3,085 |
|
74.0 |
10.00 |
| Locked-Rotor |
73.00 |
603.0 |
25.00 |
168.0 |
0 |
|
45.0 |
10.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
4.80 |
5.60 |
7.30 |
9.50 |
12.10 |
13.80 |
15.00 |
| Rated Output (KW) |
0.50 |
2.30 |
4.20 |
6.20 |
8.30 |
9.60 |
10.50 |
| Efficiency (%) |
0.0 |
81.8 |
89.1 |
90.9 |
89.8 |
89.3 |
89.0 |
| Power Factor (%) |
13.1 |
51.6 |
72.2 |
81.9 |
86.1 |
87.3 |
87.9 |
| Speed (RPM) |
3,600 |
3,580 |
3,562 |
3,542 |
3,520 |
3,508 |
3,498 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
55.0 |
75.0 |
90.0 |
| Torque (ft-lbs) |
0.00 |
3.70 |
7.40 |
11.20 |
14.90 |
17.20 |
18.80 |
