Description

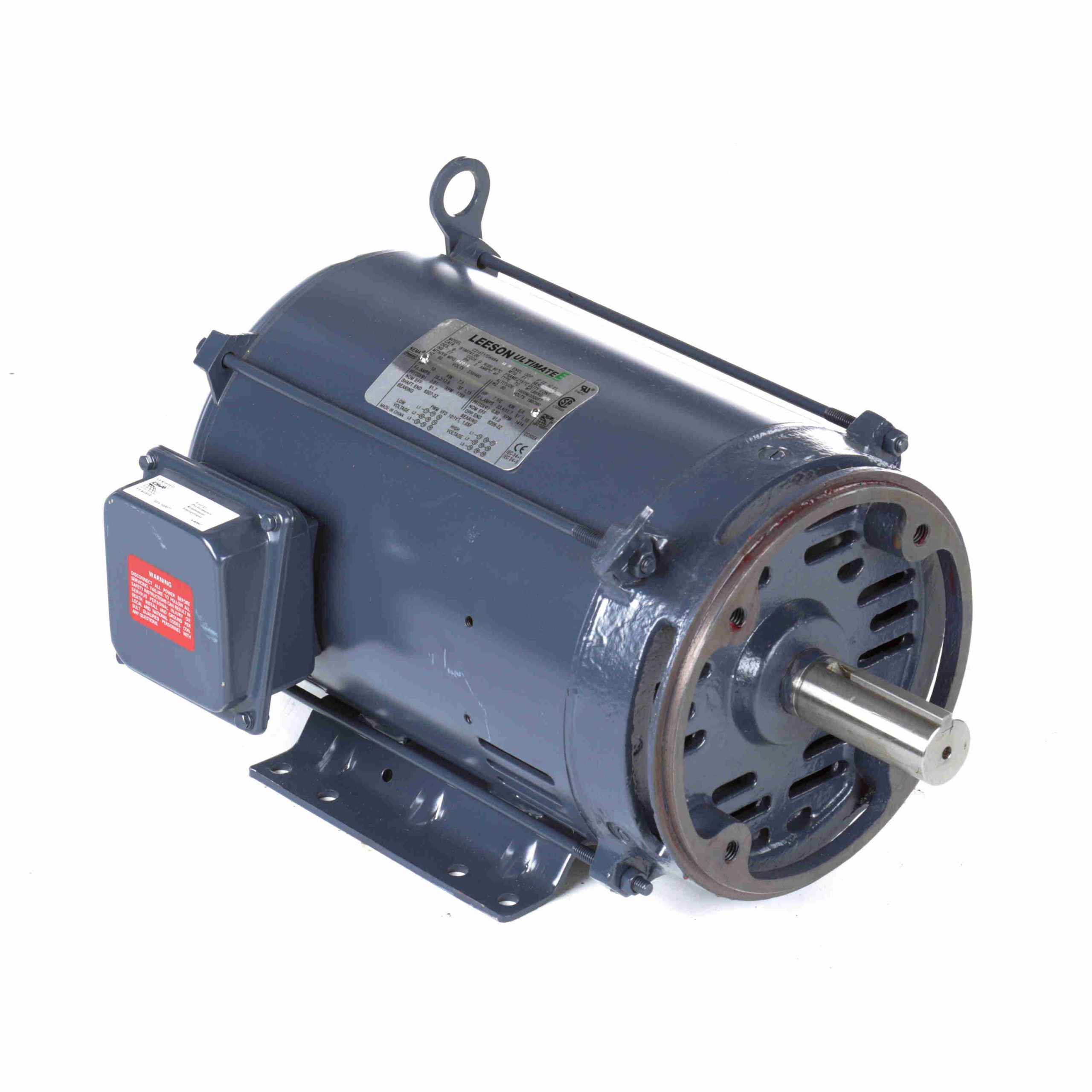

B199742.00 – Leeson 15 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 215TC Frame, ODP – B199742.00
B199742.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720043448 |
Weight: |
172 LB |
| Packaged Length: |
19.47 IN |
Packaged Width: |
13.6 IN |
| Packaged Height: |
16.84 IN |
Nameplate Specifications
| Output HP: |
10 Hp |
Output KW: |
11.2 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
36.0/18.0 A |
Speed: |
2930 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
90.2 % |
Power Factor: |
86 |
| Duty: |
CONTINUOUS |
Insulation Class: |
F3 |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
215TC |
Enclosure: |
DP |
| Thermal Protection: |
NOT |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Y-(LEESON UL REC) |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
LINE OR INVERTER |
| Poles: |
2 |
Rotation: |
REV |
| Resistance Main: |
.97 Ohms |
Mounting: |
RIGID |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
ROLLED STEEL |
| Shaft Type: |
T |
Overall Length: |
18.1 in |
| Frame Length: |
11.15 in |
Shaft Diameter: |
1 3/8 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
64.00 |
356.0 |
57.00 |
254.0 |
3,085 |
0.00 |
73.0 |
15.00 |
| Pull-Up |
95.00 |
528.0 |
33.00 |
147.0 |
1,800 |
0.00 |
0.0 |
15.00 |
| 2/3 |
86.00 |
478.0 |
40.00 |
179.0 |
2,400 |
0.00 |
0.0 |
15.00 |
| 1/3 |
100.00 |
556.0 |
32.00 |
143.0 |
1,200 |
0.00 |
0.0 |
15.00 |
| No Load |
7.10 |
39.0 |
0.00 |
0.0 |
3,600 |
0.00 |
7.5 |
15.00 |
| Locked-Rotor |
105.00 |
583.0 |
38.00 |
170.0 |
0 |
0.00 |
45.0 |
15.00 |
| Full Load |
18.00 |
100.0 |
22.40 |
100.0 |
3,515 |
0.00 |
86.0 |
15.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
7.10 |
8.10 |
10.70 |
14.10 |
18.00 |
20.60 |
22.40 |
| Rated Output (KW) |
0.65 |
3.30 |
6.20 |
9.20 |
12.30 |
14.30 |
15.70 |
| Efficiency (%) |
0.0 |
84.8 |
90.5 |
91.8 |
90.9 |
90.3 |
89.0 |
| Power Factor (%) |
11.5 |
51.1 |
72.7 |
81.9 |
85.8 |
87.1 |
88.0 |
| Speed (RPM) |
3,600 |
3,580 |
3,560 |
3,538 |
3,515 |
3,498 |
3,488 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
70.0 |
85.0 |
| Torque (ft-lbs) |
0.00 |
5.50 |
11.10 |
16.80 |
22.40 |
26.00 |
28.20 |
