Description

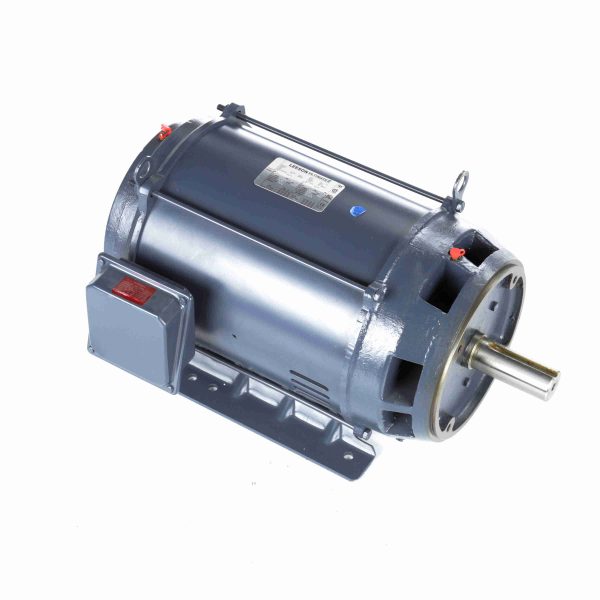

B199749.00 – Leeson 30 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 286TC Frame, ODP – B199749.00
B199749.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720043516 |
Weight: |
460 LB |
| Packaged Length: |
31.77 IN |
Packaged Width: |
28.03 IN |
| Packaged Height: |
28.14 IN |
Nameplate Specifications
| Output HP: |
25 Hp |
Output KW: |
22.4 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
72.5/36.0 A |
Speed: |
1474 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.1 % |
Power Factor: |
83.5 |
| Duty: |
CONTINUOUS |
Insulation Class: |
F7 |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
286TC |
Enclosure: |
DP |
| Thermal Protection: |
NOT |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6311 |
Opp Drive End Bearing Size: |
6210 |
| UL: |
Y-(LEESON UL REC) |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Y START D RUN OR INV |
| Poles: |
4 |
Rotation: |
REV |
| Resistance Main: |
.289 Ohms |
Mounting: |
RIGID |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
ROLLED STEEL |
| Shaft Type: |
T |
Overall Length: |
25.71 in |
| Frame Length: |
13.97 in |
Shaft Diameter: |
1 7/8 in |
| Shaft Extension: |
4.62 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
164.00 |
453.0 |
175.00 |
197.0 |
1,200 |
|
|
30.00 |
| Pull-Up |
178.00 |
492.0 |
148.00 |
167.0 |
900 |
|
|
30.00 |
| No Load |
15.00 |
41.0 |
0.00 |
0.0 |
1,800 |
|
4.5 |
30.00 |
| Locked-Rotor |
215.00 |
594.0 |
178.00 |
200.0 |
0 |
|
38.0 |
30.00 |
| 1/3 |
190.00 |
525.0 |
140.00 |
158.0 |
600 |
|
|
30.00 |
| Full Load |
36.20 |
100.0 |
88.80 |
100.0 |
1,775 |
|
83.5 |
30.00 |
| Break-Down |
130.00 |
359.0 |
200.00 |
225.0 |
1,645 |
|
68.0 |
30.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
15.00 |
17.00 |
22.00 |
28.60 |
36.20 |
41.20 |
44.70 |
| Rated Output (KW) |
0.65 |
6.20 |
12.00 |
17.80 |
23.80 |
27.50 |
30.00 |
| Efficiency (%) |
0.0 |
90.2 |
93.6 |
94.1 |
94.1 |
94.1 |
93.6 |
| Power Factor (%) |
4.5 |
46.0 |
69.0 |
79.0 |
83.5 |
85.0 |
85.5 |
| Speed (RPM) |
1,800 |
1,795 |
1,788 |
1,780 |
1,775 |
1,770 |
1,765 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
55.0 |
65.0 |
| Torque (ft-lbs) |
0.00 |
22.00 |
44.00 |
66.50 |
88.80 |
102.00 |
111.00 |
