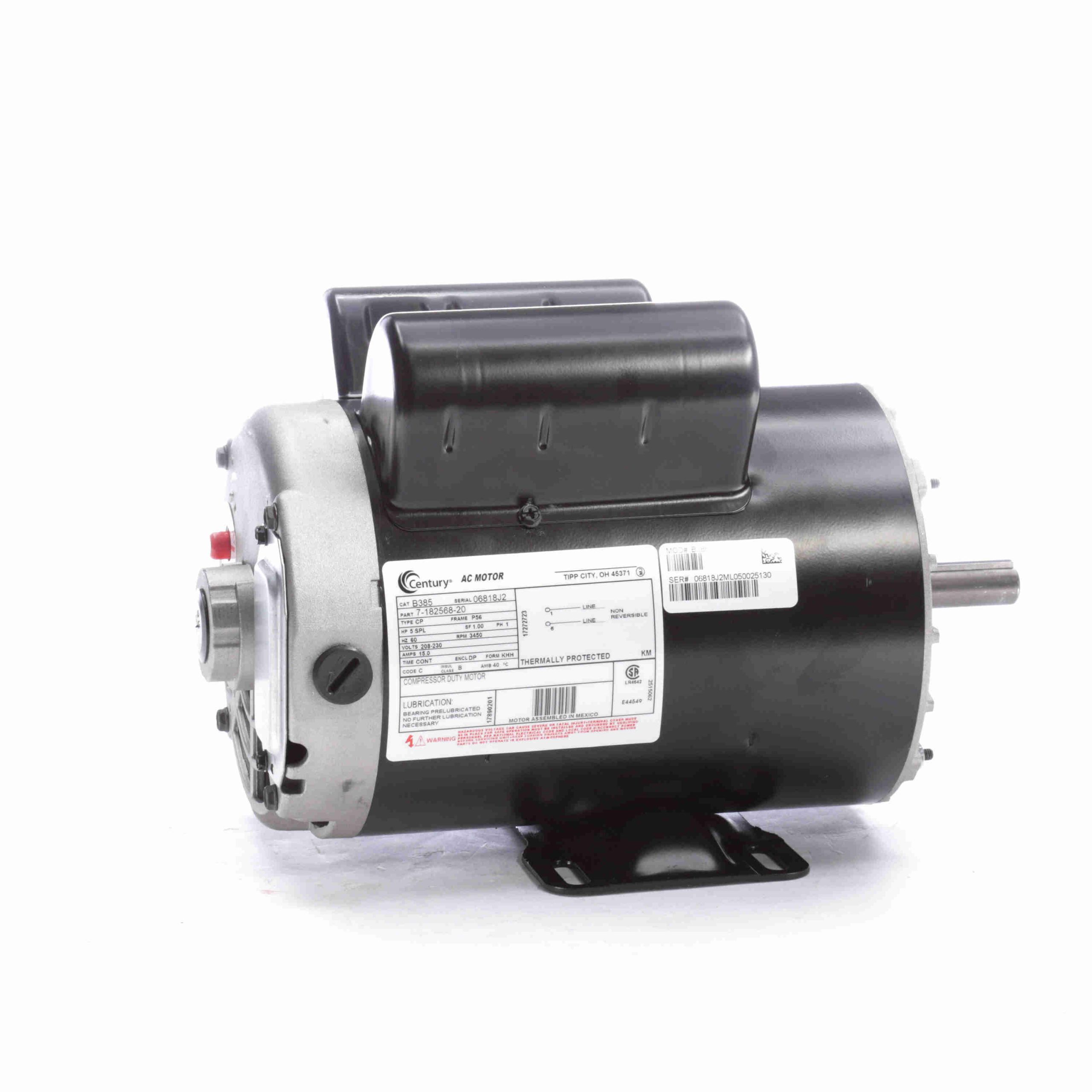

B385 – Century 5 SPL HP Air Compressor Motor, 1 phase, 3600 RPM, 208-230 V, 56 Frame, ODP – B385
B385 Century Air Compressor Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674012418 |
Weight: |
35 LB |
| Packaged Length: |
15.98 IN |
Packaged Width: |
9.13 IN |
| Packaged Height: |
10.75 IN |
Nameplate Specifications
| Output HP: |
5 SPL Hp |
Output KW: |
3.7 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
15.0 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
P56 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Capacitor Start, Capacitor Run, Single Or Dual Voltage |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Clockwise |
| Mounting: |
Rigid Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
12.59 in |
| Frame Length: |
8.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.94 in |
