Description

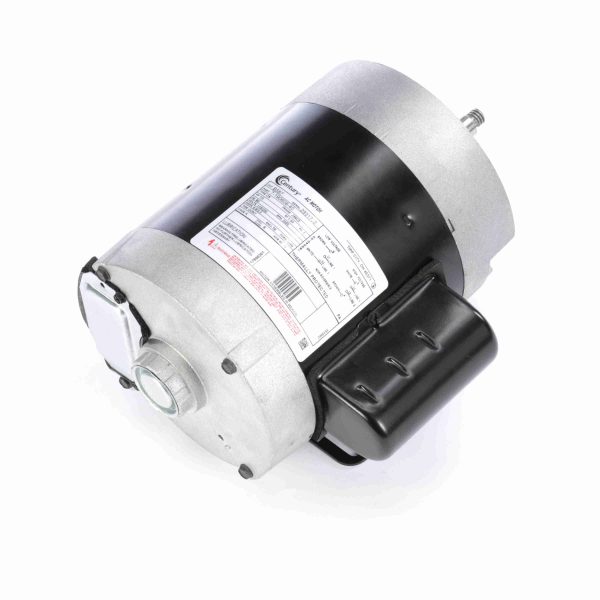

B587 – Century 1/2 HP Milk Pump Duty Motor, 1 phase, 3600 RPM, 115/230 V, 56CZ Frame, TENV – B587
B587 Century Low Voltage NEMA Milk Pump Duty Motors
General Specifications
| UPC: |
786674012555 |
Weight: |
24 LB |
| Packaged Length: |
15.5 IN |
Packaged Width: |
10.5 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
1/2 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
6.6/3.3 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
J56CZ |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
40 °C |
| UL: |
No |
CSA: |
N |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Capacitor Start, Induction Run, Single Or Dual Voltage |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Clockwise |
| Mounting: |
Rigid Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Threaded |
Overall Length: |
11.30 in |
| Frame Length: |
5.13 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.2 in |
Century Motors
Regal Beloit
