Description

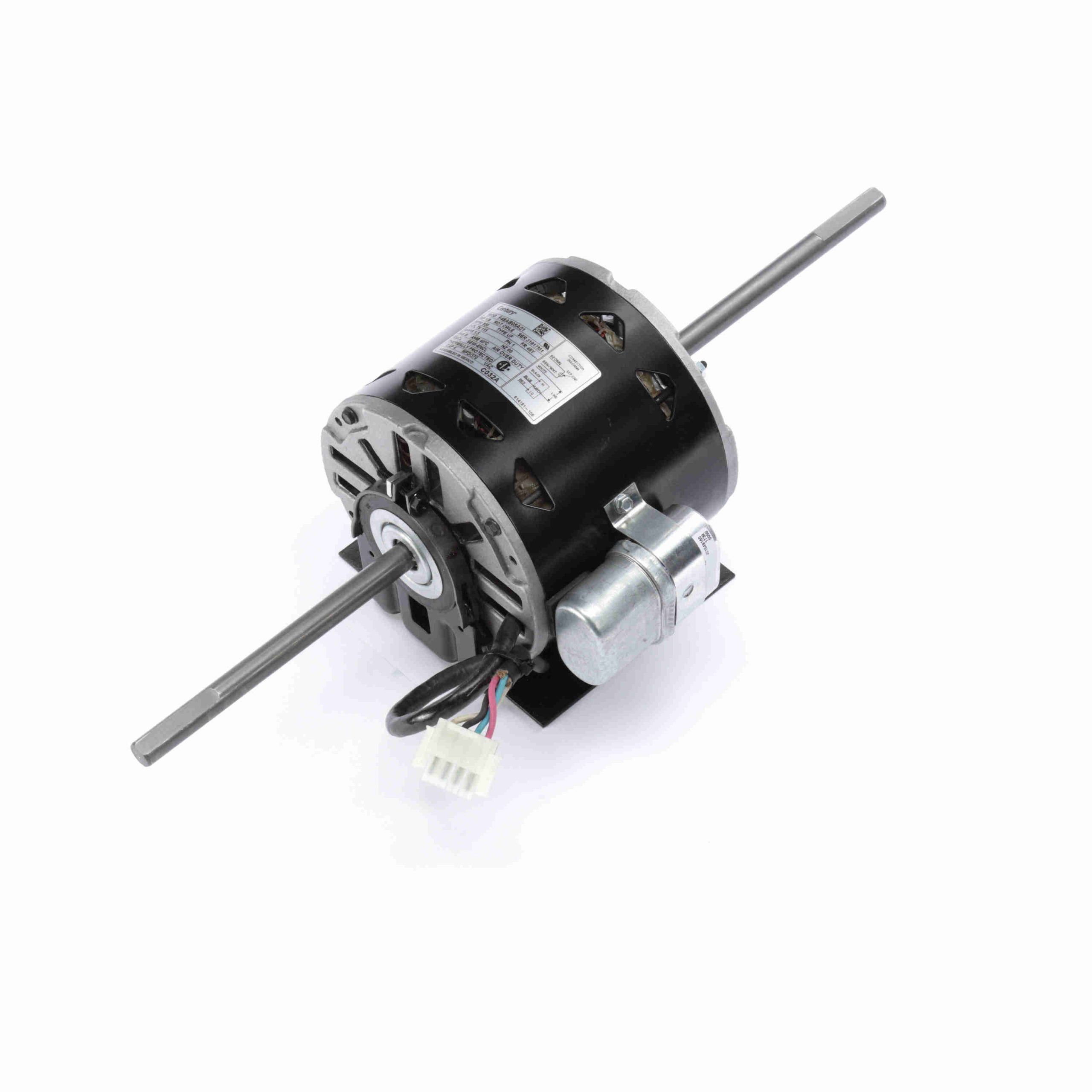

C032A – Century 1/8 HP OEM Replacement Motor, 850 RPM, 115 Volts, 48 Frame, Semi Enclosed – C032A
C032A Century HVAC/R OEM Replacement Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674015006 |
Weight: |
16 LB |
| Packaged Length: |
23 IN |
Packaged Width: |
10 IN |
| Packaged Height: |
9 IN |
Nameplate Specifications
| Output HP: |
1/8 Hp |
Output KW: |
0.10 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
1.5 A |
Speed: |
850 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
48Y |
Enclosure: |
Semi Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
10 |
Rotation: |
Clockwise Lead End |
| Mounting: |
Resilient Base |
Drive End Bearing: |
Sleeve |
| Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Flat |
Overall Length: |
18.00 in |
| Frame Length: |
4.50 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
6.49 in |
Century Motors
Regal Beloit
