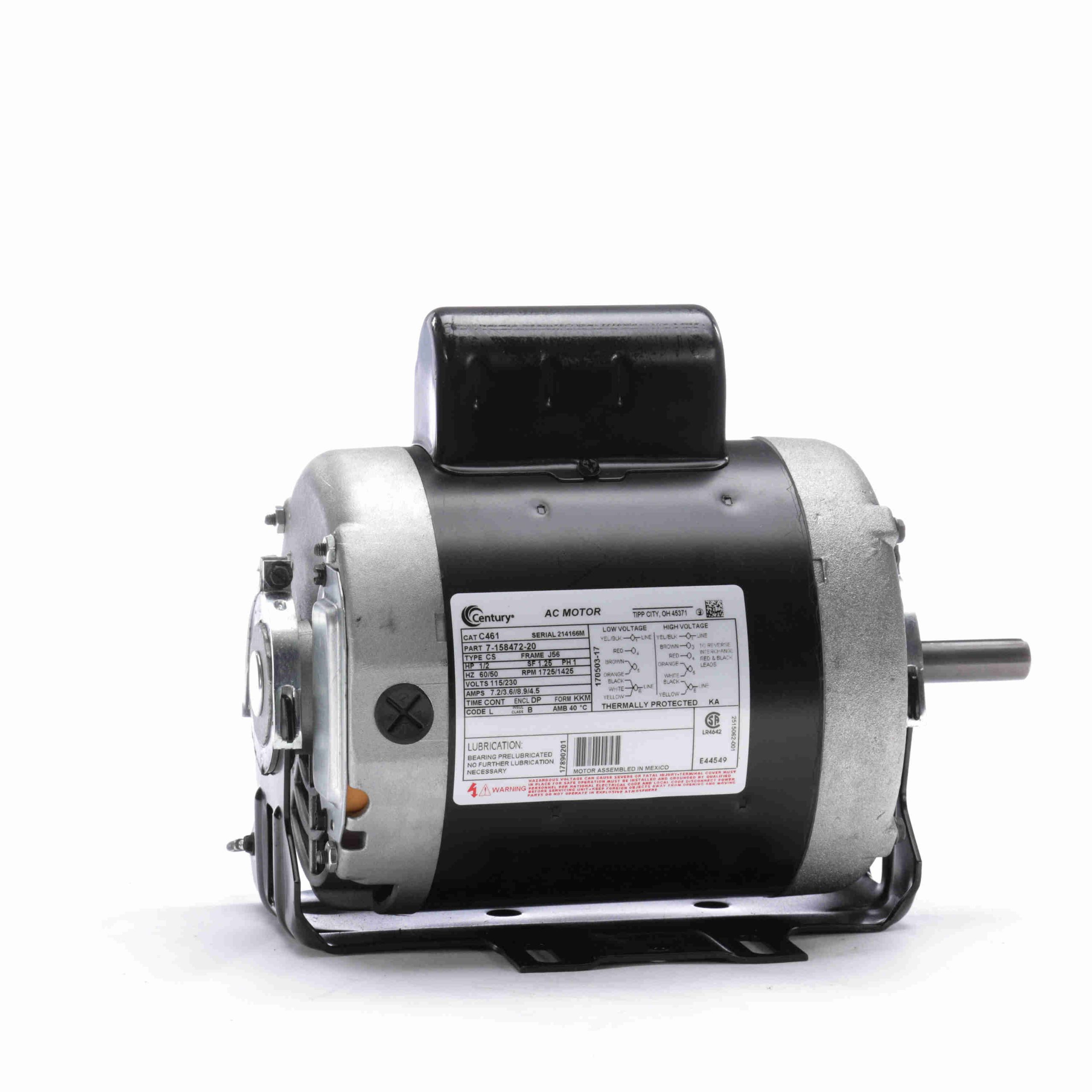

C461 – Century 1/2 HP Fan and Blower HVAC/R Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – C461

C461 – Century 1/2 HP Fan and Blower HVAC/R Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – C461

C461 Century Self Cooled Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Resilient Base
  • Capacitor start / capacitor run
  • Single and two speed

Century Motors
Regal Beloit

Original price was: $993.00.Current price is: $667.50.

Description

C461 – Century 1/2 HP Fan and Blower HVAC/R Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – C461

C461 Century Self Cooled Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674016027 Weight: 27 LB
Packaged Length: 16 IN Packaged Width: 8 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/2 Hp Output KW: 0.37 kW
Frequency: 60/50 Hz Voltage: 115/230 V
Current: 7.2/3.6//8.9/4.5 A Speed: 1725/1425 rpm
Service Factor: 1.25 Phase: 1
Duty: Continuous Insulation Class: B
Frame: J56 Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Cushion Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.13 in
Frame Length: 5.13 in Shaft Diameter: 0.625 in
Shaft Extension: 1.97 in
