Description

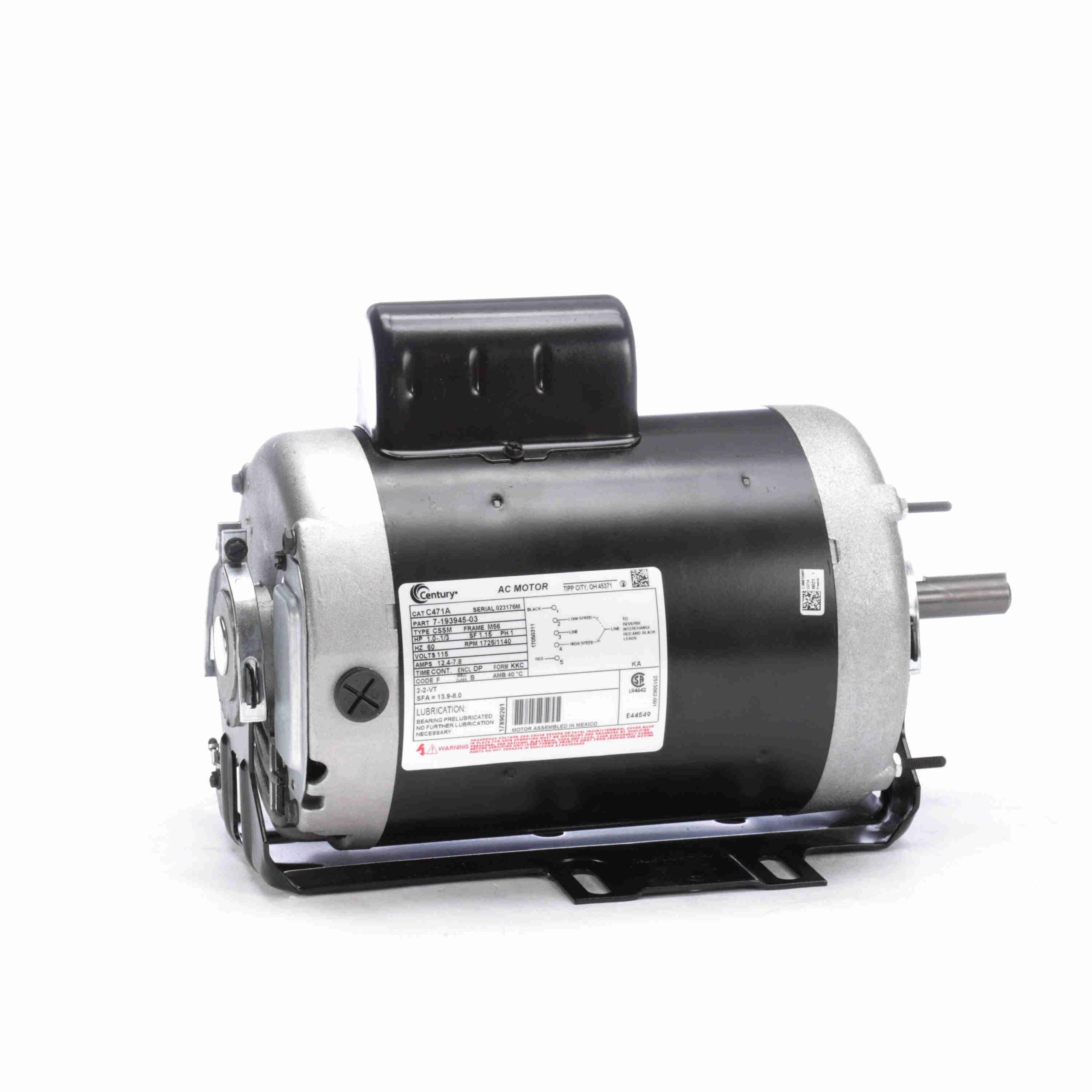

C471A – Century 1.0-.1/3 HP 2 speed Fan and Blower HVAC/R Motor, 1 phase, 1800/1200 RPM, 115 V, 56 Frame, ODP – C471A
C471A Century Belt Drive Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674016041 |
Weight: |
37 LB |
| Packaged Length: |
16 IN |
Packaged Width: |
8 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
1.0-.1/3 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
12.4-7.8 A |
Speed: |
1725/1140 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
M56 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Capacitor Start, Induction Run, Special Service, Multi-Speed |
Starting Method: |
Across The Line |
| Poles: |
4/6 |
Rotation: |
Reversible Counterclockwise |
| Mounting: |
Cushion Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
12.69 in |
| Frame Length: |
6.75 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.94 in |
