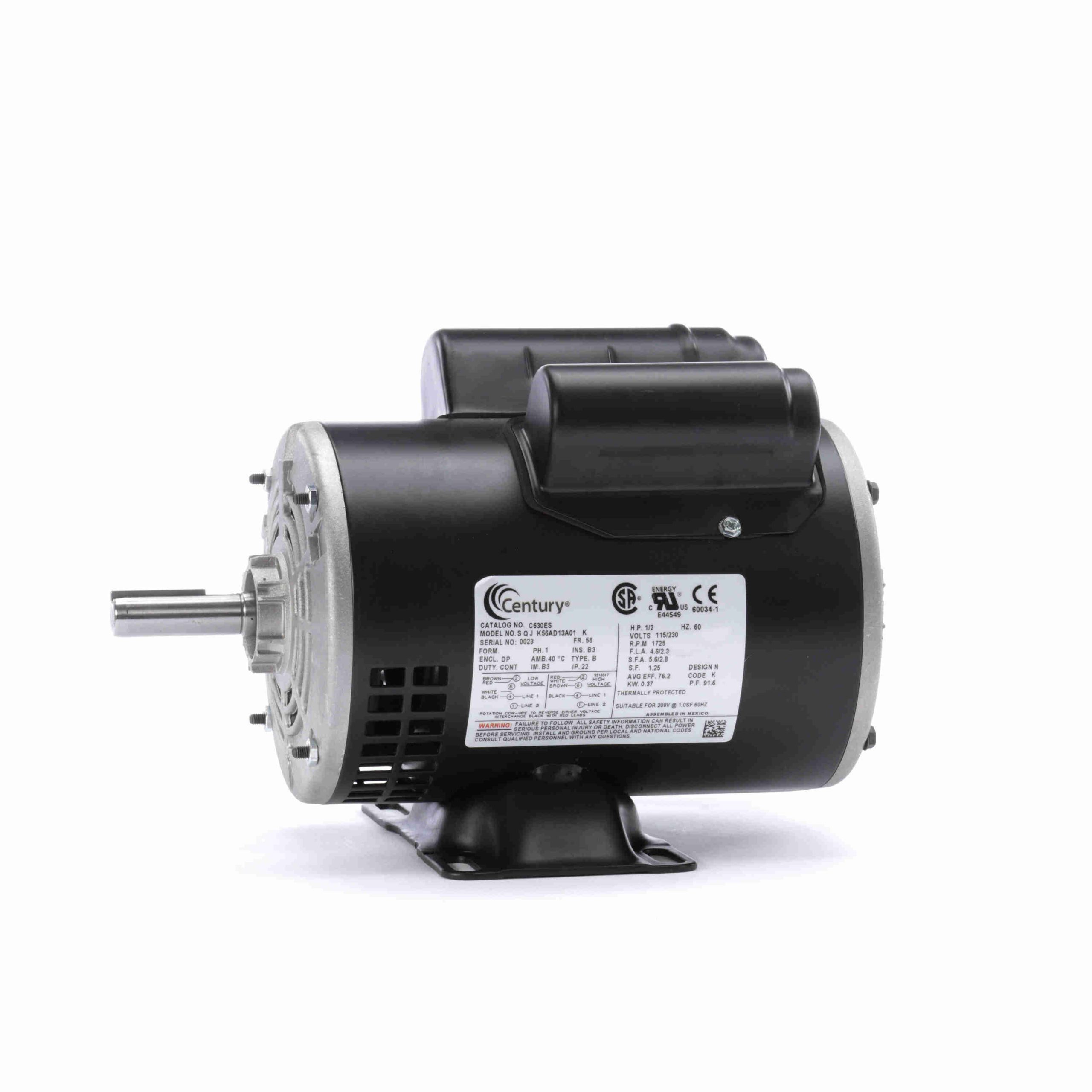

C630ES – Century 1/2 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – C630ES

C630ES – Century 1/2 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – C630ES

C630ES Century Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Heavy gauge steel frame and base

Century Motors
Regal Beloit

Description

C630ES – Century 1/2 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – C630ES

C630ES Century Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674073679 Weight: 24 LB
Packaged Length: 16 IN Packaged Width: 8 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/2 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 4.6/2.3 A Speed: 1725 rpm
Service Factor: 1.25 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56 Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise/Clockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.47 in
Frame Length: 7.63 in Shaft Diameter: 0.625 in
Shaft Extension: 1.97 in
