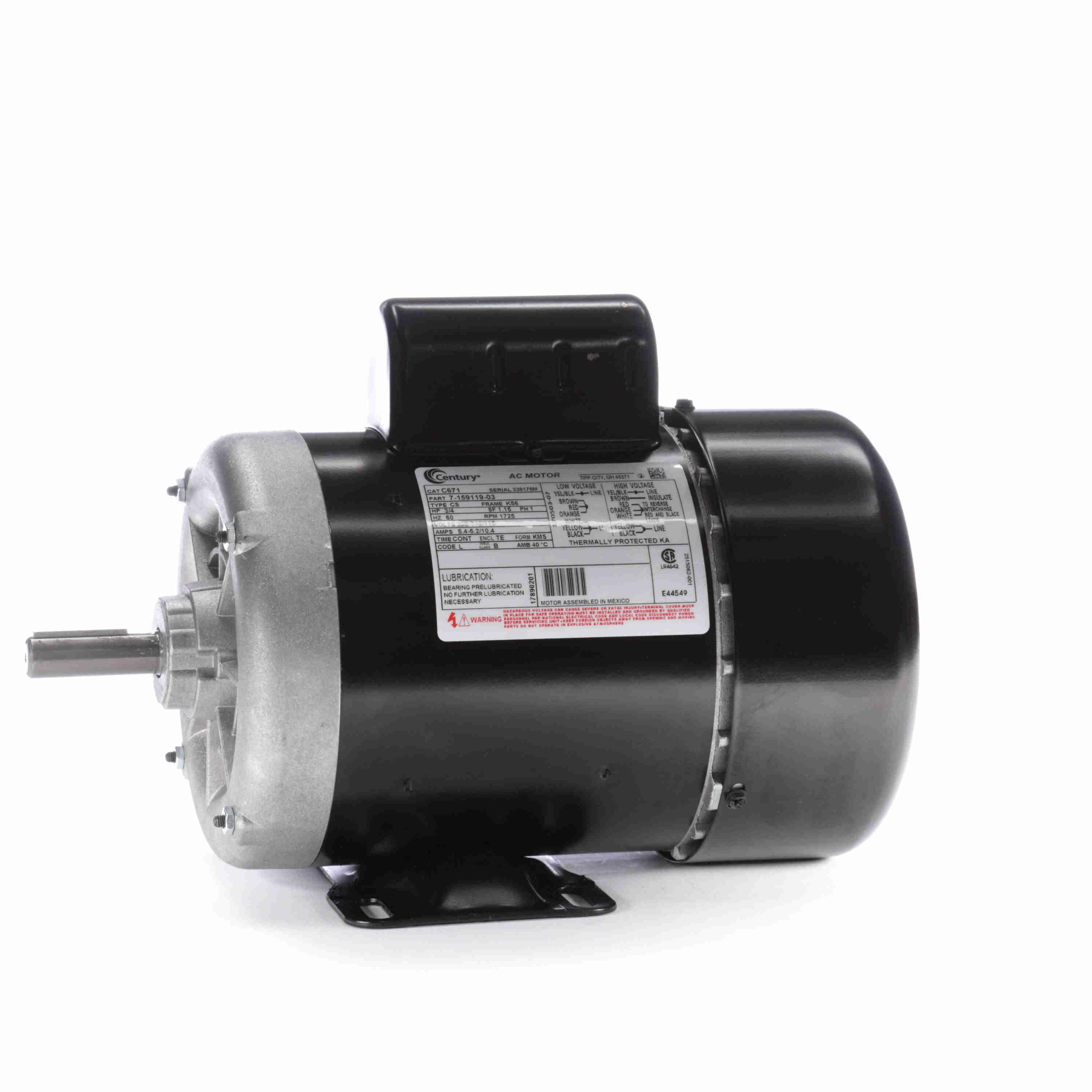

C671 – Century 3/4 HP General Purpose Motor, 1 phase, 1800 RPM, 208-230/115 V, 56 Frame, TEFC – C671

C671 – Century 3/4 HP General Purpose Motor, 1 phase, 1800 RPM, 208-230/115 V, 56 Frame, TEFC – C671

C671 Century Single Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Heavy gauge steel construction

Century Motors
Regal Beloit

Description

C671 – Century 3/4 HP General Purpose Motor, 1 phase, 1800 RPM, 208-230/115 V, 56 Frame, TEFC – C671

C671 Century Single Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674016591 Weight: 33 LB
Packaged Length: 15.5 IN Packaged Width: 10.5 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 208-230/115 V
Current: 5.4-5.2/10.4 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 1
Duty: Continuous Insulation Class: B
Frame: K56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.61 in
Frame Length: 5.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in
