Description

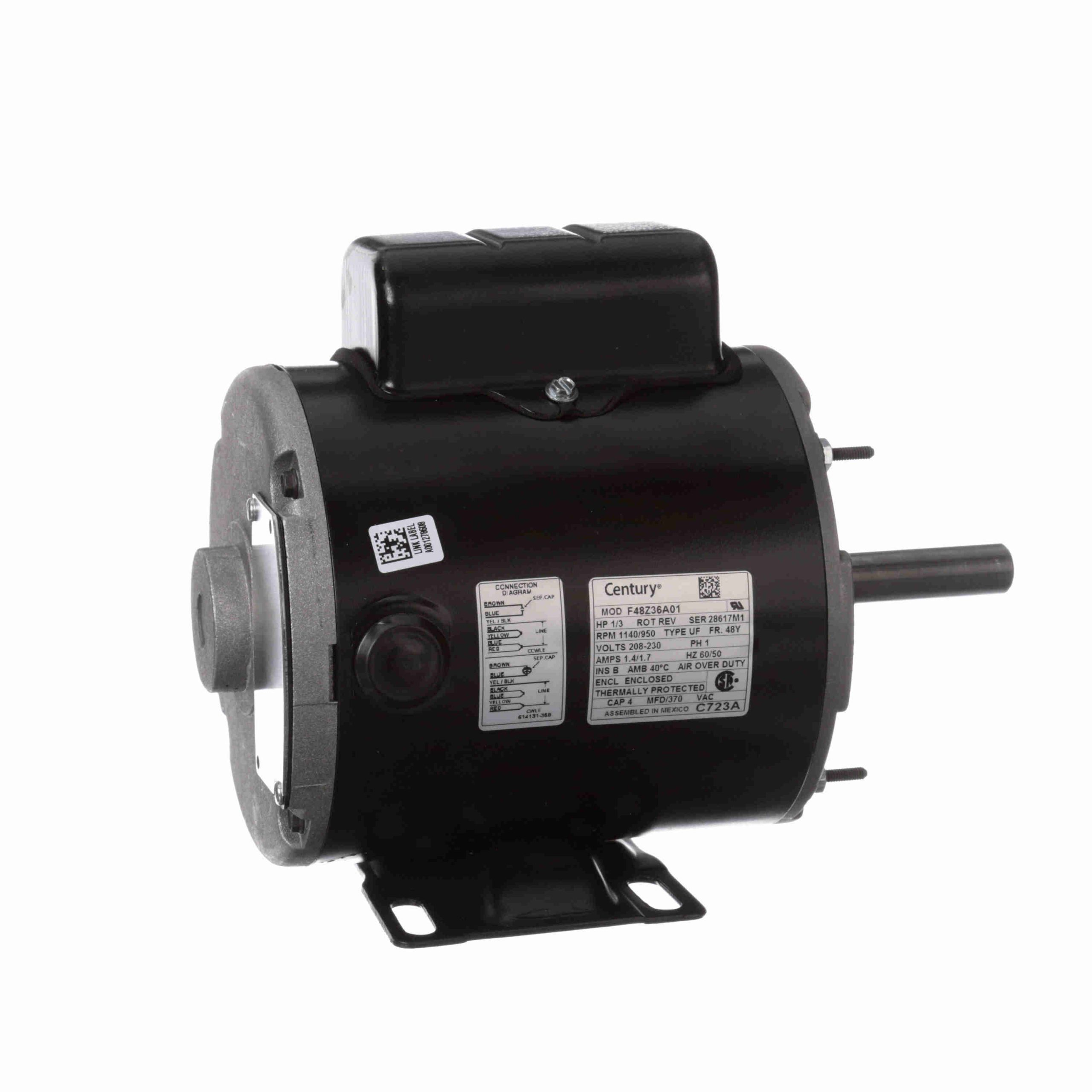

C723A – Century 1/3 HP Transformer Cooling Fan Motor, 1140/950 RPM, 2 Speed, 208-230 Volts, 48 Frame, TEAO – C723A
C723A Century Transformer Cooling Fan Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674016751 |
Weight: |
20 LB |
| Packaged Length: |
13 IN |
Packaged Width: |
7 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
1/3 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
1.4/1.7 A |
Speed: |
1140/950 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
F48Y |
Enclosure: |
Totally Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Reversible |
| Mounting: |
Rigid Base |
Motor Orientation: |
Any |
| Drive End Bearing: |
Ball |
Opp Drive End Bearing: |
Ball |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Keyed |
| Overall Length: |
9.67 in |
Frame Length: |
5.38 in |
| Shaft Diameter: |
0.625 in |
Shaft Extension: |
3.0 in |
Century Motors
Regal Beloit
