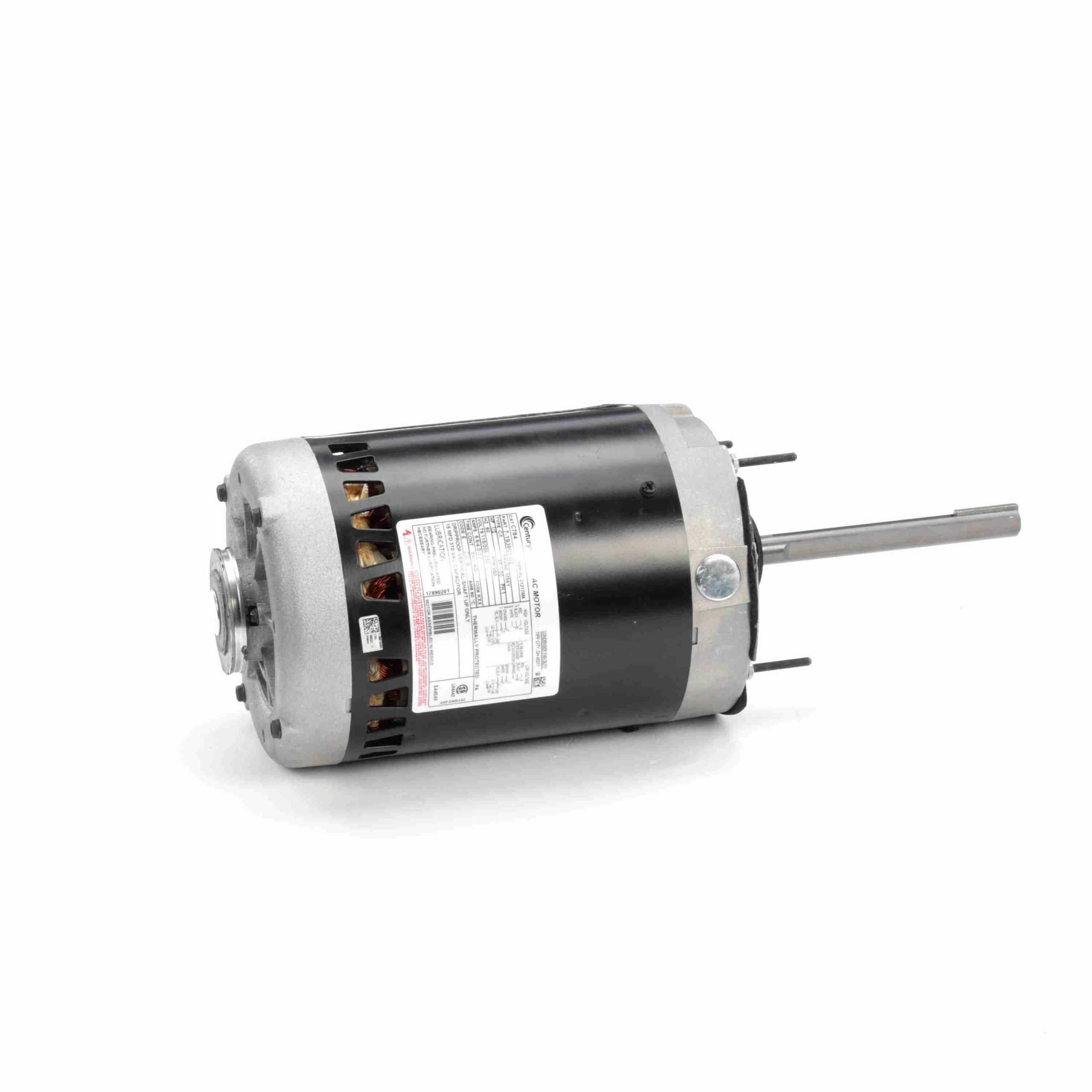

C784 – Century 1/2 HP Condenser Fans HVAC/R Motor, 1 phase, 900 RPM, 115/208-230 V, 56Y Frame, OPAO – C784
C784 Century Condenser Fans Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674016904 |
Weight: |
36 LB |
| Packaged Length: |
23 IN |
Packaged Width: |
10 IN |
| Packaged Height: |
9 IN |
Nameplate Specifications
| Output HP: |
1/2 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
6.6/4.0-3.3 A |
Speed: |
850 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
M56Y |
Enclosure: |
Open Air Over |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
60 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor, Single Or Dual Voltage |
Starting Method: |
Across The Line |
| Poles: |
8 |
Rotation: |
Reversible Clockwise |
| Mounting: |
Resilient Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
16.88 in |
| Frame Length: |
6.75 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
6.00 in |
