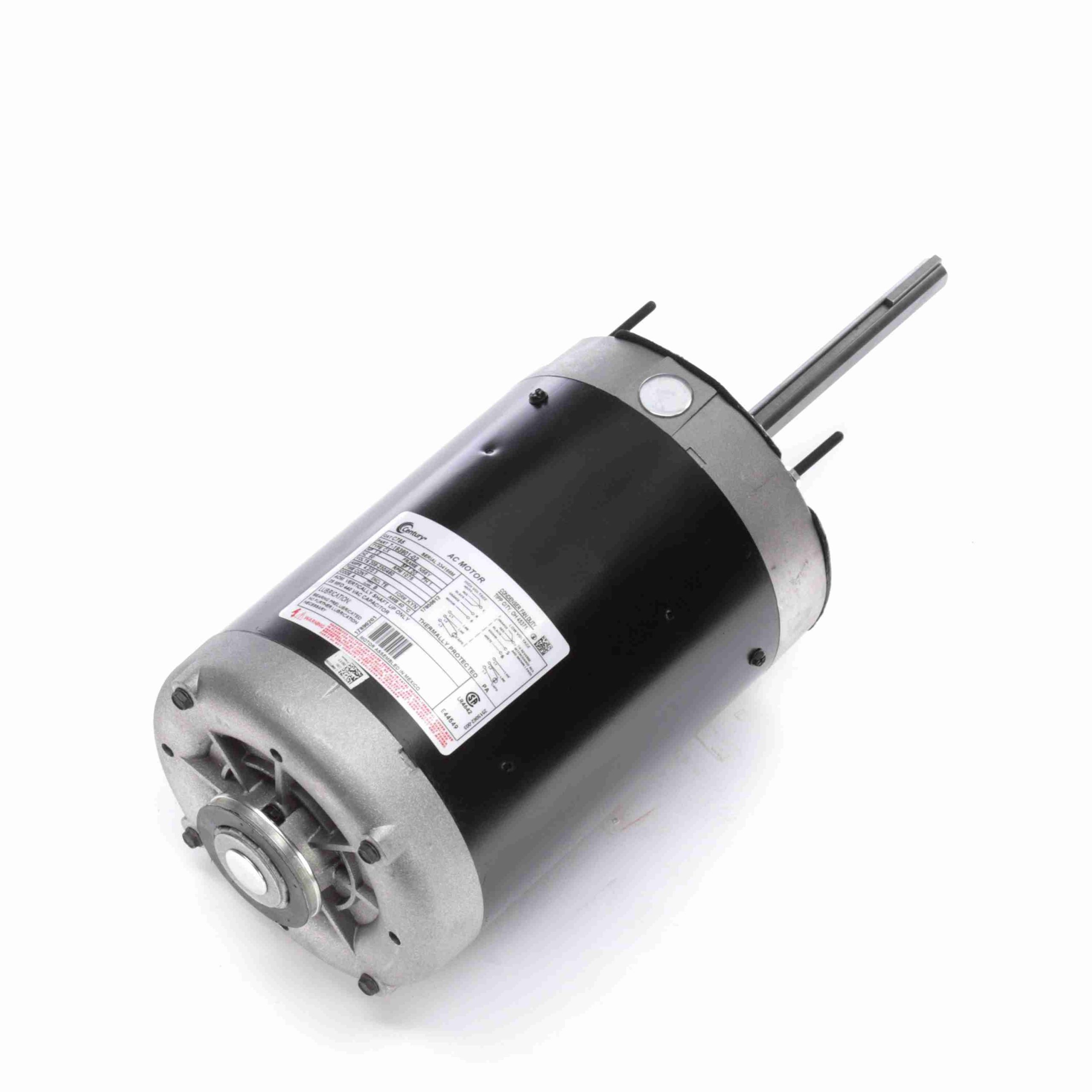

C785 – Century 1.0 HP Condenser Fans HVAC/R Motor, 1 phase, 1200 RPM, 208-230/460 V, 56Y Frame, TEAO – C785

C785 – Century 1.0 HP Condenser Fans HVAC/R Motor, 1 phase, 1200 RPM, 208-230/460 V, 56Y Frame, TEAO – C785

C785 Century Condenser Fans Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Double sealed ball bearings
  • Automatic reset thermal protector
  • Quick-connect design
  • 1″ (minimum) extended thru bolts
  • 5/8″ dia. Shaft with both keyway and flat

Century Motors
Regal Beloit

Description

C785 – Century 1.0 HP Condenser Fans HVAC/R Motor, 1 phase, 1200 RPM, 208-230/460 V, 56Y Frame, TEAO – C785

C785 Century Condenser Fans Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674016911 Weight: 40 LB
Packaged Length: 23 IN Packaged Width: 10 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 4.2/2.3 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: N56Y Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage Starting Method: Across The Line
Poles: 6 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 17.38 in
Frame Length: 7.25 in Shaft Diameter: 0.625 in
Shaft Extension: 6.00 in
