Description

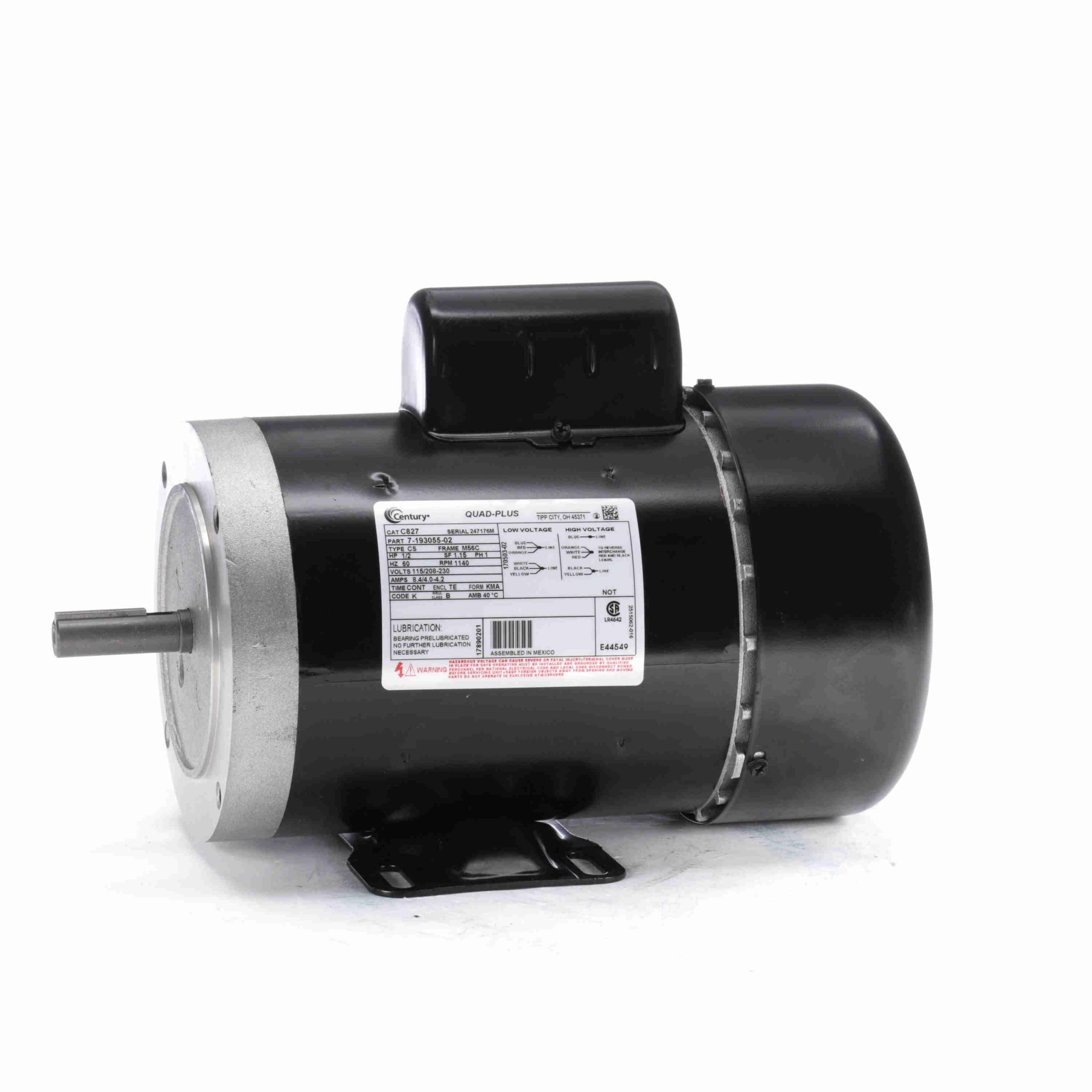

C827 – Century 1/2 HP General Purpose Motor, 1 phase, 1200 RPM, 115/208-230 V, 56C Frame, TEFC – C827
C827 Century Single Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674016980 |
Weight: |
35 LB |
| Packaged Length: |
15.5 IN |
Packaged Width: |
10.5 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
1/2 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
8.4/4.0-4.2 A |
Speed: |
1140 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
M56C |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
None |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Capacitor Start, Induction Run, Single Or Dual Voltage |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Reversible Counterclockwise |
| Mounting: |
Rigid Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
12.96 in |
| Frame Length: |
6.75 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.07 in |
Century Motors
Regal Beloit
