Description

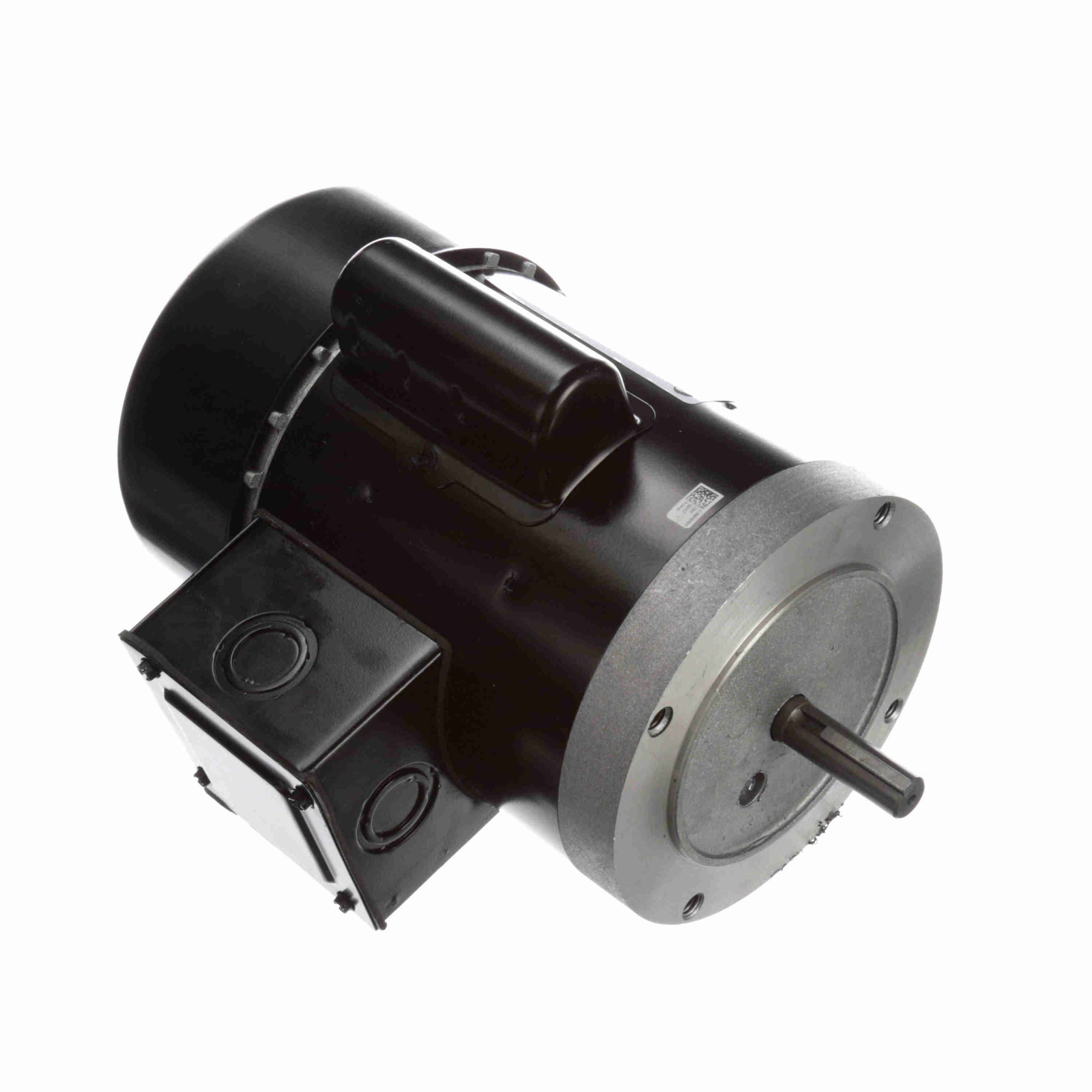

C865 – Century 1/4 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 48 Frame, TEFC – C865
C865 Century Single Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674068644 |
Weight: |
25 LB |
| Packaged Length: |
15.5 IN |
Packaged Width: |
10.5 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
1/4 Hp |
Output KW: |
0.19 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
5.6/2.8 A |
Speed: |
1725 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
48 |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
None |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Clockwise/Counterclockwise |
| Mounting: |
Resilient Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Flat |
Overall Length: |
12.28 in |
| Frame Length: |
5.94 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
1.6 in |
Century Motors
Regal Beloit
