Description

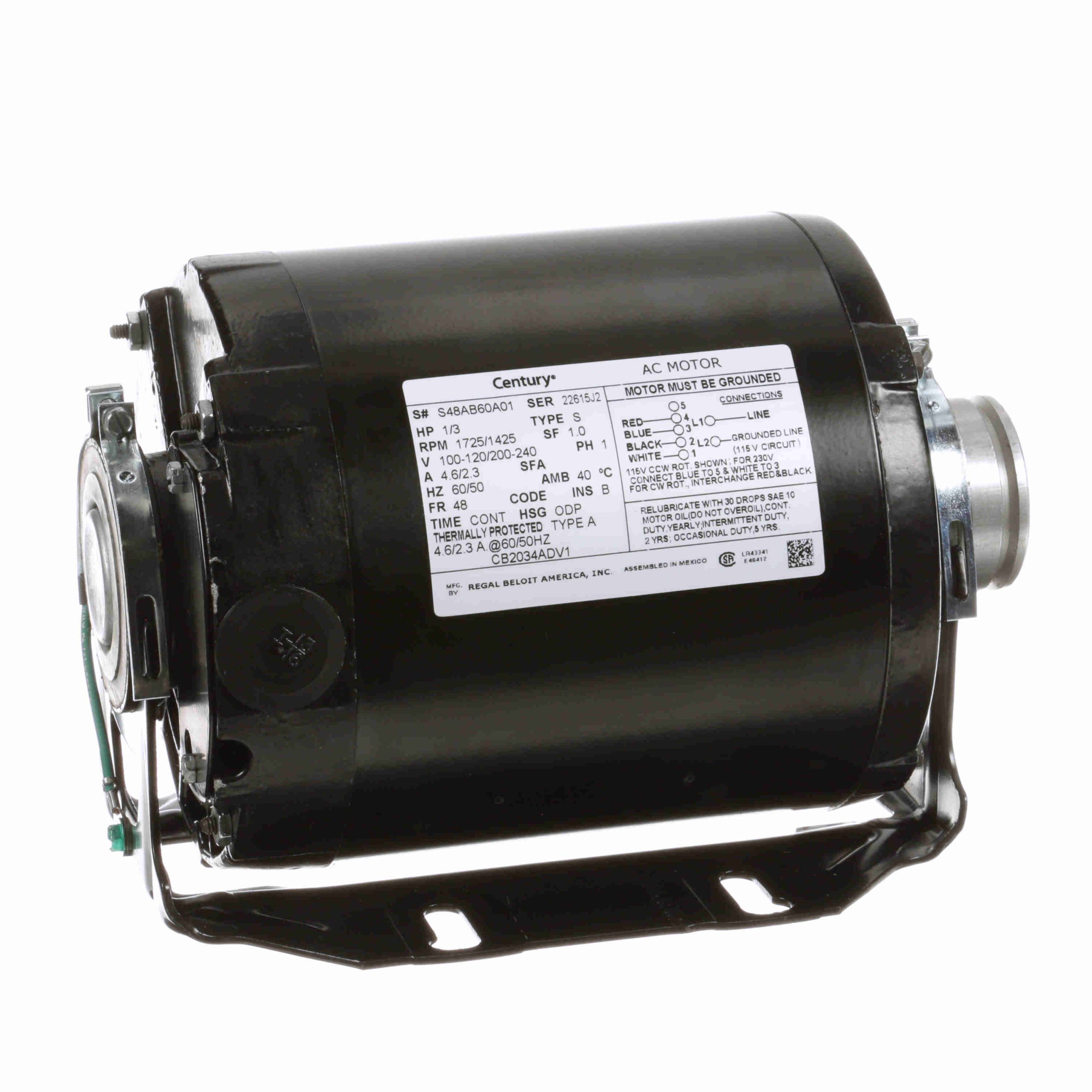

CB2034ADV1 – Century 1/3 HP 2 speed Carbonator Pump Motor, 1 phase, 1800/1800 RPM, 100-120/200-240 V, 48 Frame, ODP – CB2034ADV1
CB2034ADV1 Century Carbonator Pump Motors
General Specifications
| UPC: |
786674060006 |
Weight: |
25 LB |
| Packaged Length: |
11 IN |
Packaged Width: |
8 IN |
| Packaged Height: |
9 IN |
Nameplate Specifications
| Output HP: |
1/3 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60/50 Hz |
Voltage: |
100-120/200-240 V |
| Current: |
4.6/2.3 A |
Speed: |
1725/1425 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
48 |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
No |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Mounting: |
Resilient Base |
Drive End Bearing: |
Sleeve |
| Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Slot |
Overall Length: |
8.57 in |
| Frame Length: |
4.94 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
0.54 in |
