Description

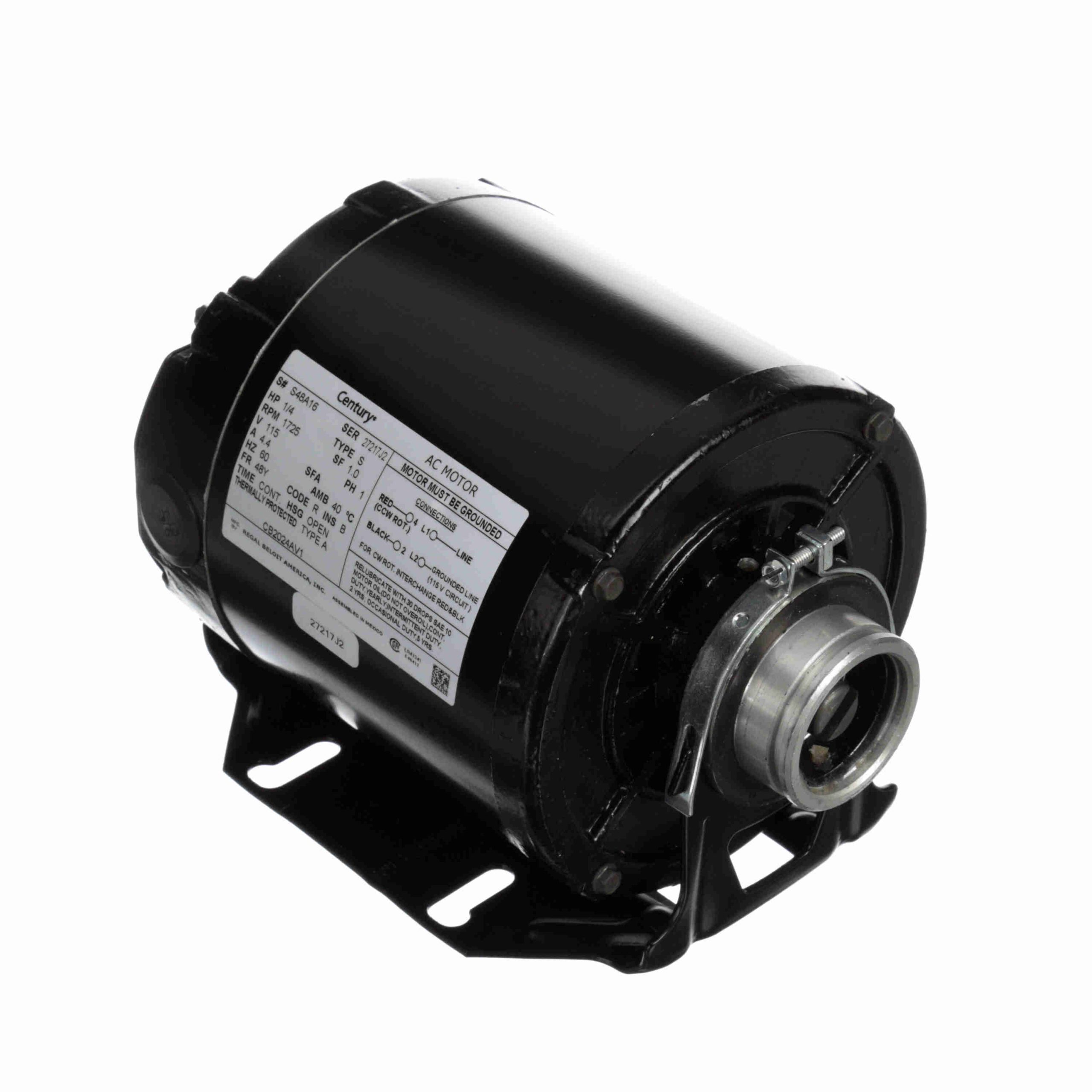

CB2034ARB – Century 1/3 HP Carbonator Pump Motor, 1 phase, 1800 RPM, 115 V, 48Y Frame, OPEN – CB2034ARB
CB2034ARB Century Carbonator Pump Motors
General Specifications
| UPC: |
786674059918 |
Weight: |
14 LB |
| Packaged Length: |
11 IN |
Packaged Width: |
8 IN |
| Packaged Height: |
9 IN |
Nameplate Specifications
| Output HP: |
1/3 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
6.2 A |
Speed: |
1725 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
48Y |
Enclosure: |
Open Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
No |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise |
| Mounting: |
Rigid base |
Drive End Bearing: |
Sleeve |
| Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Slot |
Overall Length: |
8.55 in |
| Frame Length: |
4.94 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
0.55 in |
Century Motors
Regal Beloit
