Description

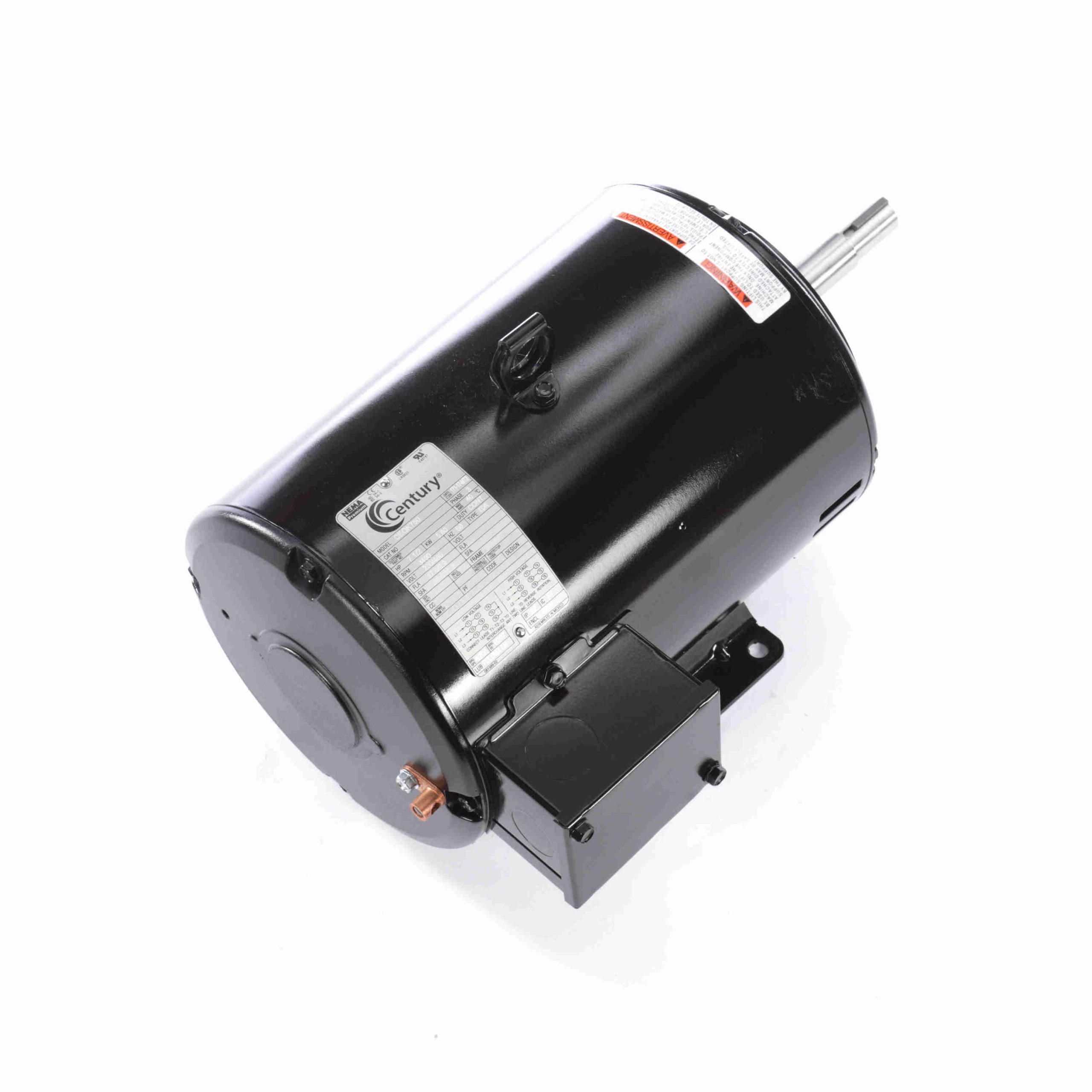

CEQK750 – Century 7 1/2 HP Pool Pump Motor, 3 phase, 3600 RPM, 230/460 V, 184JMZ Frame, ODP – CEQK750
CEQK750 Century Induction Pool Pump Motors
General Specifications
| UPC: |
786674071989 |
Weight: |
119 LB |
| Packaged Length: |
17.88 IN |
Packaged Width: |
13 IN |
| Packaged Height: |
10.84 IN |
Nameplate Specifications
| Output HP: |
7 1/2 Hp |
Output KW: |
5.6 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
17.8/8.9 A |
Speed: |
3490 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
184JMZ |
Enclosure: |
Drip Proof |
| Thermal Protection: |
None |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
Technical Specifications
| Electrical Type: |
Polyphase |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Reversible |
| Mounting: |
Special/Non-Standard |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Ball |
Opp Drive End Bearing: |
Ball |
| Frame Material: |
Steel |
Shaft Type: |
7/8 Keyed |
| Overall Length: |
17.61 in |
Frame Length: |
11.00 in |
| Shaft Diameter: |
1.000 in |
Shaft Extension: |
4.25 in |
Century Motors
Regal Beloit
