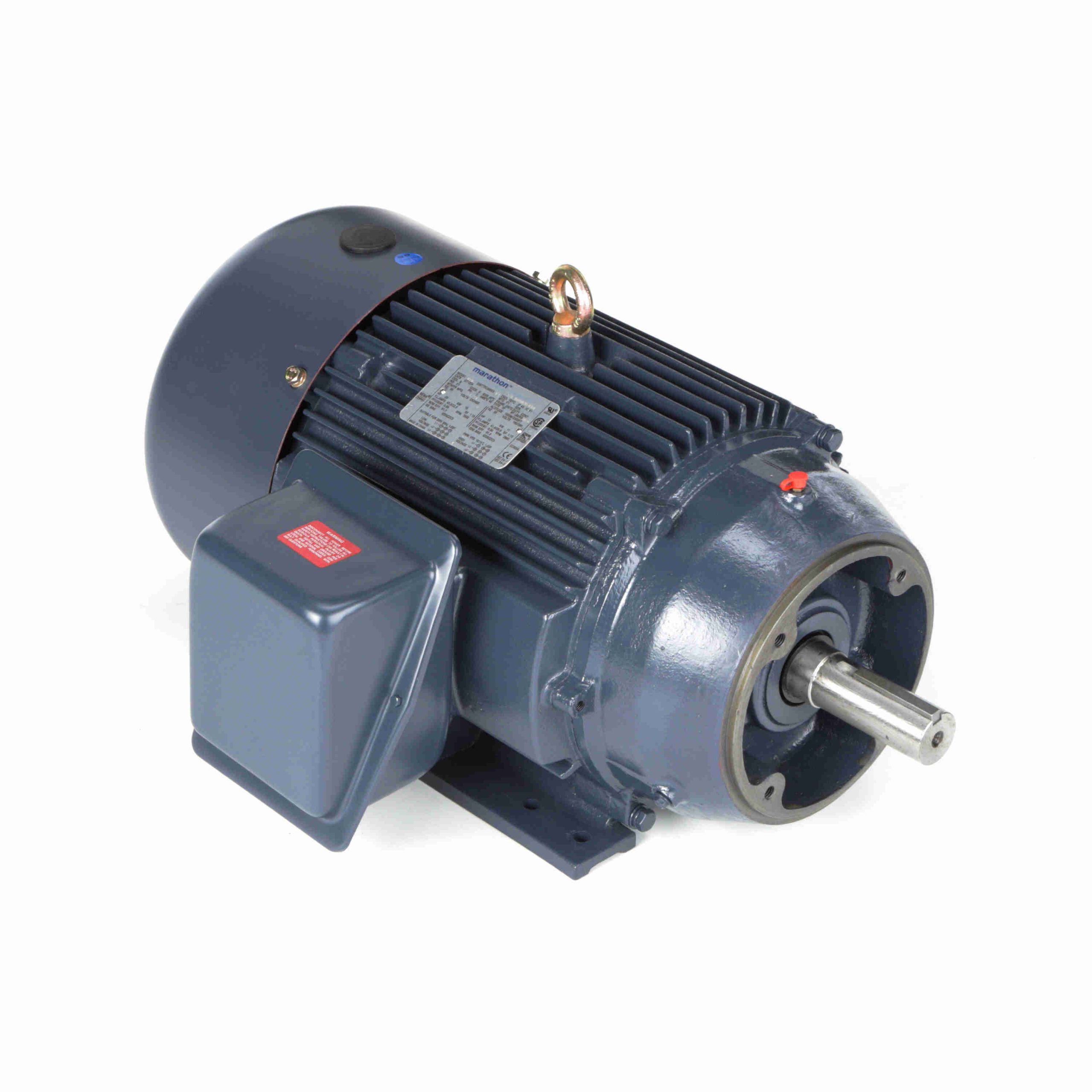

CF117 – Century 10 HP General Purpose Motor, 3 phase, 1200 RPM, 208-230/460 V, 256TC Frame, TEFC – CF117

CF117 – Century 10 HP General Purpose Motor, 3 phase, 1200 RPM, 208-230/460 V, 256TC Frame, TEFC – CF117

CF117 Century Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2180
  • Inverter duty 10:1 variable torque and 10:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Standard assembly F1, reversible to F2 assembly

Century Motors
Regal Beloit

Original price was: $4,205.00.Current price is: $2,997.32.

Description

CF117 – Century 10 HP General Purpose Motor, 3 phase, 1200 RPM, 208-230/460 V, 256TC Frame, TEFC – CF117

CF117 Century Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674065902 Weight: 313 LB
Packaged Length: 32.48 IN Packaged Width: 24.72 IN
Packaged Height: 22.05 IN

Nameplate Specifications

Output HP: 10 Hp Output KW: 7.5 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 28/14 A Speed: 1180 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: F
Frame: 256TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: None Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: POLYPHASE Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 27.76 in
Frame Length: 12.08 in Shaft Diameter: 1.625 in
Shaft Extension: 4.00 in
