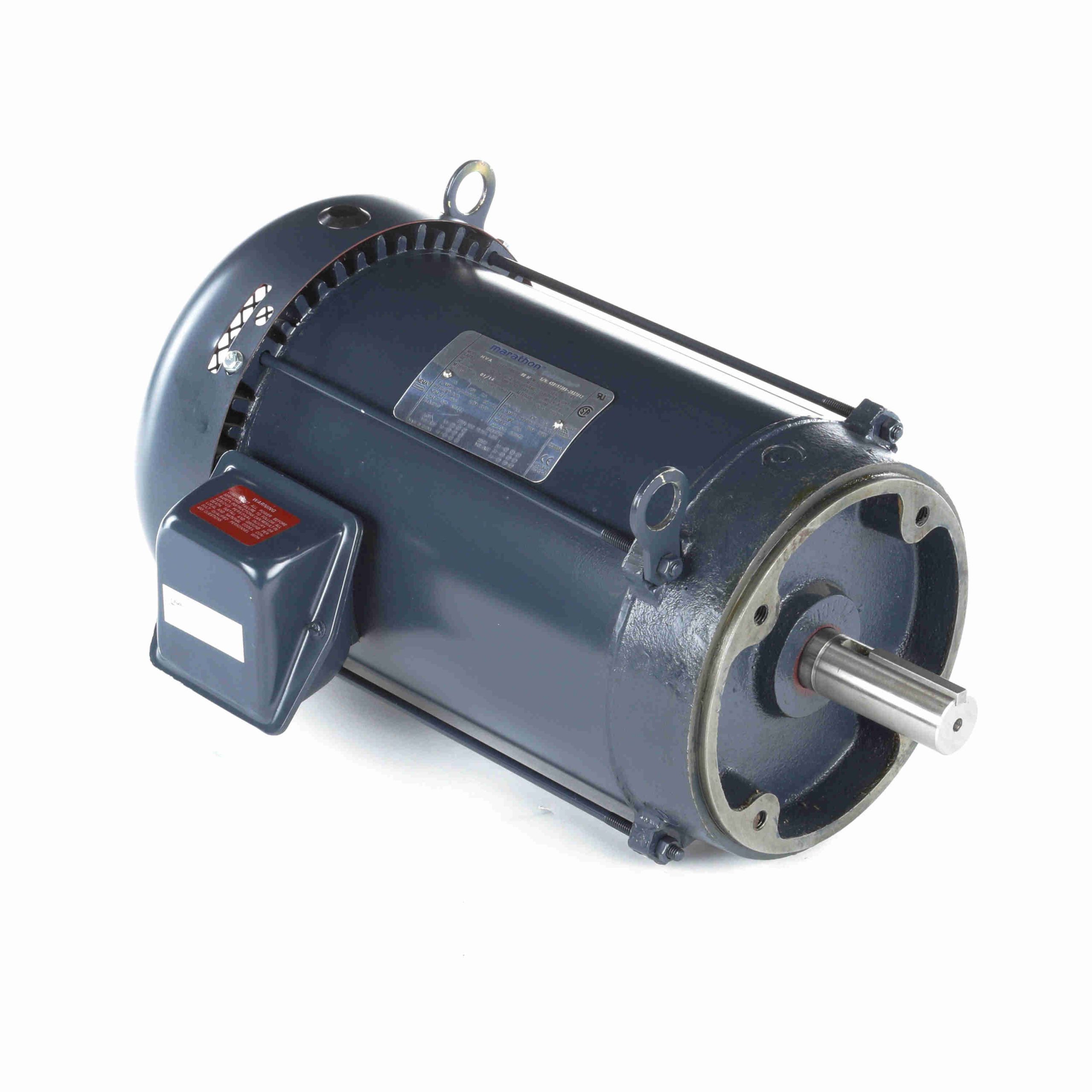

CF119 – Century 10 HP General Purpose Motor, 3 phase, 3600 RPM, 208-230/460 V, 215TC Frame, TEFC – CF119

CF119 – Century 10 HP General Purpose Motor, 3 phase, 3600 RPM, 208-230/460 V, 215TC Frame, TEFC – CF119

CF119 Century Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2182
  • Inverter duty 10:1 variable torque and 10:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Standard assembly F1, reversible to F2 assembly

Century Motors
Regal Beloit

Original price was: $2,454.00.Current price is: $1,749.21.

Description

CF119 – Century 10 HP General Purpose Motor, 3 phase, 3600 RPM, 208-230/460 V, 215TC Frame, TEFC – CF119

CF119 Century Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674061508 Weight: 153 LB
Packaged Length: 22.4 IN Packaged Width: 14.73 IN
Packaged Height: 16.83 IN

Nameplate Specifications

Output HP: 10 Hp Output KW: 7.5 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 22.8/11.4 A Speed: 3540 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: F
Frame: 215TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: None Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: POLYPHASE Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 21.02 in
Frame Length: 11.15 in Shaft Diameter: 1.375 in
Shaft Extension: 3.38 in
