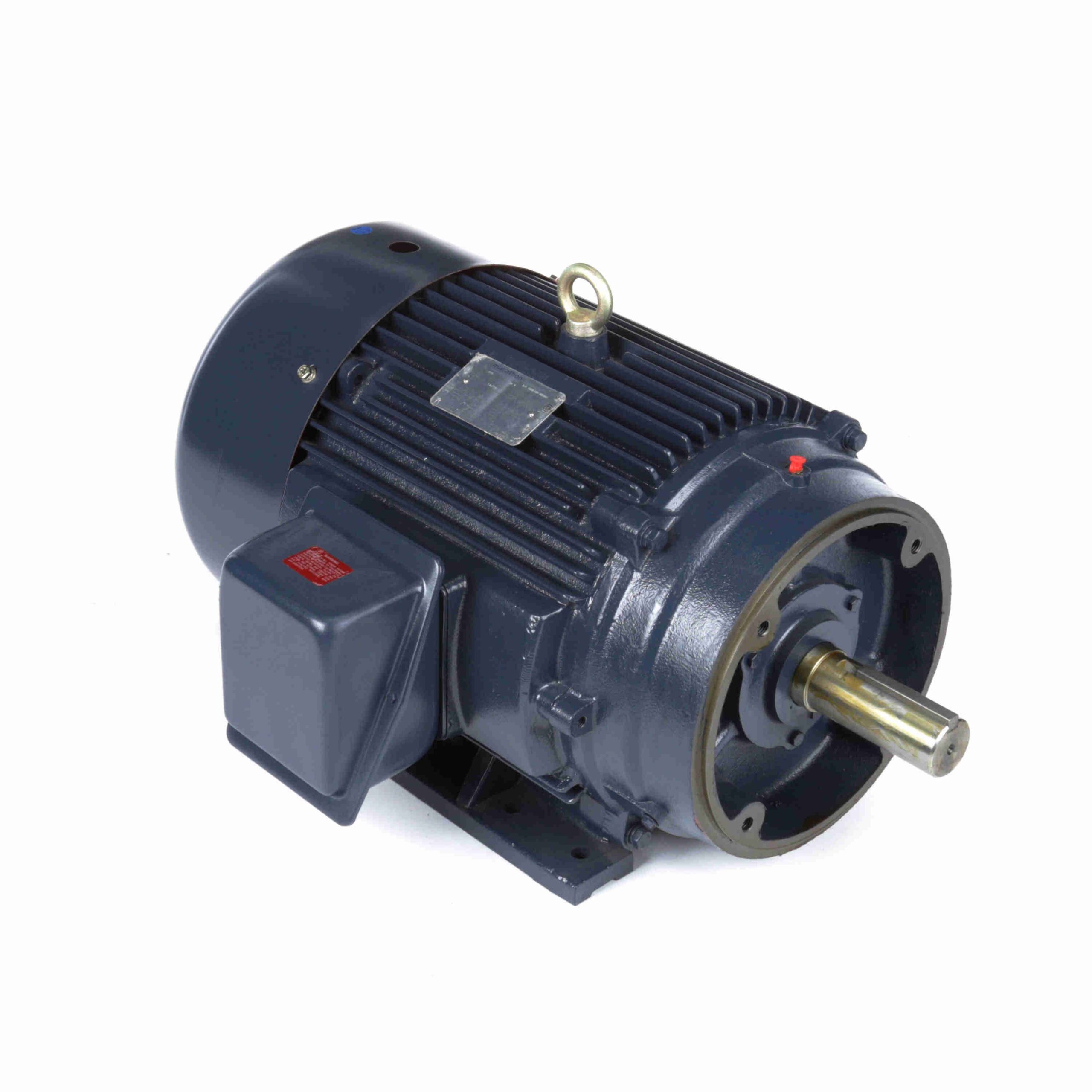

CFR30 – Century 30 HP General Purpose Motor, 3 phase, 1200 RPM, 208-230/460 V, 326TC Frame, TEFC – CFR30

CFR30 – Century 30 HP General Purpose Motor, 3 phase, 1200 RPM, 208-230/460 V, 326TC Frame, TEFC – CFR30

CFR30 Century Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2206
  • Inverter duty 10:1 variable torque and 10:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Standard assembly F1, reversible to F2 assembly

Century Motors
Regal Beloit

Original price was: $9,876.00.Current price is: $7,039.61.

Description

CFR30 – Century 30 HP General Purpose Motor, 3 phase, 1200 RPM, 208-230/460 V, 326TC Frame, TEFC – CFR30

CFR30 Century Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674063373 Weight: 692 LB
Packaged Length: 38.58 IN Packaged Width: 27.8 IN
Packaged Height: 28.15 IN

Nameplate Specifications

Output HP: 30 Hp Output KW: 22.4 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 40 A Speed: 1190 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: F
Frame: 326TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: None Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: POLYPHASE Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: Keyed Overall Length: 33.86 in
Frame Length: 16.14 in Shaft Diameter: 2.125 in
Shaft Extension: 5.25 in
