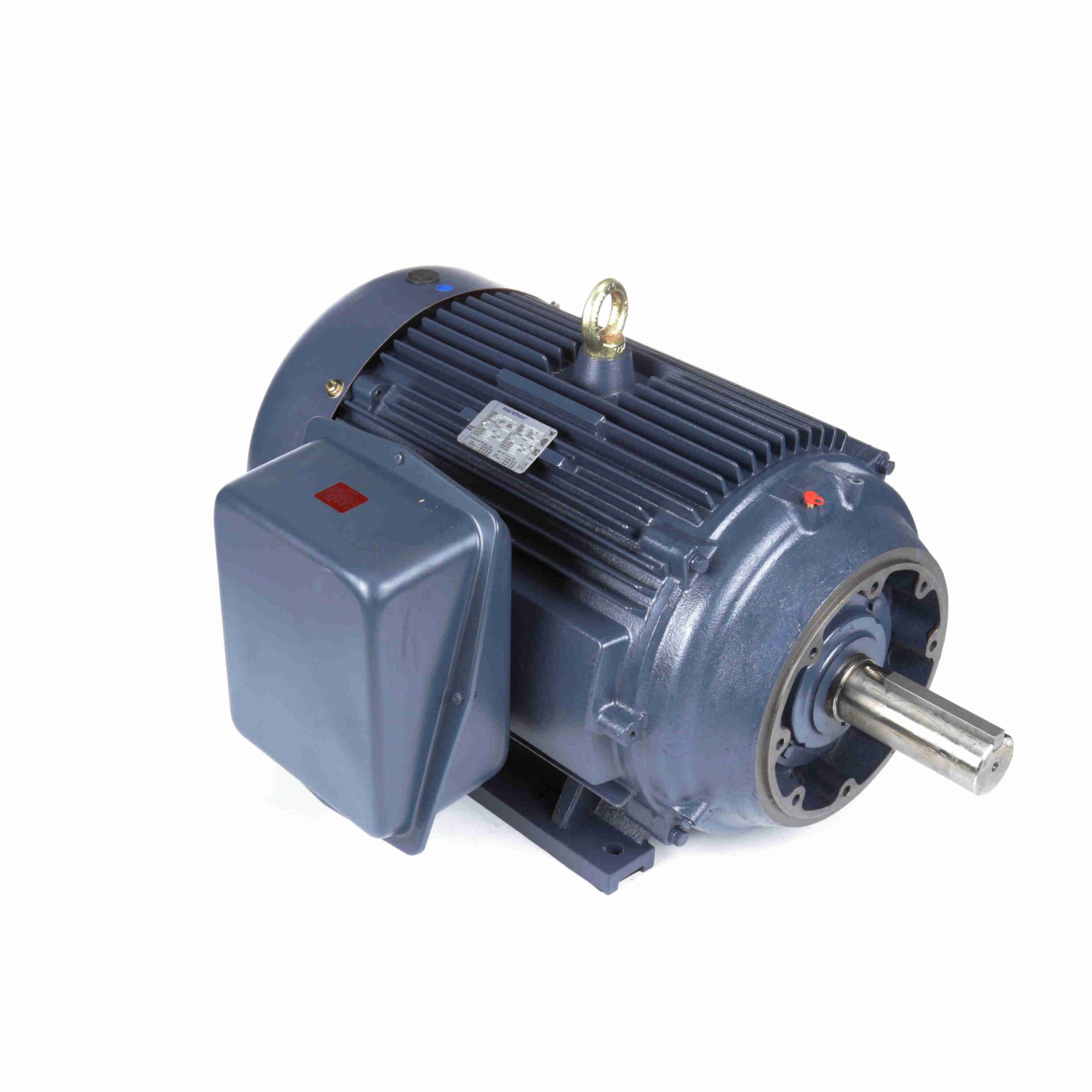

CFR39 – Century 60 HP General Purpose Motor, 3 phase, 1200 RPM, 208-230/460 V, 404TC Frame, TEFC – CFR39

CFR39 – Century 60 HP General Purpose Motor, 3 phase, 1200 RPM, 208-230/460 V, 404TC Frame, TEFC – CFR39

CFR39 Century Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2211
  • Inverter duty 10:1 variable torque and 10:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Standard assembly F1, reversible to F2 assembly

Century Motors
Regal Beloit

Original price was: $17,559.00.Current price is: $12,516.06.

Description

CFR39 – Century 60 HP General Purpose Motor, 3 phase, 1200 RPM, 208-230/460 V, 404TC Frame, TEFC – CFR39

CFR39 Century Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674063403 Weight: 0 LB
Packaged Length: 46.78 IN Packaged Width: 35.43 IN
Packaged Height: 33.63 IN

Nameplate Specifications

Output HP: 60 Hp Output KW: 44.8 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 71.5 A Speed: 1188 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: F
Frame: 404TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: None Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: POLYPHASE Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: Keyed Overall Length: 12.25 in
Frame Length: 21.65 in Shaft Diameter: 2.875 in
Shaft Extension: 7.25 in
