Description

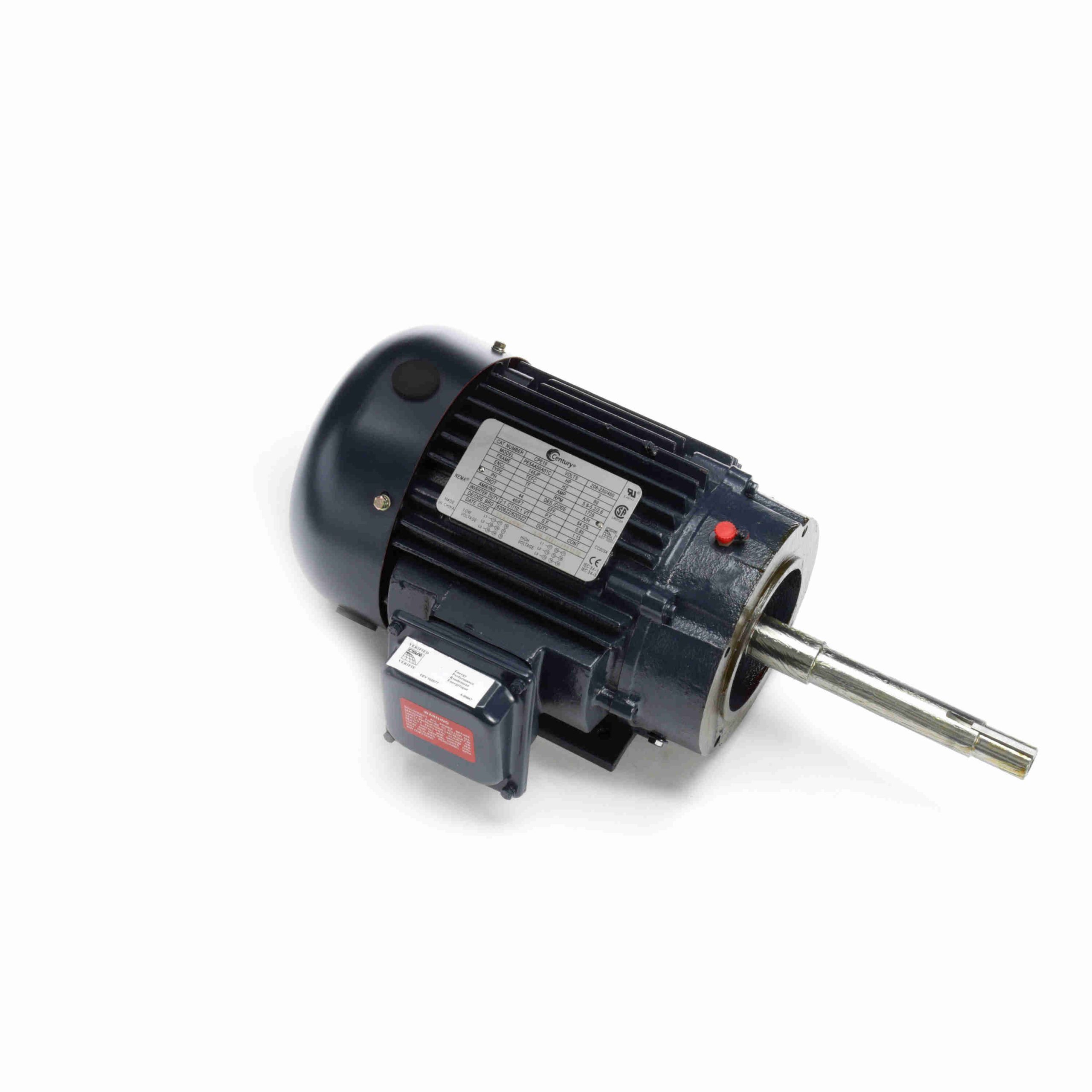

CPE19 – Century 2 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 208-230/460 V, 145JP Frame, TEFC – CPE19
CPE19 Century JP Motors
General Specifications
| UPC: |
786674066626 |
Weight: |
71 LB |
| Packaged Length: |
21.47 IN |
Packaged Width: |
12.8 IN |
| Packaged Height: |
9.81 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230/460 V |
| Current: |
5.6-5.1/2.55 A |
Speed: |
1728 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
145JP |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
None |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
Technical Specifications
| Electrical Type: |
POLYPHASE |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Mounting: |
Rigid Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
Keyed |
Overall Length: |
19.70 in |
| Frame Length: |
6.75 in |
Shaft Diameter: |
1.156 in |
| Shaft Extension: |
7.31 in |
