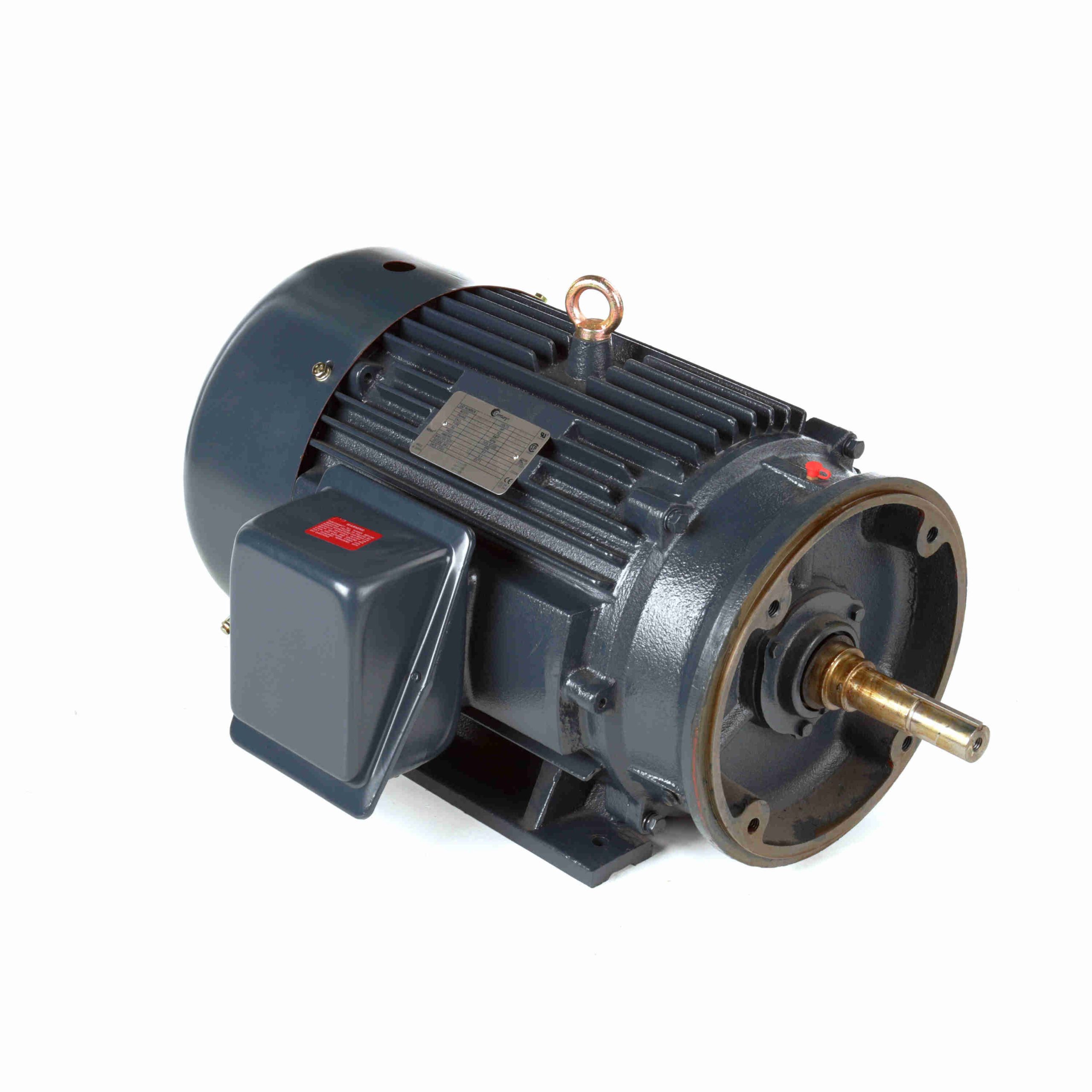

CPE52 – Century 25 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 208-230/460 V, 284JM Frame, TEFC – CPE52

CPE52 – Century 25 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 208-230/460 V, 284JM Frame, TEFC – CPE52

CPE52 Century JM Motors

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2026
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power

Century Motors
Regal Beloit

Description

CPE52 – Century 25 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 208-230/460 V, 284JM Frame, TEFC – CPE52

CPE52 Century JM Motors

General Specifications

UPC: 786674064899 Weight: 482 LB
Packaged Length: 35.65 IN Packaged Width: 25.51 IN
Packaged Height: 25.93 IN

Nameplate Specifications

Output HP: 25 Hp Output KW: 18.7 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 34 A Speed: 3555 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: F
Frame: 284JM Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: None Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: POLYPHASE Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: Keyed Overall Length: 30.92 in
Frame Length: 14.56 in Shaft Diameter: 1.75 in
Shaft Extension: 5.25 in
