Description

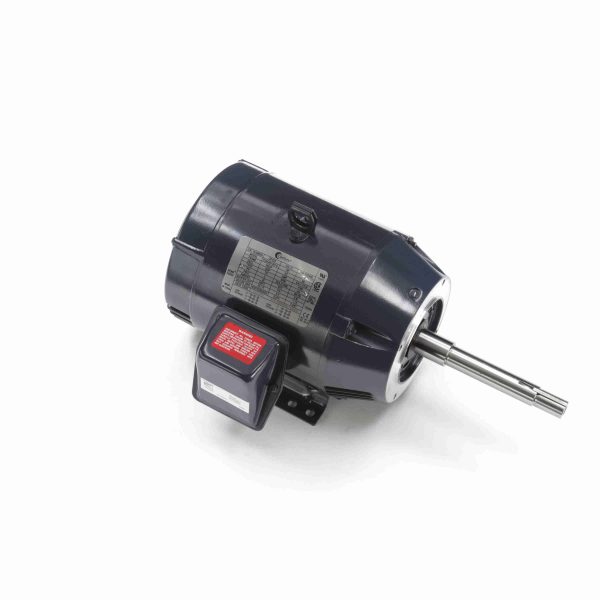

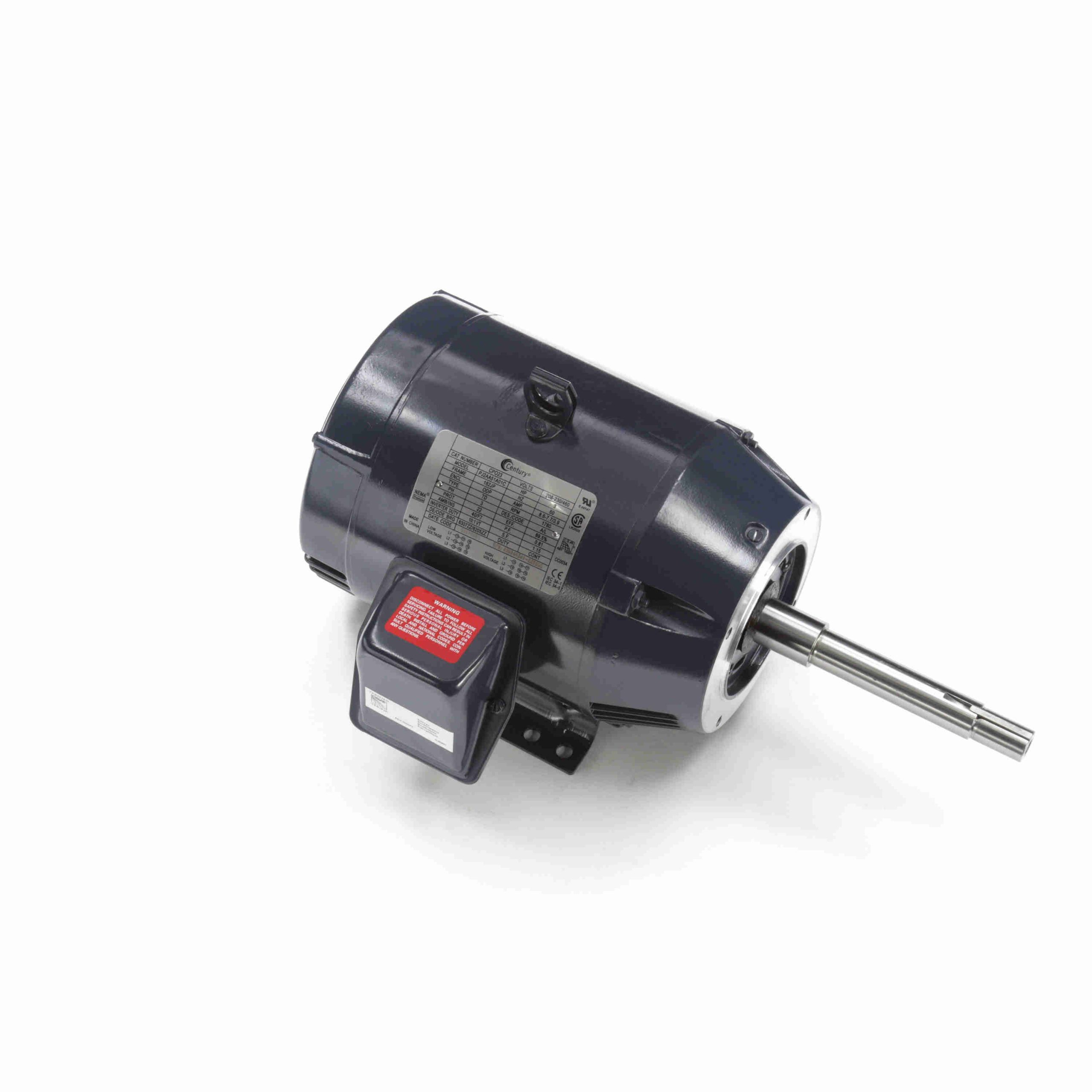

CPO23 – Century 3 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 208-230/460 V, 182JP Frame, ODP – CPO23
CPO23 Century JP Motors
General Specifications
| UPC: |
786674066367 |
Weight: |
76 LB |
| Packaged Length: |
20.82 IN |
Packaged Width: |
12.99 IN |
| Packaged Height: |
16.24 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230/460 V |
| Current: |
8.4-7.6/3.8 A |
Speed: |
1762 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
182JP |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
None |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
Technical Specifications
| Electrical Type: |
POLYPHASE |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Mounting: |
Rigid Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
14.64 in |
| Frame Length: |
6.73 in |
Shaft Diameter: |
1.249 in |
| Shaft Extension: |
4.25 in |
