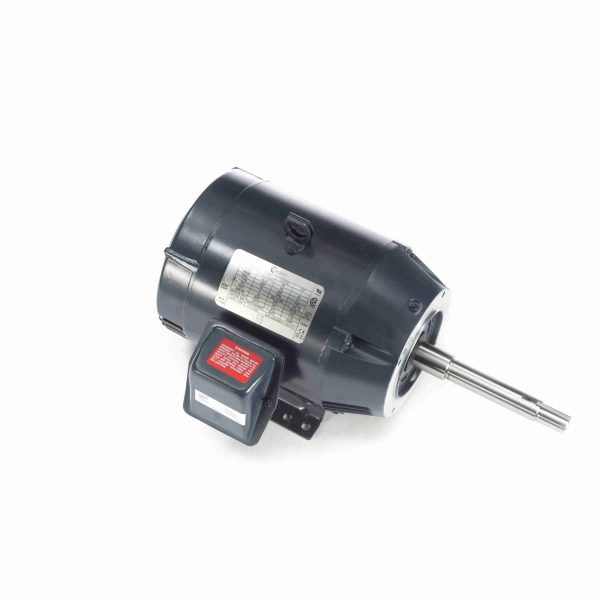

CPO25 – Century 3 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 575 V, 182JP Frame, ODP – CPO25

CPO25 – Century 3 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 575 V, 182JP Frame, ODP – CPO25

CPO25 Century JP Motors

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2042
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power

Century Motors
Regal Beloit

Description

CPO25 – Century 3 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 575 V, 182JP Frame, ODP – CPO25

CPO25 Century JP Motors

General Specifications

UPC: 786674066374 Weight: 77 LB
Packaged Length: 20.82 IN Packaged Width: 12.99 IN
Packaged Height: 16.24 IN

Nameplate Specifications

Output HP: 3 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 575 V
Current: 3.04 A Speed: 1762 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: F
Frame: 182JP Enclosure: Open Drip Proof
Thermal Protection: None Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: POLYPHASE Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.64 in
Frame Length: 6.73 in Shaft Diameter: 1.249 in
Shaft Extension: 4.25 in
