Description

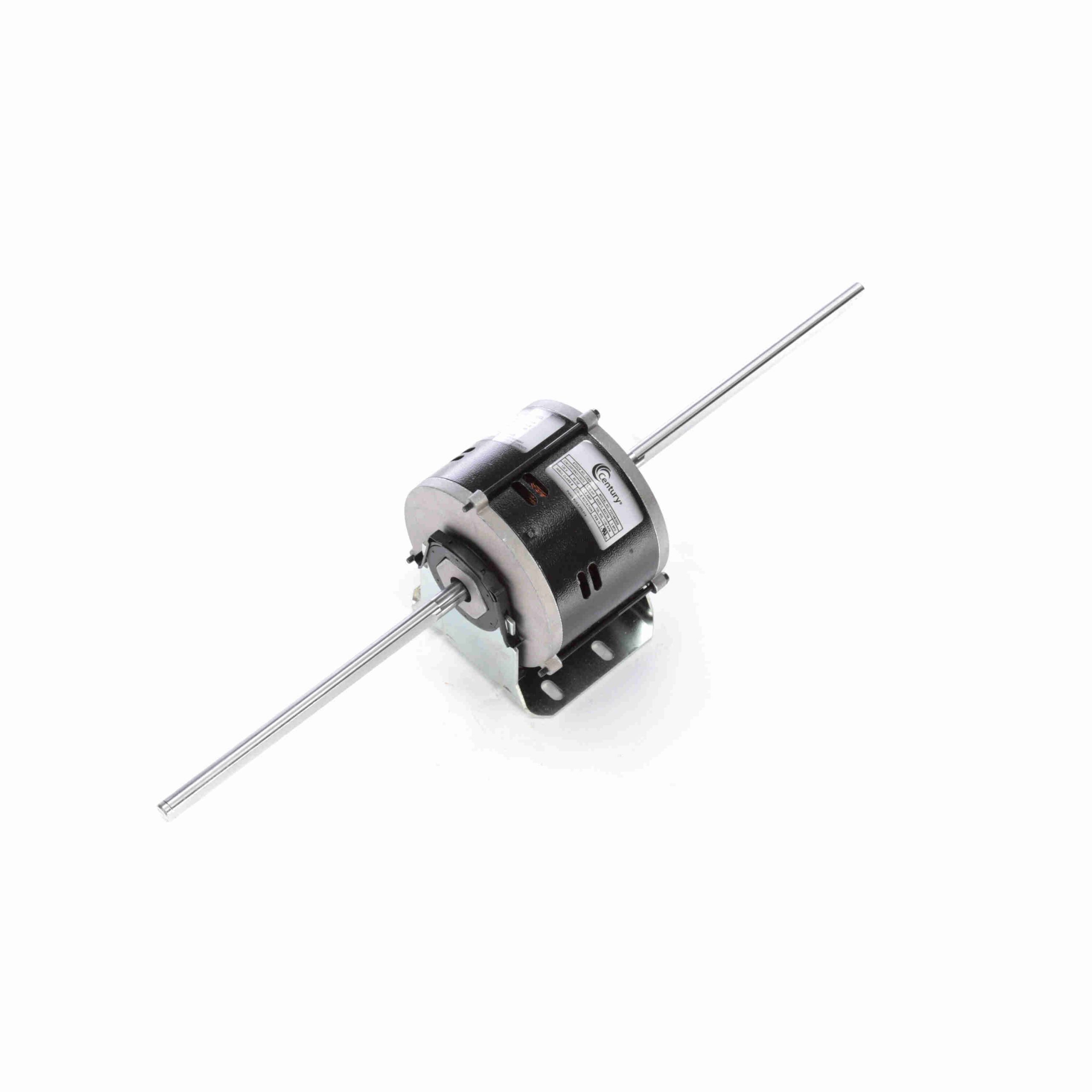

CS89 – Century 1/10 HP Fan Coil / Room Air Conditioner Motor, 1100- 900- 700 RPM, 3 Speed, 120 Volts, 42 Frame, OAO – CS89
CS89 Century Fan Coil/Room Air Conditioner Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674055996 |
Weight: |
11 LB |
| Packaged Length: |
25.4 IN |
Packaged Width: |
10 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
1/10 Hp |
Output KW: |
0.07 kW |
| Frequency: |
60 Hz |
Voltage: |
120 V |
| Current: |
1.6 A |
Speed: |
1100, 900, 700 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
42 |
Enclosure: |
Open Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Electronically Commutated Motor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Clockwise Lead End |
| Mounting: |
Resilient Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Steel |
| Shaft Type: |
Flat |
Frame Length: |
3.80 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
9.3 X 1/2 X 9.3 in |
Century Motors
Regal Beloit
