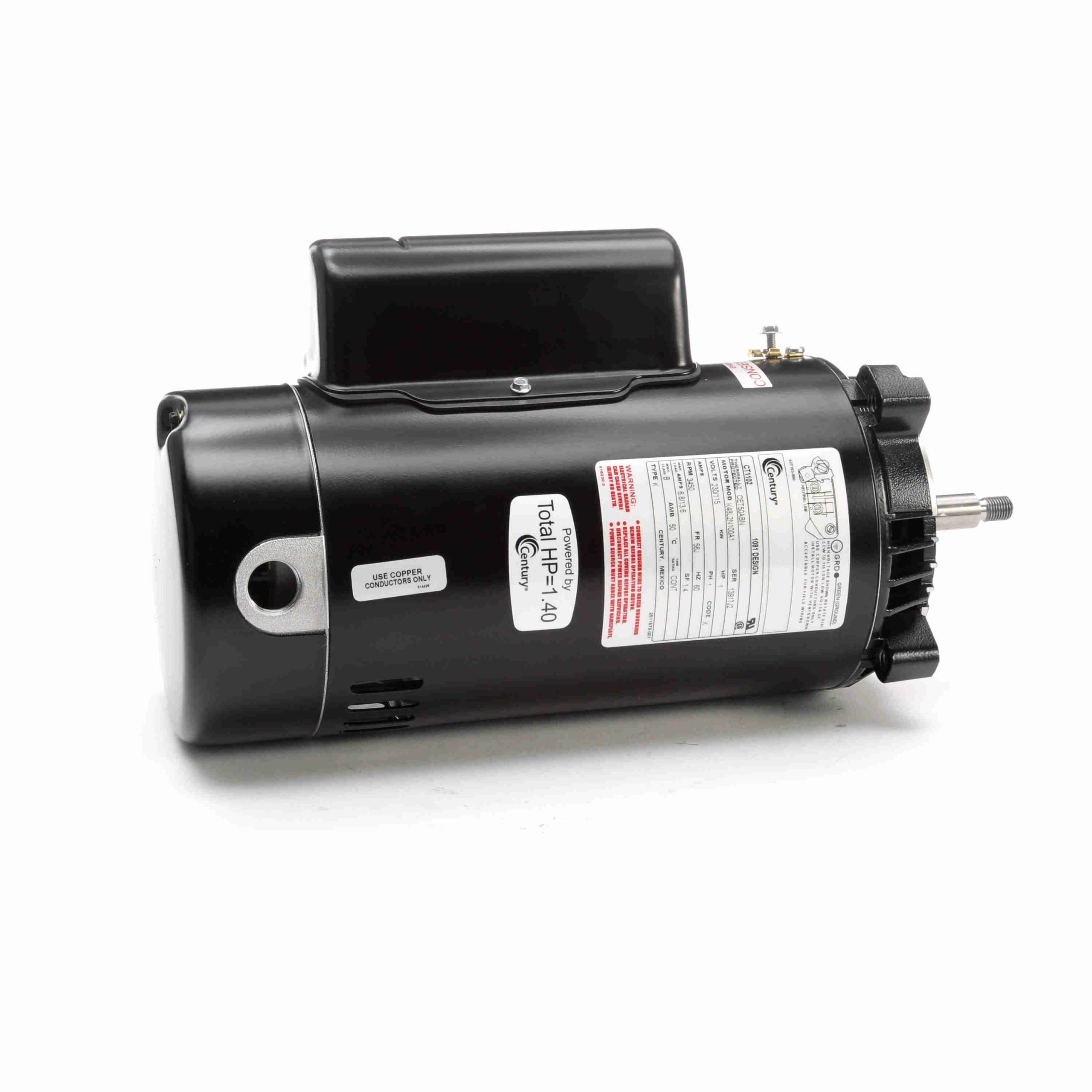

CT1102 – Century 1 HP Pool Pump Motor, 1 phase, 3600 RPM, 230/115 V, 56J Frame, ODP – CT1102

CT1102 – Century 1 HP Pool Pump Motor, 1 phase, 3600 RPM, 230/115 V, 56J Frame, ODP – CT1102

CT1102 Century Induction Pool Pump Motors

  • Sealed Ball Bearings
  • Capacitor Start-Capacitor Run
  • Sealed Switch Design
  • 50°C Ambient
  • 303 Stainless Shaft
  • UL 1081 Design
  • 304 Bearing Shaft End
  • Threaded Shaft
  • Energy Efficient

Century Motors
Regal Beloit

Description

CT1102 – Century 1 HP Pool Pump Motor, 1 phase, 3600 RPM, 230/115 V, 56J Frame, ODP – CT1102

CT1102 Century Induction Pool Pump Motors

General Specifications

UPC: 786674017260 Weight: 27 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/115 V
Current: 6.8/13.6 A Speed: 3450 rpm
Service Factor: 1.4 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56J Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Poles: 2
Rotation: Counterclockwise Pump End Mounting: C Face
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 14.70 in
Frame Length: 8.75 in Shaft Diameter: 0.625 in
Shaft Extension: 2.57 in
