Description

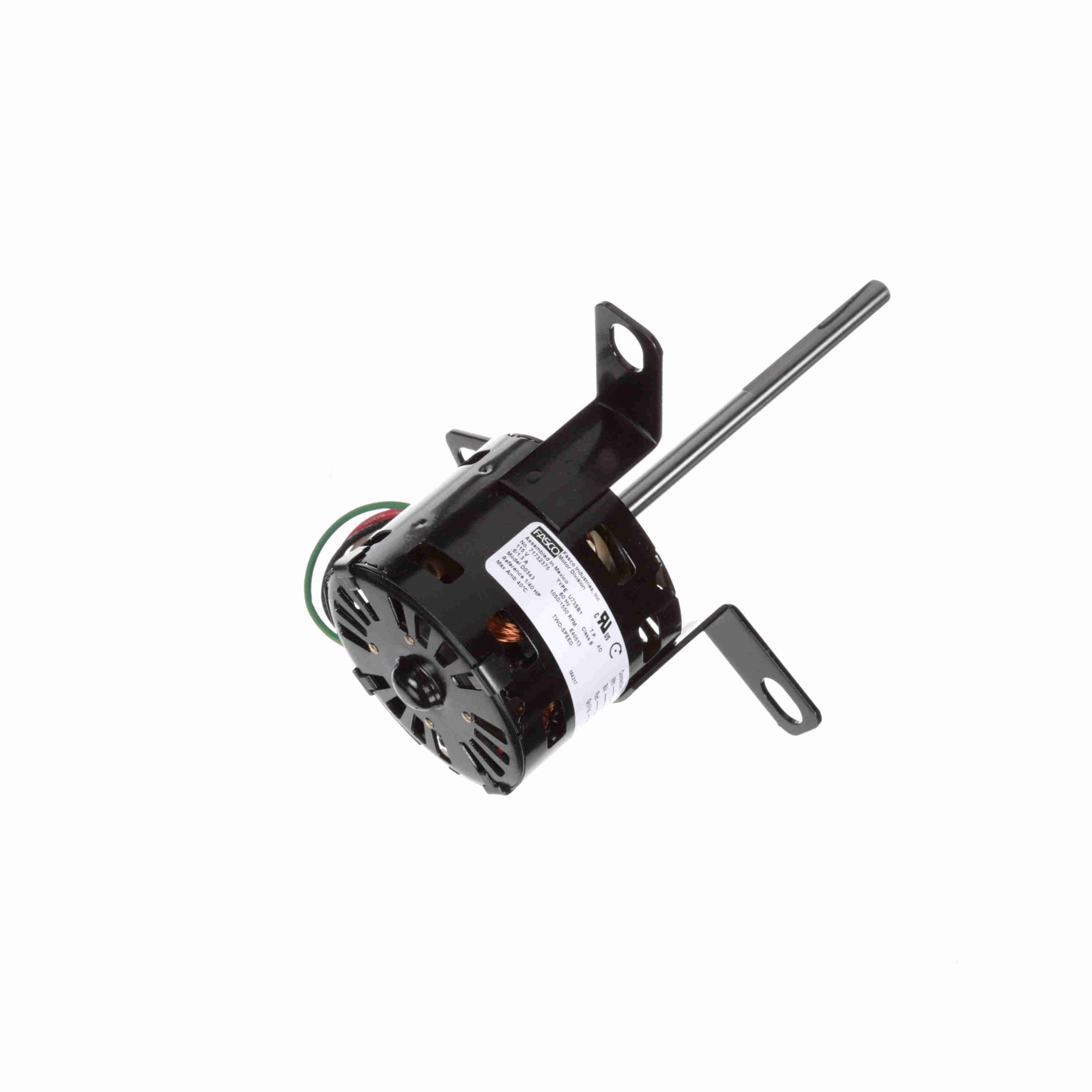

D0343 – Fasco 1/40 HP OEM Replacement Motor, 1050/1550 RPM, 2 Speed, 115 Volts, 3.3″ Diameter, OAO – D0343
D0343 Fasco HVAC/R OEM Replacement Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
815585027287 |
Weight: |
4 LB |
| Packaged Length: |
11.38 IN |
Packaged Width: |
8.25 IN |
| Packaged Height: |
7.75 IN |
Nameplate Specifications
| Output HP: |
1/40 Hp |
Output KW: |
0.02 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
0.60/1.30 A |
Speed: |
1050/1550 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
3.3 |
Enclosure: |
Open Air Over |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
N |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Shaded Pole |
Starting Method: |
Across The Line |
| Poles: |
4/6 |
Rotation: |
Clockwise Shaft End |
| Mounting: |
Lug |
Drive End Bearing: |
Sleeve |
| Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Steel |
| Shaft Type: |
Flat |
Overall Length: |
8.57 in |
| Frame Length: |
2.79 in |
Shaft Diameter: |
0.375 in |
| Shaft Extension: |
5.50 in |
