Description

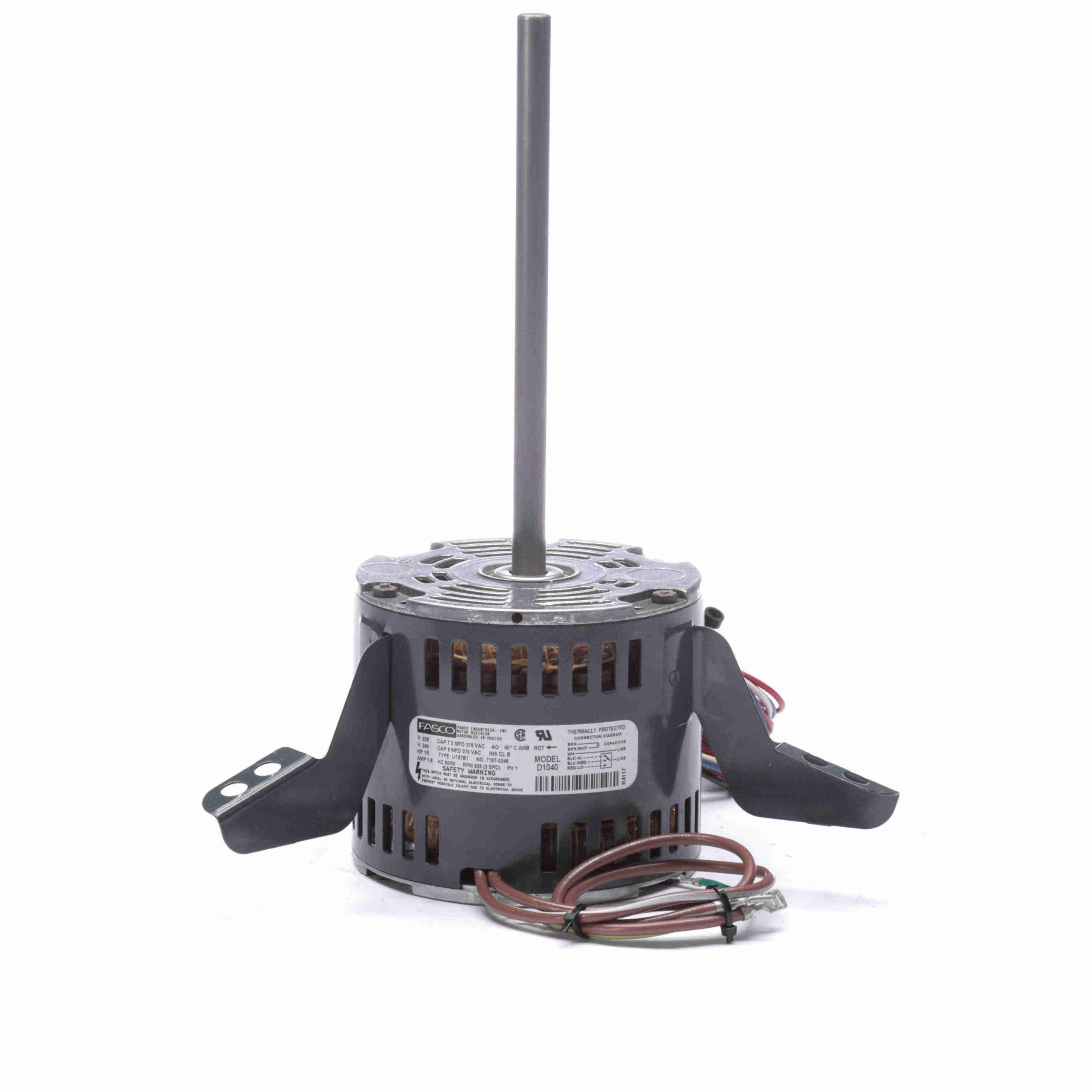

D1040 – Fasco 1/5 HP OEM Replacement Motor, 925 RPM, 3 Speed, 208/240 Volts, 42 Frame, OAO – D1040
D1040 Fasco HVAC/R OEM Replacement Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
815585027652 |
Weight: |
14 LB |
| Packaged Length: |
11 IN |
Packaged Width: |
11 IN |
| Packaged Height: |
18 IN |
Nameplate Specifications
| Output HP: |
1/5 Hp |
Output KW: |
0.15 kW |
| Frequency: |
60 Hz |
Voltage: |
208/240 V |
| Current: |
1.6 A |
Speed: |
925 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
42 |
Enclosure: |
Open Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Clockwise Shaft End |
| Mounting: |
Lug |
Drive End Bearing: |
Sleeve |
| Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Flat |
Overall Length: |
12.43 in |
| Frame Length: |
3.88 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
8.1 in |
