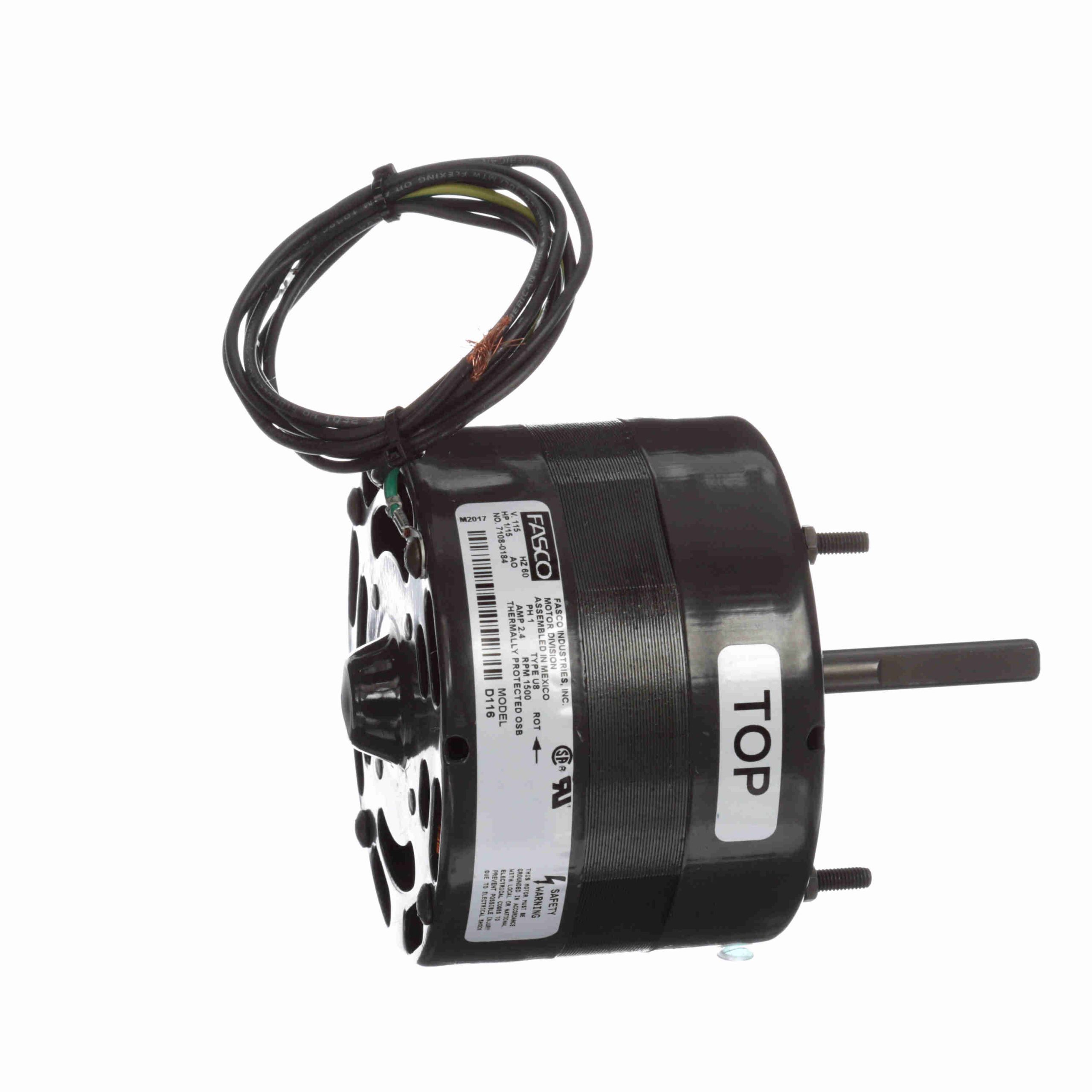

D116 – Fasco 1/15 HP Fan & Blower Motor, 1500 RPM, 115 Volts, 4.4″ Diameter, OAO – D116
D116 Fasco Self Cooled Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
818508022215 |
Weight: |
5 LB |
| Packaged Length: |
4.38 IN |
Packaged Width: |
4.38 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
1/15 Hp |
Output KW: |
0.05 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
2.4 A |
Speed: |
1500 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
A |
| Frame: |
4.4 |
Enclosure: |
Open Air Over |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Shaded Pole |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Clockwise Shaft End |
| Mounting: |
Extended Studs |
Drive End Bearing: |
Sleeve |
| Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Na |
| Shaft Type: |
Flat |
Overall Length: |
5.97 in |
| Shaft Diameter: |
0.375 in |
Shaft Extension: |
2.45 in |
