Description

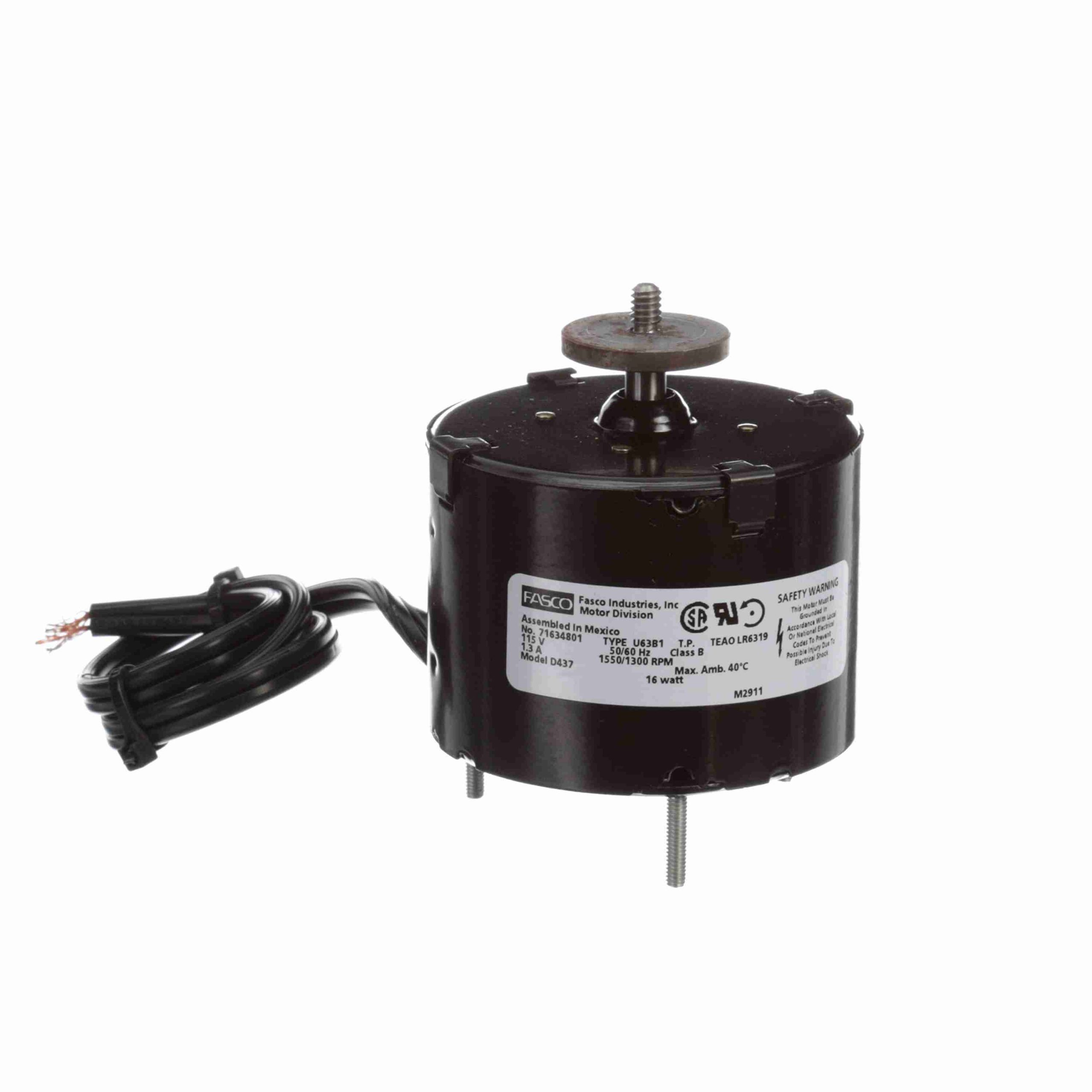

D437 – Fasco 16 WATT HP Refrigeration Motor, 1550/1300 RPM, 115 Volts, 3.3″ Diameter, TEAO – D437
D437 Fasco Refrigeration Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
815585029977 |
Weight: |
3 LB |
| Packaged Length: |
8 IN |
Packaged Width: |
4.5 IN |
| Packaged Height: |
4.5 IN |
Nameplate Specifications
| Output Watts: |
16 W |
Frequency: |
50 Hz |
| Voltage: |
115 V |
Current: |
1.30 A |
| Speed: |
1550/1300 rpm |
Service Factor: |
1 |
| Phase: |
1 |
Duty: |
Continuous Air Over |
| Insulation Class: |
B |
Frame: |
3.3 |
| Enclosure: |
Totally Enclosed Air Over |
Thermal Protection: |
Thermally Protected |
| Ambient Temperature: |
40 °C |
UL: |
Recognized |
| CSA: |
Y |
CE: |
N |
Technical Specifications
| Electrical Type: |
Shaded Pole |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise Shaft End |
| Mounting: |
Extended Studs |
Drive End Bearing: |
Sleeve |
| Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Threaded |
Frame Length: |
2.48 in |
| Shaft Diameter: |
0.312 in |
Shaft Extension: |
1.12 in |
Fasco Motors
Regal Beloit
