Description

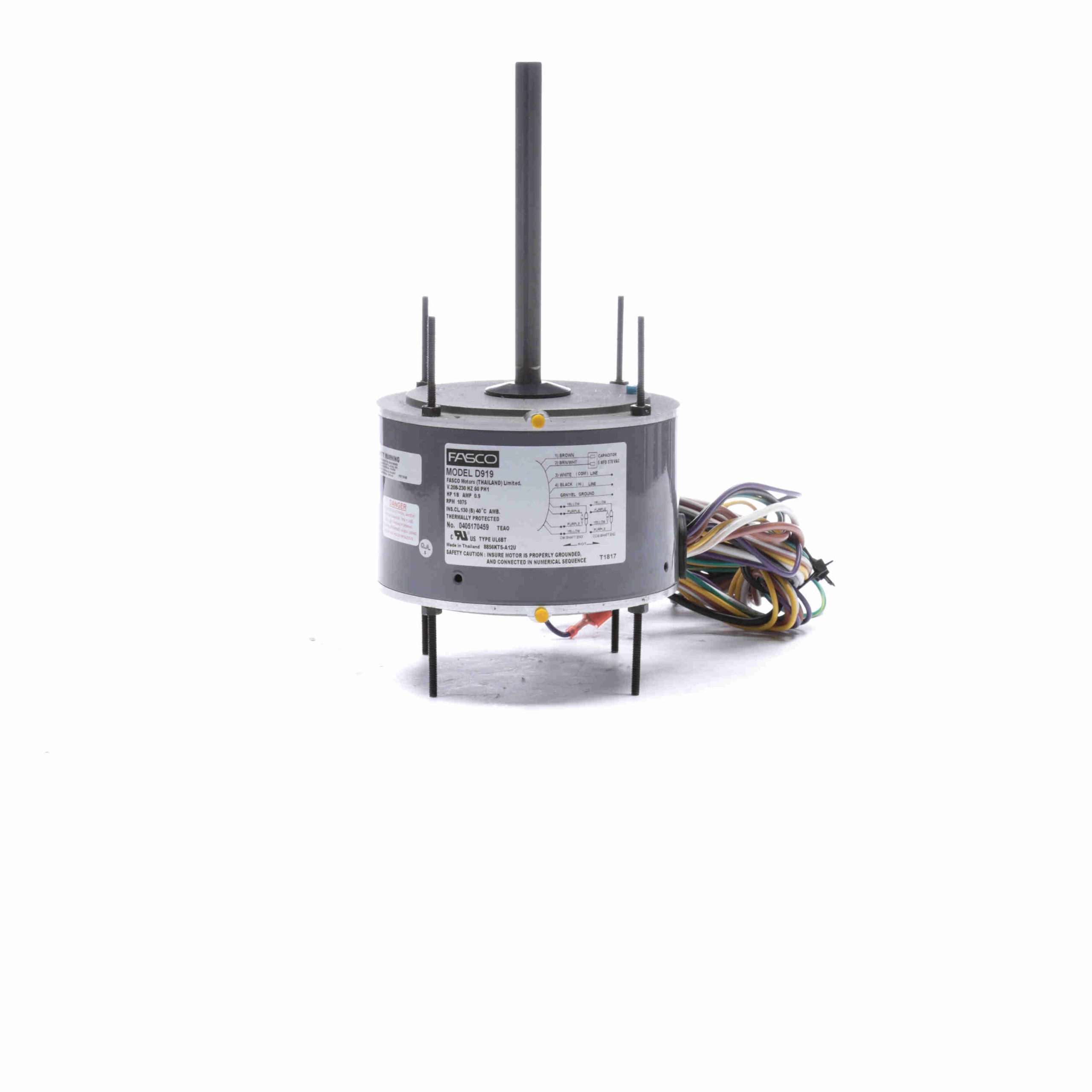

D919 – Fasco 1/8 HP Condenser Fan Motor, 1075 RPM, 208-230 Volts, 48 Frame, TEAO – D919
D919 Fasco Condenser Fans Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
818508020587 |
Weight: |
11 LB |
| Packaged Length: |
5.63 IN |
Packaged Width: |
5.63 IN |
| Packaged Height: |
5.63 IN |
Nameplate Specifications
| Output HP: |
1/8 Hp |
Output KW: |
0.10 kW |
| Voltage: |
208-230 V |
Current: |
0.9 A |
| Speed: |
1075 rpm |
Service Factor: |
1 |
| Phase: |
1 |
Duty: |
Continuous |
| Insulation Class: |
B |
Frame: |
48 |
| Enclosure: |
Totally Enclosed Air Over |
Thermal Protection: |
Automatic |
| Ambient Temperature: |
40 °C |
UL: |
Recognized |
| CSA: |
Y |
CE: |
N |
Technical Specifications
| Electrical Type: |
AC |
Starting Method: |
PSC |
| Poles: |
6 |
Rotation: |
Reversible |
| Mounting: |
Extended Studs |
Motor Orientation: |
Single Shaft Horizontal/Bi-Direction |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Double Flat |
| Frame Length: |
3.20 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
6 in |
Assembly/Box Mounting: |
Tie rods |
