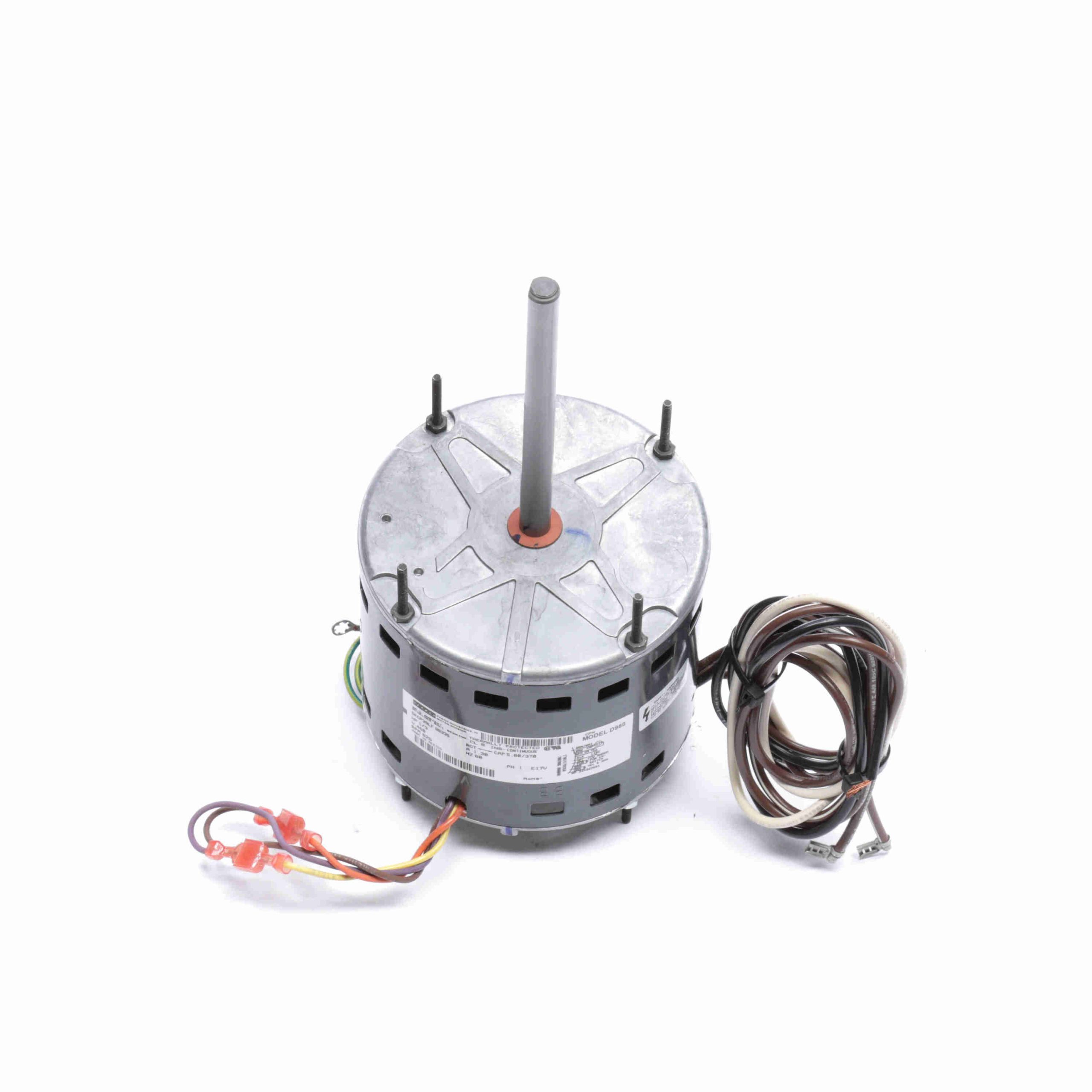

D961 – Fasco 1/2 HP Condenser Fan Motor, 825 RPM, 460 Volts, 48 Frame, semi Enclosed – D961

D961 – Fasco 1/2 HP Condenser Fan Motor, 825 RPM, 460 Volts, 48 Frame, semi Enclosed – D961

D961 Fasco Condenser Fans Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Condenser Fan Motor
  • 5.6″ Diameter – 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Lead End End-Frame and Shell, Enclosed Shaft End End-Frame, Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2″ Diameter Shaft with Double Flat
  • 37″ Leads
  • Extended Studs Shaft End and Lead End, Belly Band

Fasco Motors
Regal Beloit

Description

D961 – Fasco 1/2 HP Condenser Fan Motor, 825 RPM, 460 Volts, 48 Frame, semi Enclosed – D961

D961 Fasco Condenser Fans Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 818508020808 Weight: 17 LB
Packaged Length: 15 IN Packaged Width: 6.04 IN
Packaged Height: 6.02 IN

Nameplate Specifications

Output HP: 1/2 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 460 V
Current: 1.90 A Speed: 825 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Air Over Insulation Class: B
Frame: 48 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 60 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Poles: 8
Rotation: Reversible Mounting: Extended Studs
Motor Orientation: Any Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Double Flat Overall Length: 11.81 in
Frame Length: 5.07 in Shaft Diameter: 0.500 in
Shaft Extension: 6.00 in Thru-bolts Extension: 1.13 in
