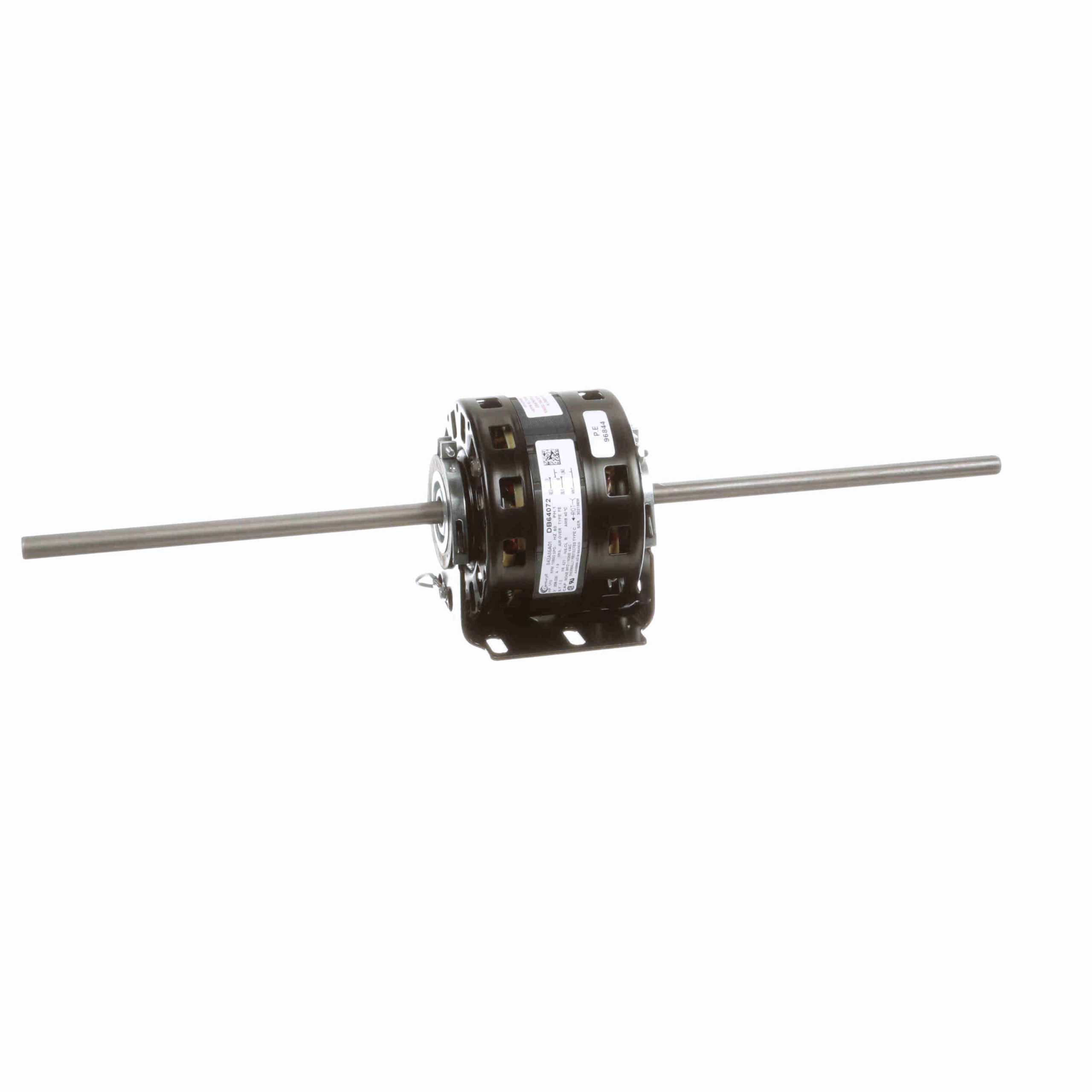

DB64072 – Century 1/10 HP Fan Coil / Room Air Conditioner Motor, 1050 RPM, 2 Speed, 208-230 Volts, 42 Frame, OAO – DB64072

DB64072 – Century 1/10 HP Fan Coil / Room Air Conditioner Motor, 1050 RPM, 2 Speed, 208-230 Volts, 42 Frame, OAO – DB64072

DB64072 Century Fan Coil/Room Air Conditioner Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Fan Coil – Dual Wheel Blower Motor
  • 5″ Diameter – 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Double Shaft with Double Flats
  • 38.5″ Leads with Quick Connect Terminals
  • Resilient Base

Century Motors
Regal Beloit

Description

DB64072 – Century 1/10 HP Fan Coil / Room Air Conditioner Motor, 1050 RPM, 2 Speed, 208-230 Volts, 42 Frame, OAO – DB64072

DB64072 Century Fan Coil/Room Air Conditioner Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674018243 Weight: 11 LB
Packaged Length: 22.87 IN Packaged Width: 6.81 IN
Packaged Height: 6.81 IN

Nameplate Specifications

Output HP: 1/10 Hp Output KW: 0.07 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 1.9 A Speed: 1050 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 42Y Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Lead End
Mounting: Resilient Base Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 22.00 in Shaft Diameter: 0.500 in
Shaft Extension: 9.3 X.5X9.3 in
