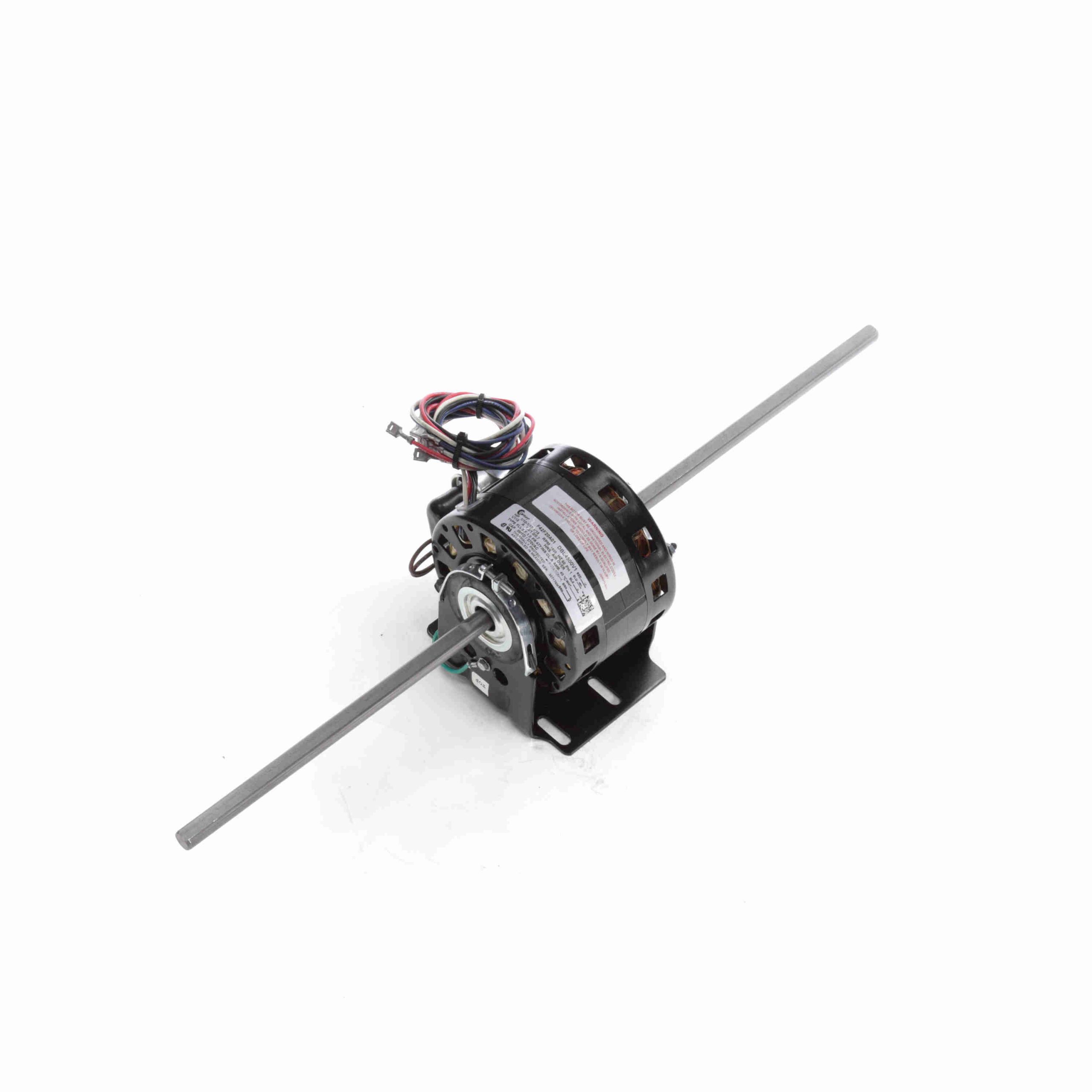

DBL4500V1 – Century 1/10-1/12-1/15 HP Fan Coil / Room Air Conditioner Motor, 1625 RPM, 3 Speed, 115 Volts, 42 Frame, OAO – DBL4500V1

DBL4500V1 – Century 1/10-1/12-1/15 HP Fan Coil / Room Air Conditioner Motor, 1625 RPM, 3 Speed, 115 Volts, 42 Frame, OAO – DBL4500V1

DBL4500V1 Century Fan Coil/Room Air Conditioner Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Fan Coil – Dual Wheel Blower Motor
  • 5″ Diameter – 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Double Shaft with Double Flats
  • 38.5″ Leads with Quick Connect Terminals
  • Resilient Base

Century Motors
Regal Beloit

Description

DBL4500V1 – Century 1/10-1/12-1/15 HP Fan Coil / Room Air Conditioner Motor, 1625 RPM, 3 Speed, 115 Volts, 42 Frame, OAO – DBL4500V1

DBL4500V1 Century Fan Coil/Room Air Conditioner Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674018342 Weight: 15 LB
Packaged Length: 25.87 IN Packaged Width: 8.81 IN
Packaged Height: 8.81 IN

Nameplate Specifications

Output HP: 1/10-1/12-1/15 Hp Output KW: 0.07 kW
Frequency: 60 Hz Voltage: 115 V
Current: 1.3/1.0/0.7 A Speed: 1625 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: A
Frame: 42Y Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Lead End
Mounting: Resilient Base Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 22.00 in Shaft Diameter: 0.500 in
Shaft Extension: 9.3X.5X9.3 in
