Description

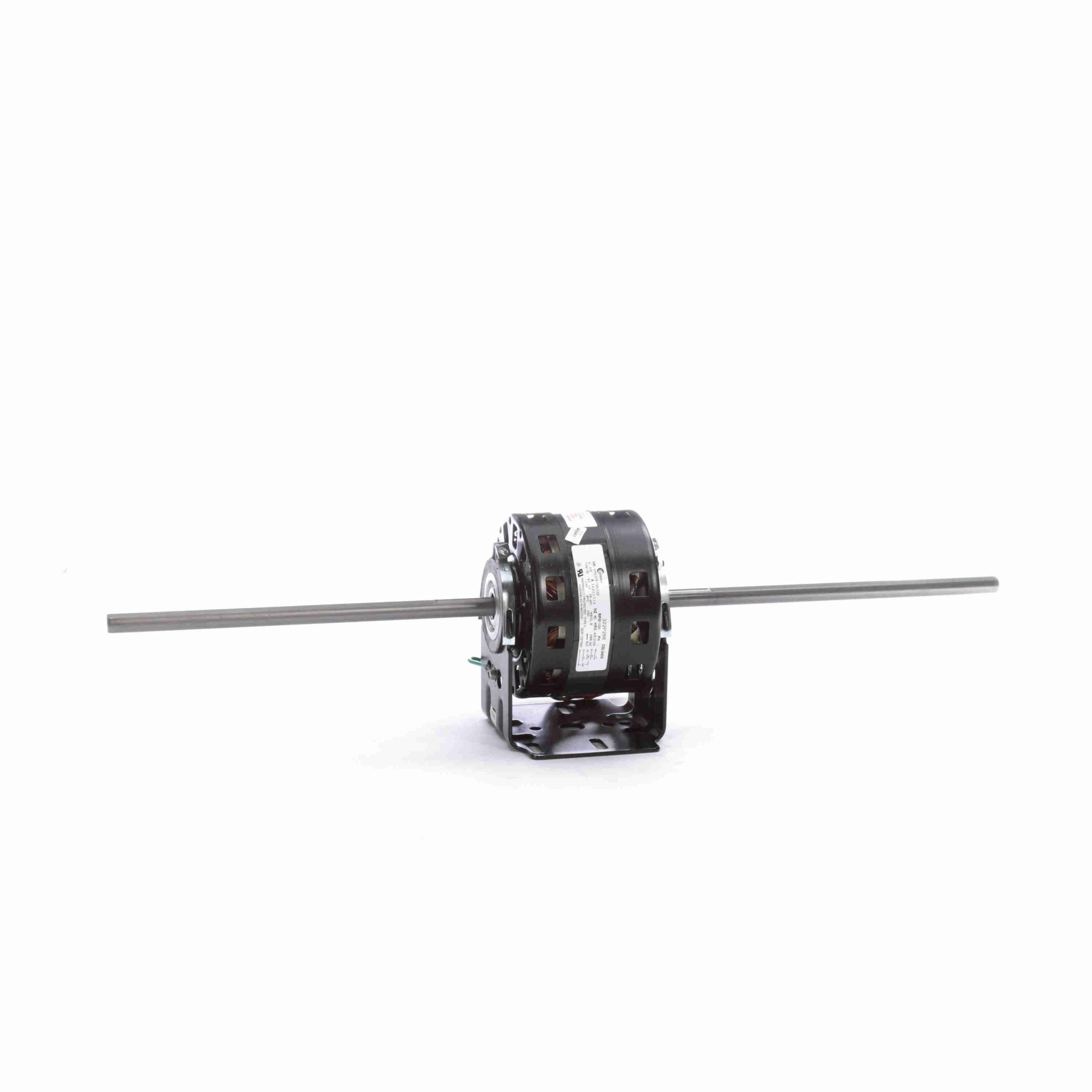

DBL6406 – Century 1/10-1/15-1/20-1/25 HP Fan Coil / Room Air Conditioner Motor, 1050 RPM, 4 Speed, 115 Volts, 42 Frame, OAO – DBL6406
DBL6406 Century Fan Coil/Room Air Conditioner Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674018359 |
Weight: |
11 LB |
| Packaged Length: |
26.87 IN |
Packaged Width: |
6.81 IN |
| Packaged Height: |
6.81 IN |
Nameplate Specifications
| Output HP: |
1/10,1/15,1/20,1/25 Hp |
Output KW: |
0.07 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
3.4,2.0,1.7,1.5 A |
Speed: |
1050 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
42Y |
Enclosure: |
Open Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Shaded Pole |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Counterclockwise Lead End |
| Mounting: |
Resilient Base |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Flat |
| Overall Length: |
24.00 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
10.3X.5X10.3 in |
Century Motors
Regal Beloit
