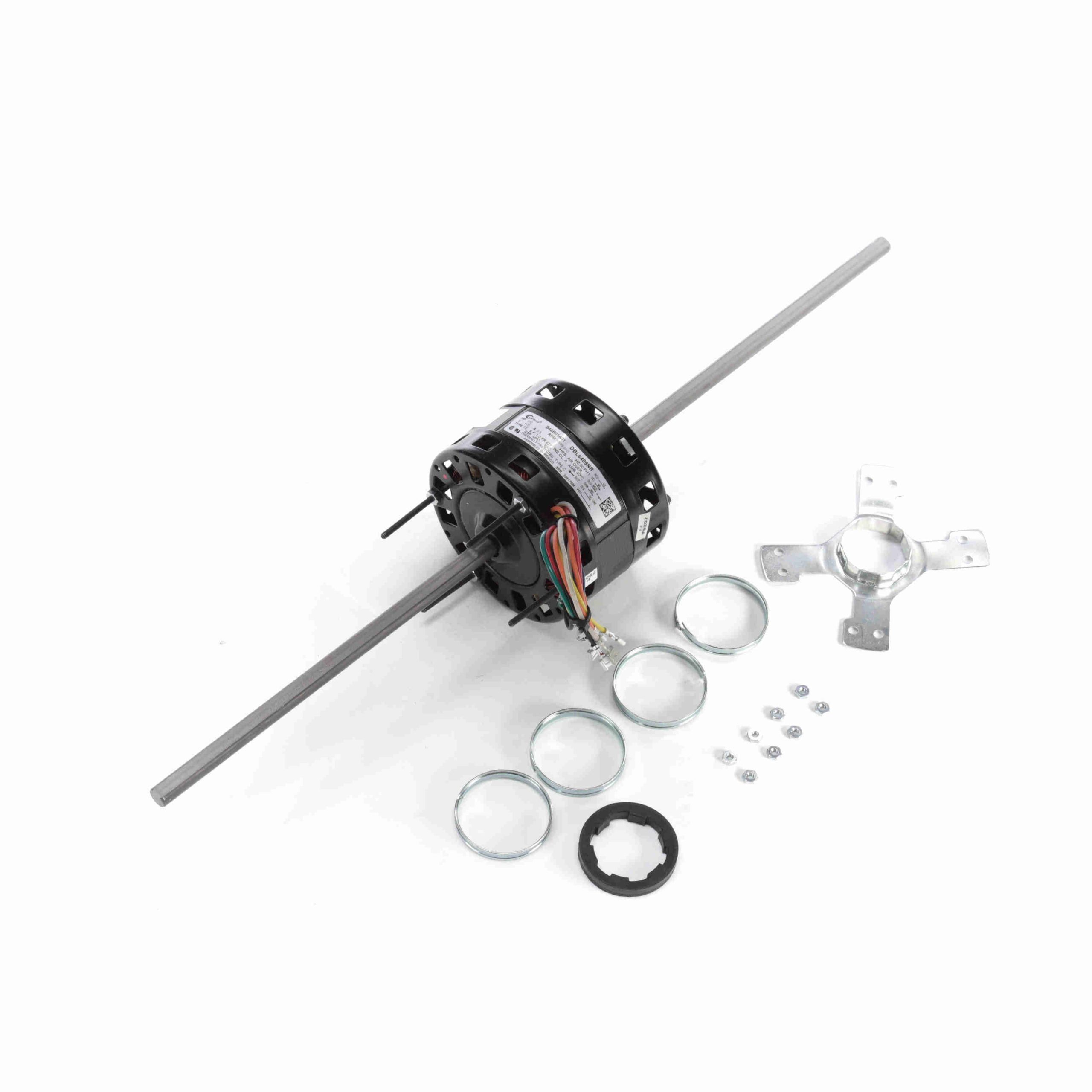

DBL6409NB – Century 1/10-1/15-1/20-1/25-1/30 HP Fan Coil / Room Air Conditioner Motor, 1050 RPM, 5 Speed, 115 Volts, 42 Frame, OAO – DBL6409NB

DBL6409NB – Century 1/10-1/15-1/20-1/25-1/30 HP Fan Coil / Room Air Conditioner Motor, 1050 RPM, 5 Speed, 115 Volts, 42 Frame, OAO – DBL6409NB

DBL6409NB Century Fan Coil/Room Air Conditioner Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Fan Coil – Dual Wheel Blower Motor
  • 5″ Diameter – 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Double Shaft with Double Flats
  • 38.5″ Leads with Quick Connect Terminals
  • Length Adapter Kit to Allow for Resilient Base Mounting in Existing Base

Century Motors
Regal Beloit

Description

DBL6409NB – Century 1/10-1/15-1/20-1/25-1/30 HP Fan Coil / Room Air Conditioner Motor, 1050 RPM, 5 Speed, 115 Volts, 42 Frame, OAO – DBL6409NB

DBL6409NB Century Fan Coil/Room Air Conditioner Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674018380 Weight: 12 LB
Packaged Length: 26.87 IN Packaged Width: 6.81 IN
Packaged Height: 6.81 IN

Nameplate Specifications

Output HP: 1/10,1/15,1/20,1/25,1/30 Hp Output KW: 0.07 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.5,2.8,2.2,1.9,1.6 A Speed: 1050 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 42Y Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Lead End
Mounting: Resilient Ring/Extended Studs Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 24.00 in Shaft Diameter: 0.500 in
Shaft Extension: 10.2X.5X10.5 in
