Description

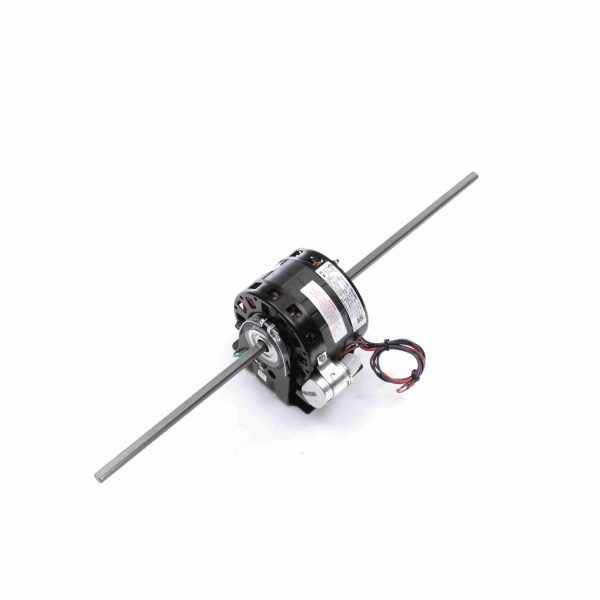

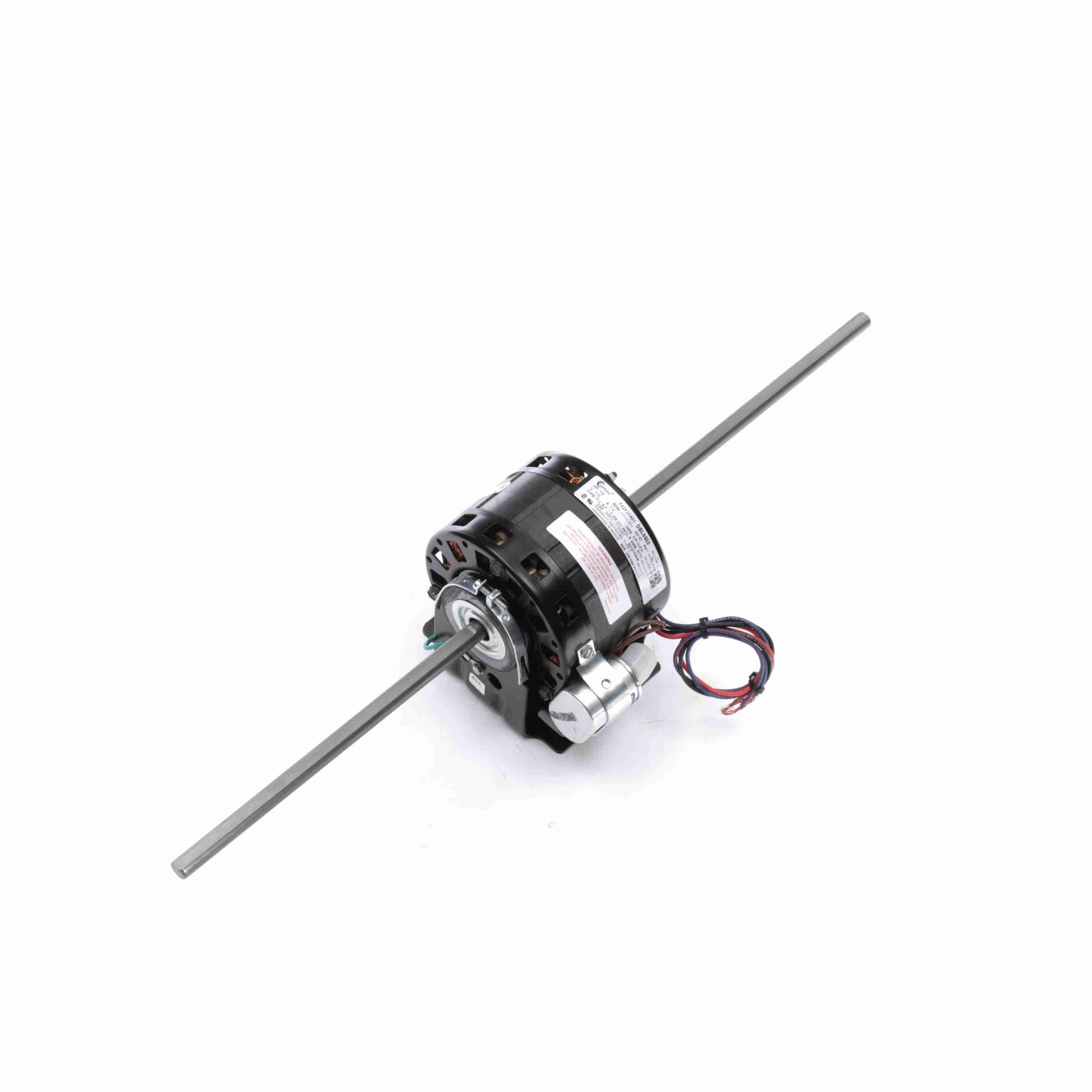

DBL6503 – Century 1/8 HP Fan Coil / Room Air Conditioner Motor, 1075 RPM, 3 Speed, 115 Volts, 42 Frame, OAO – DBL6503
DBL6503 Century Fan Coil/Room Air Conditioner Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674018410 |
Weight: |
14 LB |
| Packaged Length: |
25.87 IN |
Packaged Width: |
8.81 IN |
| Packaged Height: |
8.81 IN |
Nameplate Specifications
| Output HP: |
1/8 Hp |
Output KW: |
0.10 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
2.4 A |
Speed: |
1075 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
42Y |
Enclosure: |
Open Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Counterclockwise Lead End |
| Mounting: |
Resilient Base |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Na |
Shaft Type: |
Flat |
| Overall Length: |
23.17 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
9.8X.5X9.8 in |
Century Motors
Regal Beloit
